Product Description

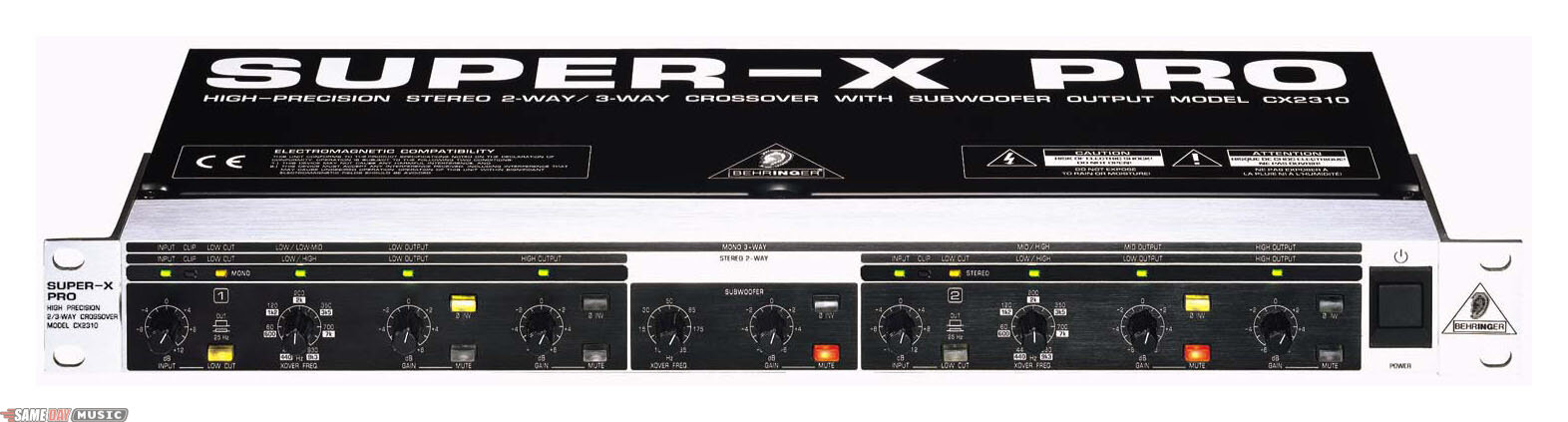

Like the CX3400, the CX2310 offers absolute precision, state-of-the-art circuitry, professional components, ultra low-noise op amps, fully balanced in and outputs, and intuitive operation. In addition to full-fledged 2-way stereo/3-way mono operation, the CX2310 features a separately adjustable subwoofer output, giving you an extra low-frequency band.

Features
24 dB/octave, state-variable Linkwitz-Riley filters for precise frequency separation

Absolutely flat summed amplitude response, zero phase difference

Individual output level and mute per band

Phase reverse switch per output

Switchable 25 Hz subsonic filter on each input for low-frequency driver protection

"Sum" function provides low-level mono output for subwoofer operation

Shielded toroidal mains transformer for minimal noise interference

Technical Description

Inputs Connectors: XLR

Type: Electronically servo-bal;anced, HF Filtered

Impedance: Balanced >50 kOhm, unbalanced > 25k Ohm

Max. Input Level: +22 dBu typical, balanced or unbalanced

CMRR: >40 dB, typical >55 dB @ 1 kHz

Outputs Connectors: XLR

Type: Electronically servo-bal;anced, HF Filtered

Impedance: Balanced >60 Ohm, unbalanced > 30 Ohm

Max. Output Level: +20 dBm balanced/unbalanced

Performance Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB

Frequency Response: <5 Hz to >60 kHz, +0/-3 dB

S/N Ratio (Ref.: +4 dBu, 20 Hz to 20 kHz, unweighted): 91 - 95 dB

Crossover Filter Type: Linkwitz-Riley, 24 dB per octave, state-variable
Mono Mode Frequencies: Low/High: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Low/Med: 44 to 930 Hz (x10=440Hz to 9.3 kHz)
Mid/High: 440Hz to 9.3 kHz
Stereo Mode Frequencies: Low/High to: 44 to 930 Hz (x10=440Hz to 9.3 kHz)

Dimensions: 1-3/4 x 19 x 8-1/2 in. (44.5 x 482.6 x 217mm)
Weight: Approx 6.6 lbs. (3 kg)

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

Catalog Description

2-way stereo/3-way mono crossover@24dB/octave filters@Channel output controls with phase reverse@Adjustable subwoofer output@XLR I/O
