Product Description

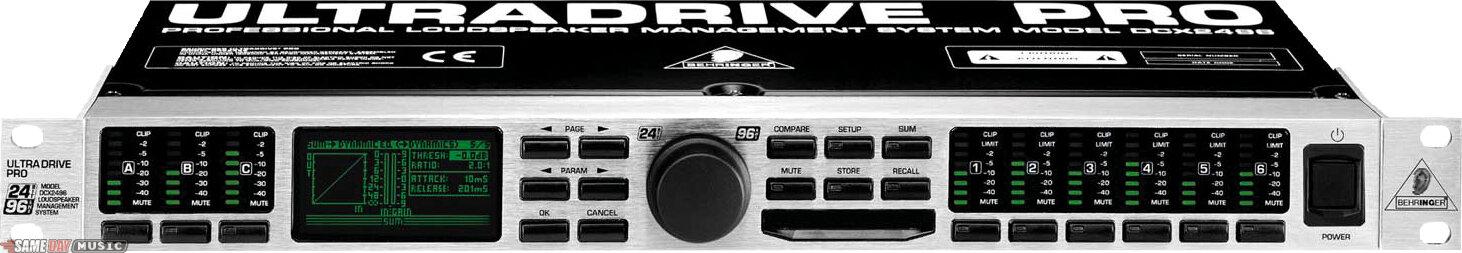

The Ultra-Drive Pro DCX2496 is the ultimate digital loudspeaker management system with an unheard-of audio quality and feature list. It is an indispensable tool for the precise set-up of multiple loudspeaker systems or arrays. Installation contractors, live-sound engineers, cinemas/discotheques/concert hall operators will quickly learn to love this model's rich features. Signals can be split in various ways to assure precise sound by using the optimal frequency range of each loudspeaker.

Features:
3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility

High-end AKM 24-bit/96 kHz A/D and D/A converters for ultimate signal integrity and wide dynamic range (113 dB)

Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz

Precise dynamic EQs for level-dependent equalization and extremely musical parametric EQs, selectable for all inputs and outputs

Several types of EQs (LP/BP/HP) for each input and output

"Zero"-attack limiters on all output channels for optimal speaker protection

4 different mono and stereo output operating modes

Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave

Adjustable delays for all inputs and outputs-allow manual or automatic correction for room temperature, phase and arrival time differences

Additional sum signal derived from the A/B/C inputs offers a 4th internal input signal

Future-proof Ultra-Drive Pro software enables single or multi remote control via PC through RS-232 and RS-485 interfaces

Link option via RS-485 network interface enables cascading of several Ultra-Drive Pros

60 user-defined internal presets storable via PC software or on PCMCIA card

Open architecture assures easy software updates

Ultra low-noise 4580 operational amplifiers for outstanding audio performance

Servo-balanced, gold-plated XLR connectors for all inputs and outputs

High-quality components and exceptionally rugged construction for long life and durability

Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption

Manufactured under ISO9000 certified management system

Start with its 3 analog inputs (one suitable as a digital stereo AES/EBU input) and 6 analog outputs. You get maximum flexibility in just one rack space. Superb high-end AKM 24-bit/96 kHz A/D and D/A converters give you ultimate signal integrity and an extreme dynamic range of 113 dB. Easy connection of external digital signals with sampling rates from 32 to 96 kHz is a breeze with the integrated sample rate converter. There are precise dynamic EQs for level-dependent equalization and extremely musical parametric EQs, selectable for all inputs and outputs, and 'Zero'-attack limiters on all output channels guarantee optimal signal and loudspeaker protection.

You also get 4 different mono and stereo output operating modes, all with individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave. The delays for all inputs and outputs are adjustable. This allows you to manually or automatically correct for room temperature, phase and arrival time differences. An additional sum signal is easily derived from the A/B/C inputs.

Now that remote control is such a hot topic, you'll be glad that the future-proof Ultra-Drive Pro software enables single or multi remote control via PC through RS-232 and RS-485 interfaces. And the link option via RS-485 network interface enables cascading of several Ultra-Drive Pros. A Windows-based editing software is available for download free of charge. No matter what the future brings, its open architecture assures easy software updates. A PCMCIA slot allows you to store all your settings and recall them anytime you change the location -- virtually taking your Ultra-Drive Pro with you.

But don't be fooled by the Ultra-Drive Pro's sleek design. Its high-power Sharc-DSPs and ultra-high resolution Crystal/AKM A/D & D/A converter provide outstanding audio performance -- and the servo-balanced, gold-plated XLR connectors for all inputs and outputs guarantee excellent connectivity for the years to come.

Technical Description

***The owners manual states that an RS232 cable is included. We confirmed with Behringer that this is a typo. No such cable is included.

Catalog Description

24-bit, 96kHz crossover with 4 mono and stereo modes@EQ, filtering, limiting, and delay on board@XLR I/O
