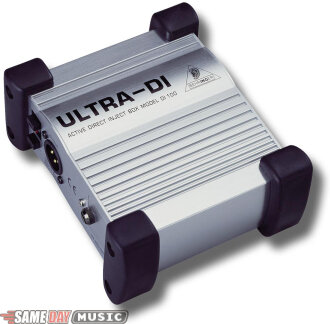

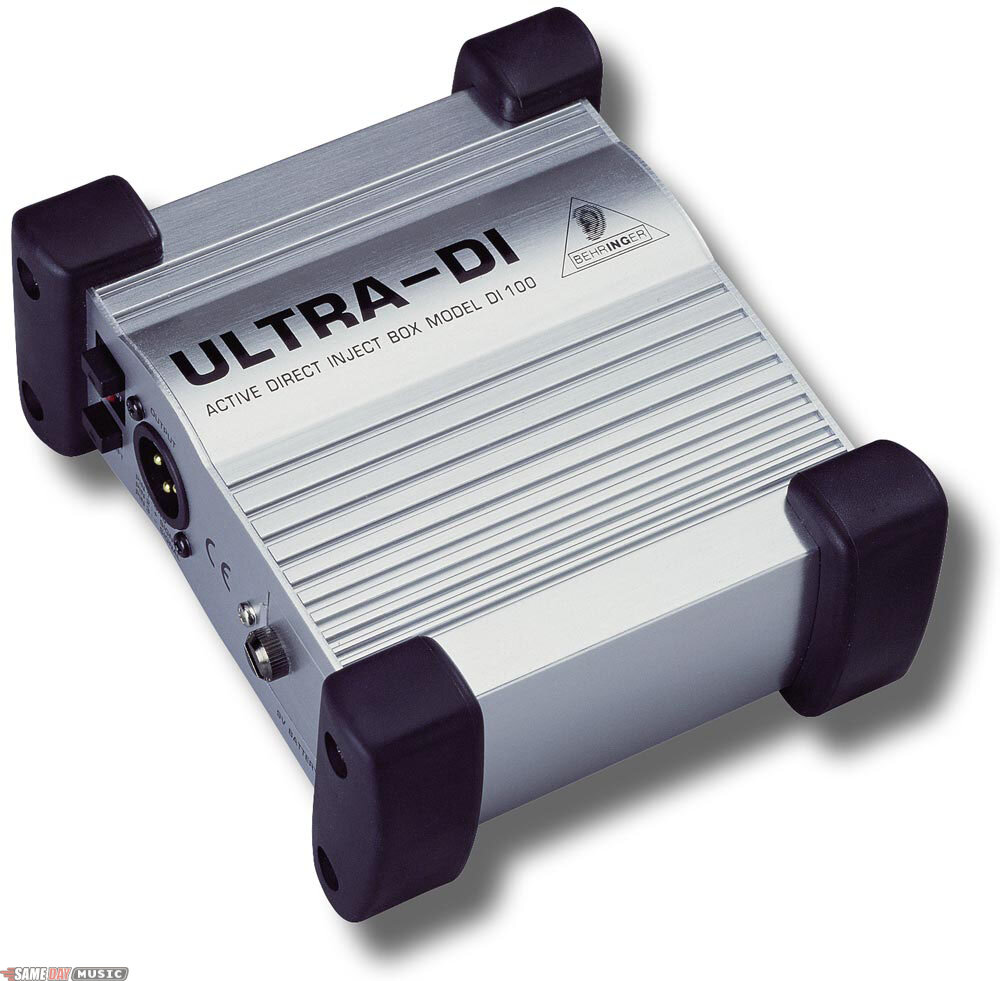

Behringer DI100 Active Direct Box

Professional, multi-functional active DI box for all studio and stage applications. Super-rugged metal encasing with sturdy oversized rubber corners for increased reliability.

Product rated 7.9 out of 10 (26 ratings)::: ::: ::: ::: ::: ::: ::: :..  .  Read 5 Full Reviews >>

 New $40

Seen a lower price?

Guaranteed Same Day Will Ship Friday
  • Ground: $4
  • 2 Day: $8
  • Overnight: $26

60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

We DO NOT COLLECT TAX except on orders shipped to New Jersey.

RECOMMENDED ACCESSORIES:

preview image

MORE RESOURCES:

Product Documents:

PRODUCT DESCRIPTION

Active Power Without Limits
Contrary to passive DI boxes, the active Ultra-DI DI100 sets no limits regarding varying or mismatched impedance. How The signal is buffered by a high-quality amplifier. What does this mean to you? You get a clean, pure, powerful signal, which is immune to interference and therefore free of noise and hum - even with extremely long cables. The renowned Behringer OT-1 transformer ensures absolutely linear frequency response and ultra-low distortion, especially in the low end. The audio specifications speak for themselves: linear frequency response from 10 Hz to 50 kHz, S/N ratio of -102 dBu, and THD <0.005% at 1 kHz.

Your Ideas and Behringer's Energy: An Unbeatable Team
The Ultra-DI can be powered by your console's phantom power or an internal 9-V battery - the DI100 automatically switches between the two. The massive metal encasing and four rugged, oversized rubber corners keep it safe and reliable even under the toughest touring conditions. The rubber corners also allow you to stack several DI100's or place them on top of other gear without running the risk of ground loops. As you can see, Behringer has thought of everything.

Ultra-Di Di100: The Ultimate, Active Solution to All Your Di Problems!

Features
Professional, multi-functional active DI box for all studio and stage applications

Behringer OT-1 transformer for ultra-linear frequency response

Super-rugged metal encasing with sturdy oversized rubber corners for increased reliability

Internal battery automatically shut off when phantom power is connected

Ultra-low noise operational amplifier for outstanding audio quality

Gold-plated XLR and 1/4" input/output jacks (XLR balanced)

Direct connection of amplifier outputs with up to 3,000 Watts

Switchable input attenuation allows input levels of up to +50 dBu

Ground Lift switch isolates grounding circuit for hum elimination

Manufactured under ISO9000 certified management system

TECHNICAL DESCRIPTION

Frequency Response: 10 Hz to 93 kHz

Noise Level: -110 dBu

THD+N @ 1 kHz / 0 dBu: < 0,005 %

Input Impedance: >250 kOhm

Load Impedance: >600 Ohm

Inputs: 1/4" jack unbal. In/ Link Out
XLR unbalanced In

Output: XLR balanced Out

Maximum Input Level: +10/+30/+50 dBu

Phantom Power: 18 V DC to 48 V DC

Battery: 9 V blockcell 6LR91

Dimensions: 5.91 x 5.12 x 2.36 (150 x 130 x 60mm)

Weight: approximately 650 g

CATALOG DESCRIPTION

Rugged, versatile active DI box@Runs on phantom power or 9V battery@Ground lift
