Product Description

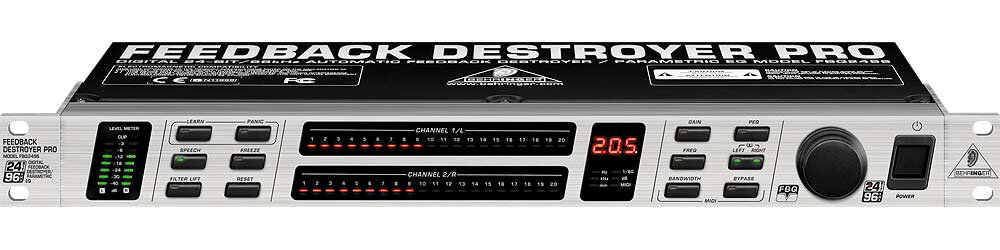

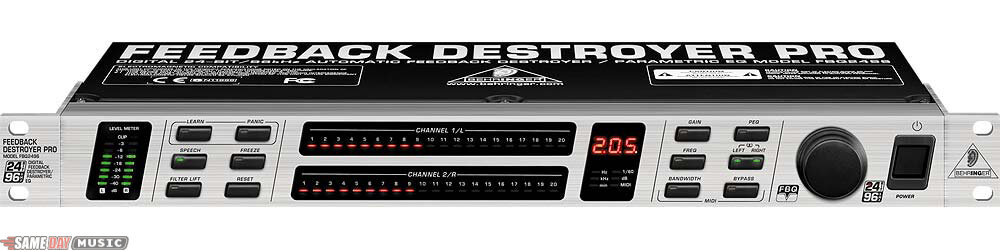

The FBQ2496 is the fastest (>0.2 sec.) and the only 96kHz feedback suppressor on the market. Using an ultra-fast feedback detection algorithm, it automatically and 'intelligently' locates up to 20 feedback frequencies per channel and sets extremely narrow notch filters to 'destroy' them, leaving the remainder of the signal virtually untouched. Easy does it: with the 'Set-and-Forget' default setting plus the Panic button, your Feedback Destroyer can be up and running in no time! The auto mode continuously monitors the mix, resetting programmed filters automatically, while the manual mode allows individual setting of up to 40 fully parametric filters with frequency, bandwidth and gain adjustment. Open MIDI architecture means that future software updates and flexible communication with digital equipment are a no-brainer. With its various modes you can master just about any live sound situation or use it as a creative sound-shaping tool.

Features:
Automatically and 'intelligently' locates and destroys up to 20 frequencies per channel

Ultra-fast feedback detection (>0.2 sec) due to proprietary FFT signal analysis

Ultra-narrow notch-filters (up to 1/60th octave) for very effective feedback suppression, while keeping highest sonic quality

'Set-and-forget' default setting plus Panic button enable immediate and super-easy Feedback Destroyer performance

Auto mode continuously monitors the mix, resetting programmed filters automatically

Single-shot mode automatically detects and destroys feedback and locks the filter until you reset it manually

Manual mode allows individual setting of up to 40 fully parametric filters with frequency, bandwidth and gain adjustment

Ultra-high resolution 24-bit/96 kHz A/D and D/A converter powered by a 32-bit DSP for ultimate audio performance

Open MIDI architecture for future software updates and flexible communication with digital equipment

Balanced inputs and servo-balanced outputs with gold-plated XLR and 1/4' TRS connectors

Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy savings

High-quality components and exceptionally rugged construction ensure long life

Conceived and designed by Behringer Germany

Technical Description

Audio Inputs

Connections: XLR and 1/4 in. TRS stereo connector
Type: Electronically balanced input
Input impedance: approx. 20 kOhms balanced
Nominal Input Level: -10 dbV/ +4 dBu (adjustable)
Max. Input Signal Level: +20 dBu at +4 dBu nominal level, +6 dbV at -10 dBV nominal level, typically -40 dB

Audio Outputs

Connections: XLR and 1/4 in. TRS stereo connector
Type: Balanced
Output Impedance: approx. 200 Ohms balanced
Max. Output Level: +20 dBu at +4 dBu nominal level, +6 dBV at -10dBV nominal level

Bypass

Type: Relay, hard bypass in case of power outage

System information

Frequency Response: <10 Hz to 44 kHz
Dynamic Range: 107 dB
THD: 0.007 % typically at +4 dBu, 1 kHz, amplification 1
Crosstalk: <-100 dB @ 1 kHz

MIDI Interface

Type: 5-pole DIN connectors IN/OUT/THRU

Digital Processing

Converter: 24 Bit / 96 kHz
Sample Rate: 96 kHz

Parametric Equalizer (PEQ)

Type: Max. 20 independent, fully parametric filters per channel
Frequency Range: 20 Hz to 20 kHz
Bandwidth: 1/60th to 10 octaves
Possible Value Range: +15 to -36 dB

Feedback Destroyer (FBQ)

Type: Digital signal analysis for feedback recognition purposes
Filter: Max. 20 digital notch filters per channel
Frequency Range: 20 Hz to 20 kHz
Bandwidth: 1/60th octave
Possible Value Range: 0 to -36 dB

Display

Type: 3-digit numeric LED display

Power Supply

Mains Voltage: ~100 - 240 V, 50 - 60 Hz
Power Consumption: Approx. 10 W
Fuse: T 1 A H 250 V
Mains Connector: Standard receptacle

Dimensions/Weight

Dimensions (H x W x D): Approx. 1 3/4 in. x 19 in. x 7 1/2 in.
Weight: Approx. 4.2 lbs.
