Product Description

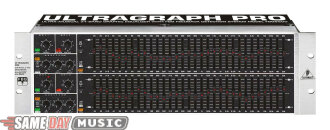

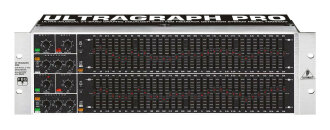

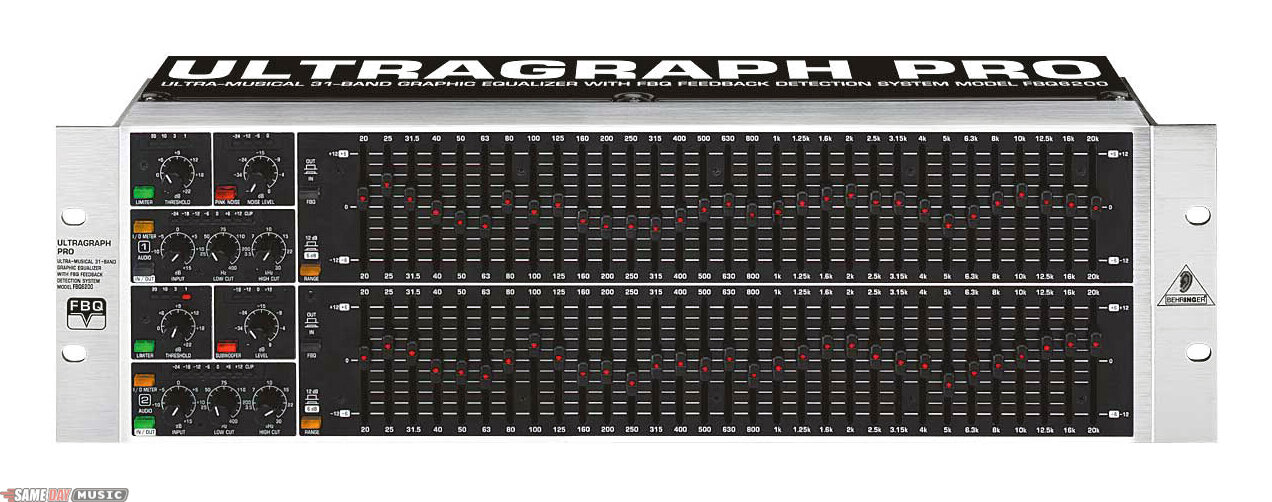

The flagship FBQ6200 is an ultra-musical 31-band stereo graphic EQ that goes the distance to offer a maximum in performance and flexibility both live and in the studio. Its patent-pending feedback detection system instantly reveals feedback frequencies and also can be used as an audio analyzer. A whole battery of superb features includes dedicated limiters with meters for each channel; a pink noise generator; a mono subwoofer output; and sweepable high and low cut filters for each channel. Level setting is no sweat thanks to 8-digit LED I/O metering and input gain control. Top-drawer components include ultra low-noise op-amps, servo balanced 1/4 in. TRS & gold-plated XLR I/Os and relay-controlled hard-bypass. Expect lasting reliability with the high quality illuminated 45-mm faders and detent ALPS(r) pots. Late April availability.

Features:
Professional 31-band stereo Graphic Equalizer for both live and studio applications

Revolutionary, patent-pending FBQ Feedback Detection System instantly reveals critical frequencies and can also be used as Audio Analyzer

Dedicated limiters with gain reduction meters for each channel protect your sound system from overload and distortion

Pink noise generator provides test signals for equalizing your sound system to any room acoustics

Mono subwoofer output with dedicated level control and adjustable crossover frequency

Additional sweepable high and low cut filters for each channel remove unwanted frequencies e.g. floor rumble, tape hiss, etc.

Highly accurate 8 digit LED input/output metering and input gain control for easy level setting

Ultra low-noise audio operational amplifiers offer outstanding sound performance

Relay-controlled hard-bypass with an auto-bypass function during power failure (failsafe relay)

Servo-balanced inputs and outputs with 1/4 in. TRS and gold plated XLR connectors

High quality illuminated 45mm faders, detent ALPS potentiometers and illuminated switches for long-term reliability

Shielded toroidal power transformer for ultra low-noise performance

Extremely rugged all metal chassis ensures long life even under the most demanding conditions

Designed in Germany. Manufactured under ISO9000 certified management system

Technical Description

Audio Inputs:
- Type: RF-filtered, servo balanced XLR and 1/4 in. TRS connectors
- Impedance: 40k ohms balanced and unbalanced
- Maximum Input Level: +21 dBu balanced and unbalanced

Audio Outputs:
- Type: Servo-balanced XLR and 1/4 in. TRS connectors
- Subwoofer Out: Balanced XLR connector, level variable off to 0 dB
- Crossover Frequency: variable, 30-200Hz

System Specifications:
- Frequency Response: 10Hz to 30kHz, +/- 3 dB
- Signal to Noise Ratio: 22 Hz to 22 kHz > 94 dB @+4 dBu
- THD: Typical 0.006% @ +4 dBu, 1 kHz, Gain 1
- Crosstalk: Typical 65 dB @ 1 kHz

Roll-Off Filtersection:
- Type: 12 dB/octave, Butterworth
- Input: variable (-15 dB to +15 dB)
- Low Cut: variable (10 Hz to 400 Hz)
- High Cut: variable (2.5 kHz to 30 kHz)

Graphic Equalizer:
- Type: Analog 31-band equalizer
- Frequency Range: 20 Hz to 20 kHz in 31 1/3-octave bands (ISO frequencies)
- Bandwidth: 1/3 octave
- Control Range: +/-6 dB or +/-12 dB (switchable)

Limiter Section:
- Attack/Release: 20 msec/ 90 msec
- Threshold: variable, -6 dB to +22 dB (off)
- LED Meter: Gain Reduction 20/10/3/1 dB

Noise Generator:
- Type: Pink noise, level variable, off to 0 dBu
- LED Level Meter: -24/-12/-6/0 dB

Dimensions (H x W x D): 5-1/4 x 19 x 5-7/8 in.

Weight: 5.95 lbs

Catalog Description

Stereo 31-band graphic EQ@Feedback detection@Mono subwoofer out with crossover adjust@Low-cut filter@TRS and XLR I/O
