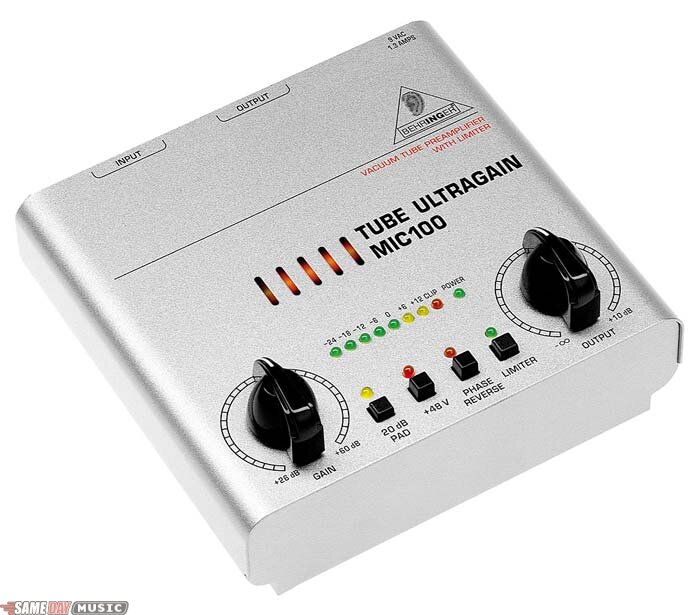

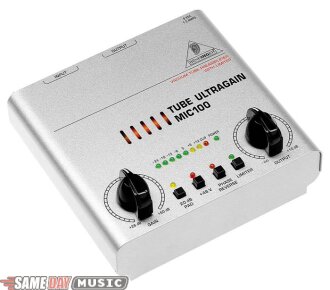

Behringer Tube Ultragain MIC100 Microphone Preamp

This premium tube mic/line preamp features an integrated limiter for studio, live and hard disk recording applications. It features a carefully-selected 12AX7 vacuum tube with Behringer's UTC technology for exceptional warmth and lowest noise. Using the MIC100 is a great way to eliminate the "dull" sound of standard digital recorders & sound cards. Also, it perfectly complements studio-grade condenser mics. When used as a high-end DI-box, it ensures outstanding signal integrity. Features also include a phase reverse switch, +48 V phantom power, a 20 dB pad, and balanced I/O.

The heart of the Tube Untragain is an extremely low-noise microphone preamp circuitry that uses discrete components and produces a highly trans-parent sound. In combination with Behringer's tube technology, the operational amplifiers 4580 and a sophisticated circuit topology, the Tube Untragain yields excellent noise and distortion properties. The innovative UTC circuitry that has been developed by Behringer's engineering team offers an abundance of sound-shaping possibilities. Absolute musicality was Behringer's major goal when they designed the Tube Untragain. The result is a device that, thanks to its tube circuitry, lends an incredible punch to percussion instruments. On the other hand, instruments that are rich in upper harmonics will receive more transparency. The sound will be warm, detailed and brilliant.

Same Day Music is an authorized dealer of Behringer products.

Specifications

XLR input Connector: Balanced/unbalanced
Type: Transformerless, DC-decoupled input
Impedance: Approx. 2 kOhms
Maximum input level: +7 dBu / 20 dB with pad

1/4 in. TRS input Connector: Balanced/unbalanced
Type: Transformerless, DC-decoupled input
Impedance: Approx. 1 MOhms
Maximum input level: +16 dBu / 20 dB with pad

Audio outputs Connectors: XLR and 1/4 in. TRS connector balanced/unbalanced
Type: Transformerless, DC-decoupled output
Impedance:
Approx. 700 Ohms balanced
Approx. 350 Ohms unbalanced
Maximum output level: Approx. +26 dBu @ 100 kOhms

System Frequency Response Mic input: <10 Hz - 43 kHz (+/-3 dB)
Line input: <10 Hz - 40 kHz (+/-3 dB)

Function controls Gain: Variable (+26 to +60 dB)
Output: Variable (-oo to +10 dB)

Function switches 20 dB pad: Level attenuation (20 dB)
+48 V: Activates the phantom power
Phase reverse: Phase reverse (180 kOhms)
Limiter: Limits the output signal

Indicators Input level: 8-segment LED meter: -24, -18, -12, -6, 0, +6, +12, clip
Power-LED: Indicates operation

Power supply Mains voltages USA/Canada 120 V~, 60 Hz, PSU

Physical Dimensions (H x W x D): Approx. 2 1/2 (64 mm) x 5 1/4 (135 mm) x 5 1/4" (135 mm)
Weight (without power supply): Approx. 0.5 kg (1.1 lbs)

Same Day Music is an authorized dealer of Behringer products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 3 lbs

Shipping Dimensions: 9 x 6 x 3 in
