Product Description

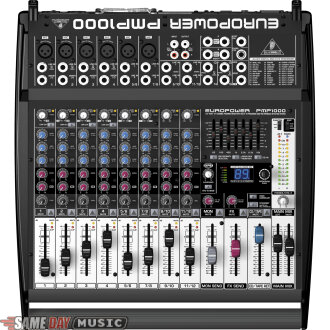

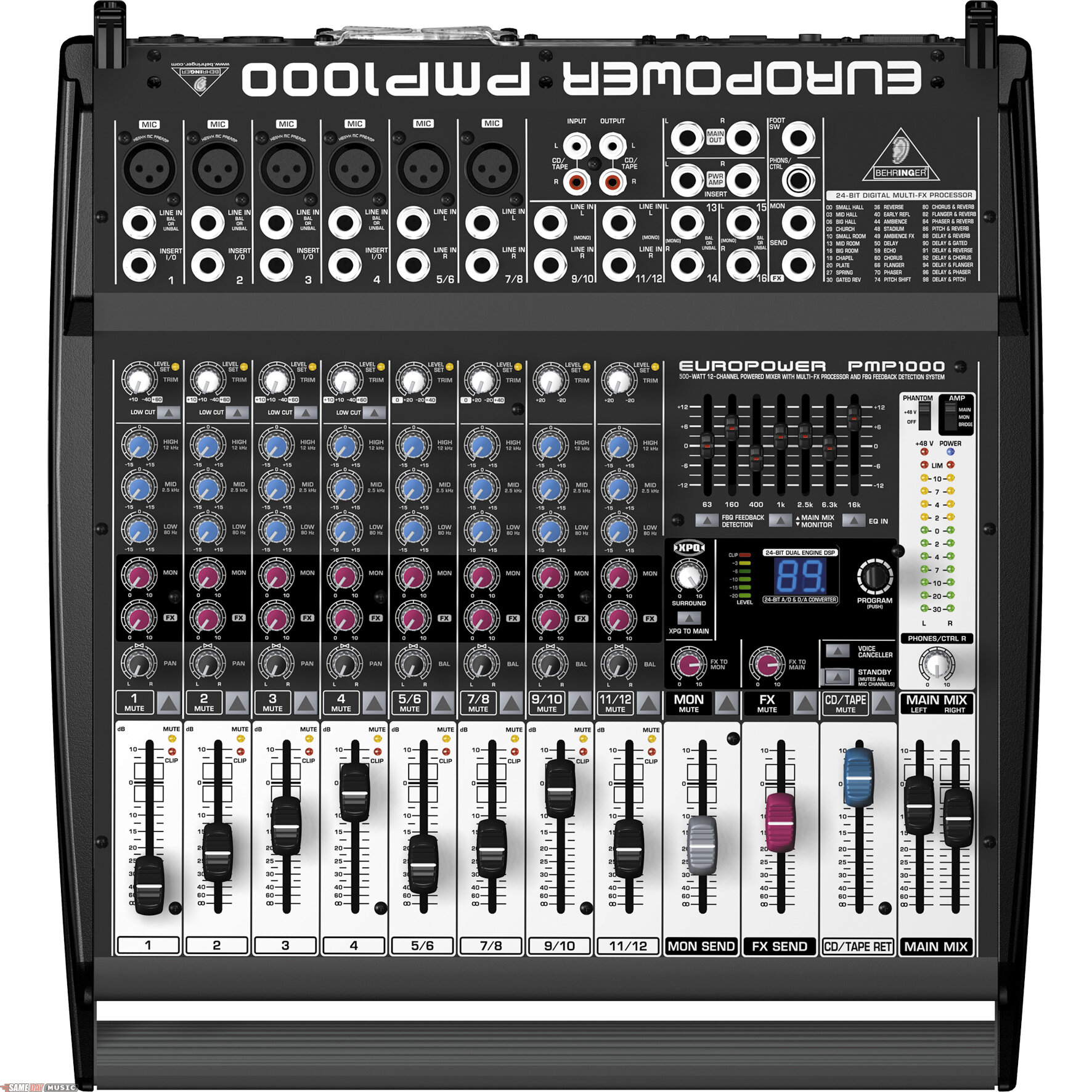

The PMP1000 powered mixer delivers more power, better sound at less weight!

The PMP1000 mixer delivers 500 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps, Voice Canceller and more round off this impressive package of power features.

Get massive power and great sound in a lightweight package!

Features
Ultra-compact 2 x 250-Watt stereo powered mixer (500 Watt bridged mode)

Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight

Ultra-compact design at nearly half the weight of conventional powered mixers means no more lugging around dead weight

12-channel mixer section features 4 mono and 4 stereo channels, 2 additional stereo inputs plus separate tape returns

Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects

Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal

6 high-quality mic preamps (4 IMP "Invisible" Mic Preamps) with switchable +48 V phantom power for condenser microphones

Effective, extremely musical 3-band EQ, switchable Low cut filter and Clip LEDs on all mono channels

Stereo 7-band graphic EQ allows precise frequency correction of monitor or main outputs

Voice Canceller function removes singer's voice from recordings for Karaoke applications

Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode

Standby switch mutes all mic channels during breaks while background music is provided via tape inputs

Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image

Adjustable stereo CD/Tape input for connecting external signal sources

Multi-functional stereo Preamp outputs for added flexibility

Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response and low power consumption for energy saving

High-quality components and exceptionally rugged construction ensure long life

Conceived and designed by BEHRINGER Germany

Technical Description

Microphone Inputs:
- Type: XLR, electronically balanced, discrete input circuit
- Frequency Response: <10 Hz-155 kHz (-1 dB), <10Hz- >200 kHz (-3 dB)
- Gain: +10 dB, +60 dB
- Max Input Level: +12 dBu @ +10 dB gain
- Impedance: approx. 2.6 k ohms balanced/ 1.3 k ohms unbalanced
- Signal-to-Noise Ratio: 109 dB/ 112 dB A-weighted (0 dBu IN @ +10 dB gain)
- Distortion (THD+N): 0.002% / 0.0018% A-weighted

Mono Line Inputs:
- Type: 1/4 in. TS connectors, balanced
- Impedance: approx 20k ohms
- Max Input Level: +21 dBu

Stereo Line Inputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: >3.6k ohms
- Max Input Level: +22 dBu

Equalizer:
- Low: 80 Hz / +/- 15 dB
- Mid: 2.5 kHz / +/- 15 dB
- High: 12 kHz / +/- 15 dB

CD/Tape Input:
- Type: RCA
- Impedance: approx 3.6 k ohms, balanced
- Max Input Level: +21 dBu

Main Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k ohms, unbalanced
- Max Input Level: +21 dBu

Monitor Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k, unbalanced
- Max Input Level: +21 dBu

Stereo Outputs:
- Type:RCA
- Impedance: approx 1k ohms
- Max Output Level: +21 dBu

Loudspeaker Outputs:
- Type: compatible to Neutrik Speakon

Load Impedance:
- Main L/R: 4-8 ohms
- Monitor/Main Mono: 4-8 ohms
- Main Mono/Main Mono: 4-8 ohms
- Bridge: 8-16 ohms

DSP:
- Converter: 24-bit Delta-Sigma, 64/128-times oversampling
- Dynamics D/A: 90 dB
- Sampling Rate: 46.875 kHz
- Delay Time: max 5s
- Signal Run Time (Line in>>Line out): approx 1.5 ms

Display:
- Type: Dual 7-Segment LED

Amplifier (Power Amp Output):
- Power @ 4 ohms: 2 x 130 w
- Power @ 8 ohms: 2 x 90 w
- Power @ 8 ohms (Bridge): 500 w

Power Supply:
- Mains Voltage: 100-240 V~, 50/60 Hz
- Power Consumption: 500 w
- Fuse: T 5 A H 250V
- Mains Connector: Standard IEC receptacle

Physical/Weight:
- Dimensions: 4 7/8 x 15 3/8 x 16 ¾ inches
- Weight: 15.435 lbs
