Product Description

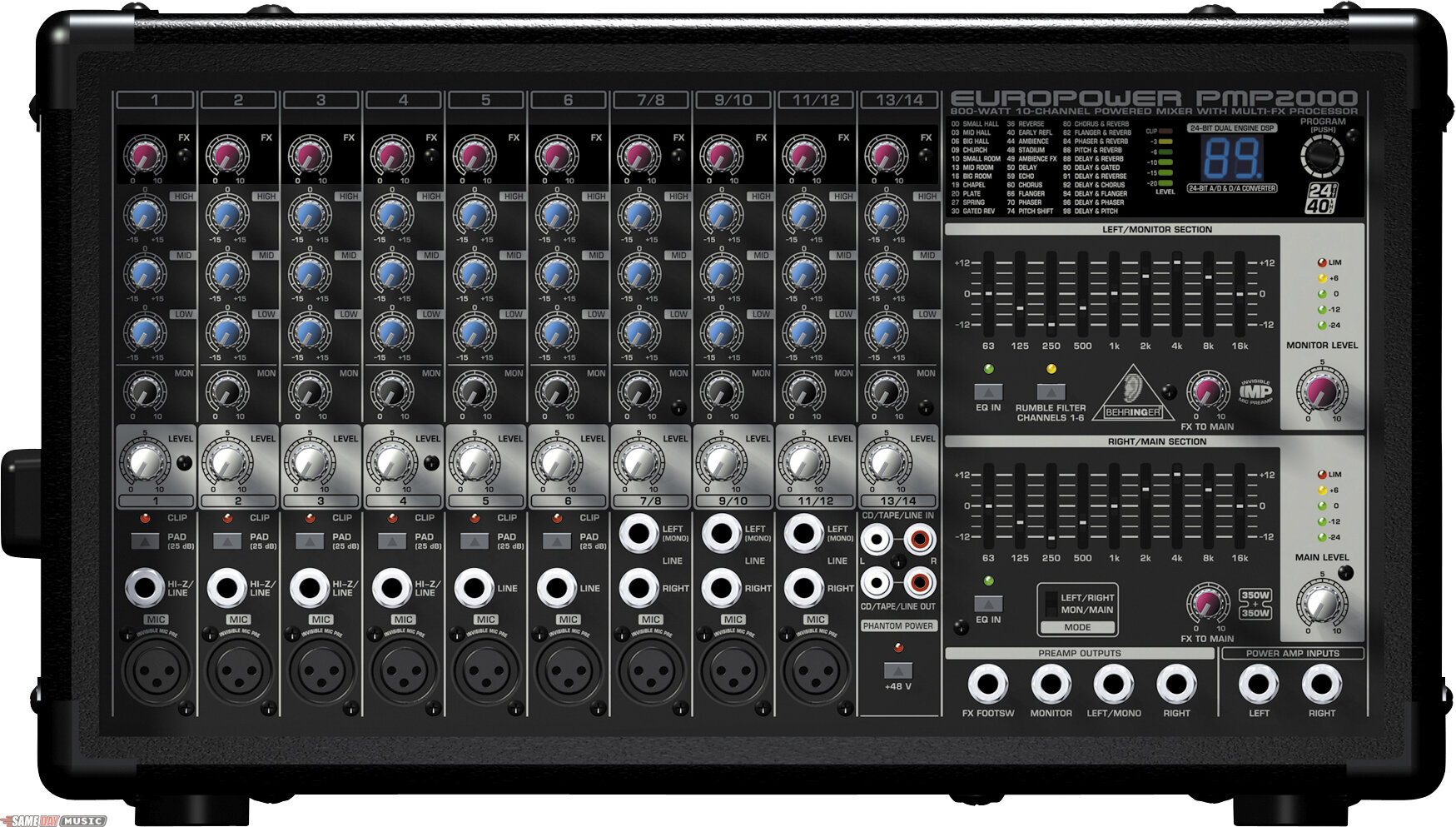

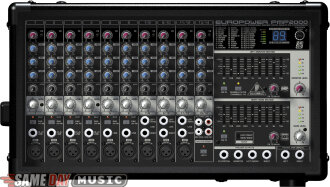

The PMP2000 powered mixer delivers more power, better sound at less weight!

The PMP2000 mixer delivers 800 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps and more round off this impressive package of power features.

Get massive power and great sound in a lightweight package!

Features
Ultra-compact 2 x 350-Watt stereo powered mixer (800 Watt bridged mode)

Ultra-Low Noise ULN design, high headroom and ultra-transparent audio

14-channel mixer section features 6 mono and 3 stereo channels plus separate CD/Tape inputs

Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects

9 high-quality IMP "Invisible" Mic Preamps with switchable +48 V phantom power for condenser microphones

Effective, extremely musical 3-band EQ, switchable Pad and Clip LEDs on all mono channels

Dual 9-band graphic EQ allows precise frequency correction of monitor and main outputs

Selectable stereo (main L/R) or double mono (main/monitor) amplifier operation mode

Multi-functional stereo Preamp outputs and stereo Power amp inputs for added flexibility

High-quality components and exceptionally rugged construction ensure long life

Conceived and designed by BEHRINGER Germany

Technical Description

Microphone Inputs
- Type: XLR, electronically balanced, discrete input circuit
- Frequency Response: <10 Hz-100 kHz (-1 dB), <10Hz- >200 kHz (-3 dB)
- Gain: +33 dB, +8 dB with pad
- Max Input Level: +12 dBu @ +12 dB gain
- Impedance: approx. 2.2 k ohms balanced/ 1.1 k ohms unbalanced
- Signal-to-Noise Ratio: 110 dB/ 114 dB A-weighted (-11 dBu IN @ +33 dB gain)

Distortion (THD+N): 0.001% / 0.008% A-weighted

Mono Line Inputs:
- Type: 1/4 inch TRS connectors, balanced
- Impedance: approx 80k ohms balanced, 40k ohms unbalanced
- Max Input Level: 30 dBu

Stereo Line Inputs
- Type: 1/4 inch TRS connectors, unbalanced
- Impedance: approx. 40k ohms unbalanced
- Max Input Level: +28 dBu

Equalizer:
- Low: 60 Hz / +/- 15 dB
- Mid: 700 Hz-8kHz/ +/- 15 dB
- High: 6 kHz / +/- 15 dB

Preamp Outputs left/mono & right:
- Type: 1/4 inch TRS connector, unbalanced
- Impedance: approx 1.5k ohms
- Max Output Level: +21 dBu

Monitor Output:
- Type: 1/4 inch TRS connectors, unbalanced
- Impedance: 1.5k ohms
- Max Output Level: +21 dBu

Power Amp Inputs:
- Type: 1/4 inch TRS connectors, unbalanced
- Impedance: approx 47k ohms
- Max Input Level: +21 dBu

Loudspeaker Outputs
- Type: Professional speaker connectors (compatible to Neutrik Speakon)

Load Impedance:
- Left/monitor: 4/8/16 ohms
- Right/mono main: 4/8/16 ohms
- Bridge: 8-16 ohms

DSP:
- Converter: 24-bit Texas Instruments, 24-bit Sigma-Delta, 64/128-times oversampling
- Sampling Rate: 40 kHz

Amplifier (Power Amp Output):
- Power @ 4 ohms: 350 w
- Power @ 8 ohms: 165 w
- Power @ 8 ohms (Bridge): 800 w

Power Supply:
- Mains Voltage: 120 V~, 60 Hz
- Power Consumption: max 1 kW
- Fuse: T 10 A H 250V
- Mains Connector: Standard IEC receptacle

Physical/Weight:
- Dimensions: approx. 11 x 18 1/8 x 10 5/8 inches
- Weight: 30.9 lbs
