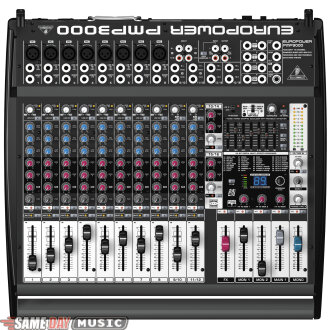

Behringer PMP3000 16-Channel Powered Mixer (1200 Watts)
1,200-watt 16-channel powered mixer with multi-FX processor and FBQ feedback detection system.
Product rated 10.0 out of 10 (4 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Angle
Rear
PRODUCT DESCRIPTION
The PMP3000 powered mixer delivers more power, better sound at less weight!
The PMP3000 mixer delivers 1,200 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps, Voice Canceller and more round off this impressive package of power features.
Get massive power and great sound in a lightweight package!
Features
Ultra-compact 2 x 600-Watt stereo powered mixer (1,200 Watt bridged mode)
Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the weight of conventional powered mixers means no more lugging around dead weight
16-channel mixer section features 8 mono and 4 stereo channels plus separate tape returns
Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
8 high-quality IMP “Invisible” Mic Preamps with switchable +48 V phantom power for condenser microphones
Effective, extremely musical 3-band EQ, switchable Low cut filter and Clip LEDs on all mono channels
Stereo 7-band graphic EQ allows precise frequency correction of monitor or main outputs
Voice Canceller function removes singer’s voice from recordings for Karaoke applications
Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
Adjustable stereo CD/Tape input for connecting external signal sources
Multi-functional stereo Preamp outputs for added flexibility
Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
The PMP3000 mixer delivers 1,200 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps, Voice Canceller and more round off this impressive package of power features.
Get massive power and great sound in a lightweight package!
Features
Ultra-compact 2 x 600-Watt stereo powered mixer (1,200 Watt bridged mode)
Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the weight of conventional powered mixers means no more lugging around dead weight
16-channel mixer section features 8 mono and 4 stereo channels plus separate tape returns
Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
8 high-quality IMP “Invisible” Mic Preamps with switchable +48 V phantom power for condenser microphones
Effective, extremely musical 3-band EQ, switchable Low cut filter and Clip LEDs on all mono channels
Stereo 7-band graphic EQ allows precise frequency correction of monitor or main outputs
Voice Canceller function removes singer’s voice from recordings for Karaoke applications
Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
Adjustable stereo CD/Tape input for connecting external signal sources
Multi-functional stereo Preamp outputs for added flexibility
Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
TECHNICAL DESCRIPTION
Microphone Inputs:
- Type: XLR, electronically balanced, discrete input circuit
- Frequency Response: <10 Hz-155 kHz (-1 dB), <10Hz- >200 kHz (-3 dB)
- Gain: +10 dB, +60 dB
- Max Input Level: +12 dBu @ +10 dB gain
- Impedance: approx. 2.6 k ohms balanced/ 1.3 k ohms unbalanced
- Signal-to-Noise Ratio: 109 dB/ 112 dB A-weighted (0 dBu IN @ +10 dB gain)
- Distortion (THD+N): 0.002% / 0.0018% A-weighted
Mono Line Inputs
- Type: 1/4 in. TS connectors, balanced
- Impedance: approx 20k ohms
- Max Input Level: +21 dBu
Stereo Line Inputs
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: >3.6k ohms
- Max Input Level: +22 dBu
Equalizer
- Low: 80 Hz / +/- 15 dB
- Mid: 2.5 kHz / +/- 15 dB
- High: 12 kHz / +/- 15 dB
CD/Tape Input
- Type: RCA
- Impedance: approx 3.6 k ohms, balanced
- Max Input Level: +21 dBu
Main Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k ohms, unbalanced
- Max Input Level: +21 dBu
Monitor Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k, unbalanced
- Max Input Level: +21 dBu
Stereo Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 ohms, unbalanced
- Max Output Level: +21 dBu
Stereo Outputs:
- Type: RCA
- Impedance: approx 1k ohms
- Max Output Level: +21 dBu
Loudspeaker Outputs:
- Type: compatible to Neutrik Speakon
Load Impedance:
- Main L/R: 4-8 ohms
- Monitor/Main Mono: 4-8 ohms
- Main Mono/Main Mono: 4-8 ohms
- Bridge: 8-16 ohms
DSP:
- Converter: 24-bit Delta-Sigma, 64/128-times oversampling
- Dynamics D/A: 90 dB
- Sampling Rate: 46.875 kHz
- Delay Time: max 5s
- Signal Run Time (Line in>>Line out): approx 1.5 ms
Display:
- Type: Dual 7-Segment LED
Amplifier (Power Amp Output):
- Power @ 4 ohms: 2 x 450 w
- Power @ 8 ohms: 2 x 215 w
- Power @ 8 ohms (Bridge): 1 x 1200 w
Power Supply:
- Mains Voltage: 120 V, 60 Hz
- Power Consumption: 1000 w
- Fuse: T 10 A H 250 V
- Mains Connector: Standard IEC receptacle
Physical/Weight:
- Dimensions: 4 7/8 x 18 3/4 x 18 1/8 in.
- Weight: 23.815 lbs
- Type: XLR, electronically balanced, discrete input circuit
- Frequency Response: <10 Hz-155 kHz (-1 dB), <10Hz- >200 kHz (-3 dB)
- Gain: +10 dB, +60 dB
- Max Input Level: +12 dBu @ +10 dB gain
- Impedance: approx. 2.6 k ohms balanced/ 1.3 k ohms unbalanced
- Signal-to-Noise Ratio: 109 dB/ 112 dB A-weighted (0 dBu IN @ +10 dB gain)
- Distortion (THD+N): 0.002% / 0.0018% A-weighted
Mono Line Inputs
- Type: 1/4 in. TS connectors, balanced
- Impedance: approx 20k ohms
- Max Input Level: +21 dBu
Stereo Line Inputs
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: >3.6k ohms
- Max Input Level: +22 dBu
Equalizer
- Low: 80 Hz / +/- 15 dB
- Mid: 2.5 kHz / +/- 15 dB
- High: 12 kHz / +/- 15 dB
CD/Tape Input
- Type: RCA
- Impedance: approx 3.6 k ohms, balanced
- Max Input Level: +21 dBu
Main Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k ohms, unbalanced
- Max Input Level: +21 dBu
Monitor Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k, unbalanced
- Max Input Level: +21 dBu
Stereo Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 ohms, unbalanced
- Max Output Level: +21 dBu
Stereo Outputs:
- Type: RCA
- Impedance: approx 1k ohms
- Max Output Level: +21 dBu
Loudspeaker Outputs:
- Type: compatible to Neutrik Speakon
Load Impedance:
- Main L/R: 4-8 ohms
- Monitor/Main Mono: 4-8 ohms
- Main Mono/Main Mono: 4-8 ohms
- Bridge: 8-16 ohms
DSP:
- Converter: 24-bit Delta-Sigma, 64/128-times oversampling
- Dynamics D/A: 90 dB
- Sampling Rate: 46.875 kHz
- Delay Time: max 5s
- Signal Run Time (Line in>>Line out): approx 1.5 ms
Display:
- Type: Dual 7-Segment LED
Amplifier (Power Amp Output):
- Power @ 4 ohms: 2 x 450 w
- Power @ 8 ohms: 2 x 215 w
- Power @ 8 ohms (Bridge): 1 x 1200 w
Power Supply:
- Mains Voltage: 120 V, 60 Hz
- Power Consumption: 1000 w
- Fuse: T 10 A H 250 V
- Mains Connector: Standard IEC receptacle
Physical/Weight:
- Dimensions: 4 7/8 x 18 3/4 x 18 1/8 in.
- Weight: 23.815 lbs
CATALOG DESCRIPTION
High-powered live mixer@16-channel, 1,200-watt (mono) mixer@24-bit effects processor, 100 presets@7-band graphic EQ@Karaoke-style voice canceller
REVIEWS
Product rated 10.0 out of 10 (4 ratings)
Read 1 Full Review >>
- "Awesome Price, Amazing Product!" - Read More
