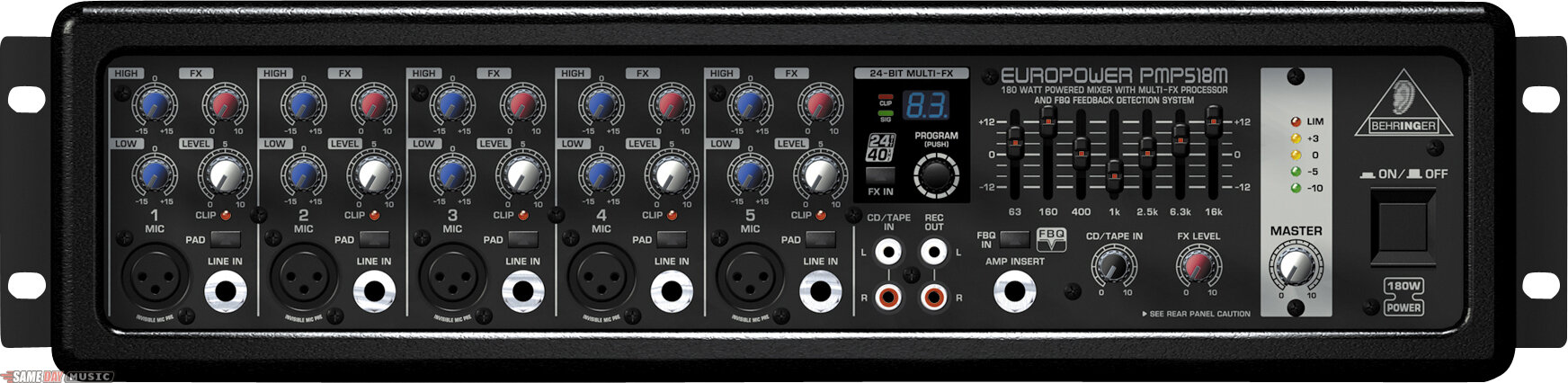

Behringer PMP518M 5-Channel Powered Mixer (180 Watts)
Ultra-compact 180-watt 5-channel powered mixer with multi-FX processor and FBQ feedback detection system.
Product rated 5.3 out of 10 (3 ratings)
Read 3 Full Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Audio Technica ST90MKII Dynamic Mic
- from $40
- Whirlwind MC20 Mic Cable
- from $10
- CBI 14-Gauge Speaker Cable
- from $11
- Monster Performer 500 Speaker Cable
- from $24.90
ADDITIONAL VIEWS:
Main
Rear
Angle
PRODUCT DESCRIPTION
The PMP518M powered mixer delivers more power, better sound at less weight! The PMP518M mixer delivers 180 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps and more round off this impressive package of power features. Get massive power and great sound in a lightweight package!
Features
Super-compact rackmountable 180-Watt powered mixer with 24-bit FX processor
Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight
Ultra-low noise ULN design for highest possible headroom and ultra-transparent audio
5-channel mixer section features 5 mic/line channels plus separate 2-track in/output
Integrated 24-bit digital FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
5 high-quality mic preamps with switchable Pad and Clip LEDs
Effective, extremely musical 2-band EQ on all channels
7-band graphic EQ allows precise frequency correction
3 speaker outputs on 1/4 in. jack and professional speaker connectors (compatible with Neutrik Speakon connectors)
Rack mount brackets included
High-quality components and exceptionally rugged construction ensure long life
Features
Super-compact rackmountable 180-Watt powered mixer with 24-bit FX processor
Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight
Ultra-low noise ULN design for highest possible headroom and ultra-transparent audio
5-channel mixer section features 5 mic/line channels plus separate 2-track in/output
Integrated 24-bit digital FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
5 high-quality mic preamps with switchable Pad and Clip LEDs
Effective, extremely musical 2-band EQ on all channels
7-band graphic EQ allows precise frequency correction
3 speaker outputs on 1/4 in. jack and professional speaker connectors (compatible with Neutrik Speakon connectors)
Rack mount brackets included
High-quality components and exceptionally rugged construction ensure long life
TECHNICAL DESCRIPTION
Microphone Inputs:
Type: XLR, electronically balanced
Mic E.I.N. (20 Hz - 20 kHz):
@ 0 W source resistance -122 dB / -125 dB A-weighted
@ 50 W source resistance -122 dB / -125 dB A-weighted
@ 150 W source resistance -121 dB / -124 dB A-weighted
Frequency response:
< 10 Hz - 100 kHz (-1 dB),
< 10 Hz - 200 kHz (-3 dB)
Gain +33 dB, +8 dB with pad
Max. input level +12 dBu @ 10 dB gain
Impedance: approx. 2.2 kW balanced, 1.1 kW unbalanced
Signal-to-noise ratio: 110 dB / 114 dB A-weighted (-11 dBu in @ +33 dB gain)
Distortion (THD+N): 0.001% / 0.0008% A-weighted
Mono Line Inputs
Type: 1/4 in. TRS connector, balanced
Impedance: approx. 80 kW balanced, 40 kW unbalanced
Max. input level: +30 dBu
EQ
Low 80 Hz / ±15 dB
High 12 kHz / ±15 dB
Loudspeaker Outputs
Type: Neutrik Speakon-compatible, 1/4 in. TS connectors
Load impedance: 4 - 16 W
DSP
Converter: 24-bit Sigma-Delta, Sampling rate 40 kHz
Display
Type: 2-digit, 7-segment LED
Amplifier
Output power: 62 W (8 W), 105 W (4 W) (RMS @ 1 % THD (sine wave))
Output power 100 W (8 W), 180 W (8 W) (Peak Power)
Power Supply
Mains voltages U.S./Canada: 120 V~, 60 Hz
Power consumption: max. 290 W
Fuse: 100 - 120 V~: T 6.3 A H 250 V
220 - 240 V~: T 3.15 A H 250 V
Mains connection: Standard IEC receptacle
Physical/Weight
Dimensions (H x W x D) approx. 4 3/5 x 18 1/2 x 8 7/8 in. / (117 x 470 x 225 mm)
Weight (net): approx. 15.88 lbs (7.2 kg)
Type: XLR, electronically balanced
Mic E.I.N. (20 Hz - 20 kHz):
@ 0 W source resistance -122 dB / -125 dB A-weighted
@ 50 W source resistance -122 dB / -125 dB A-weighted
@ 150 W source resistance -121 dB / -124 dB A-weighted
Frequency response:
< 10 Hz - 100 kHz (-1 dB),
< 10 Hz - 200 kHz (-3 dB)
Gain +33 dB, +8 dB with pad
Max. input level +12 dBu @ 10 dB gain
Impedance: approx. 2.2 kW balanced, 1.1 kW unbalanced
Signal-to-noise ratio: 110 dB / 114 dB A-weighted (-11 dBu in @ +33 dB gain)
Distortion (THD+N): 0.001% / 0.0008% A-weighted
Mono Line Inputs
Type: 1/4 in. TRS connector, balanced
Impedance: approx. 80 kW balanced, 40 kW unbalanced
Max. input level: +30 dBu
EQ
Low 80 Hz / ±15 dB
High 12 kHz / ±15 dB
Loudspeaker Outputs
Type: Neutrik Speakon-compatible, 1/4 in. TS connectors
Load impedance: 4 - 16 W
DSP
Converter: 24-bit Sigma-Delta, Sampling rate 40 kHz
Display
Type: 2-digit, 7-segment LED
Amplifier
Output power: 62 W (8 W), 105 W (4 W) (RMS @ 1 % THD (sine wave))
Output power 100 W (8 W), 180 W (8 W) (Peak Power)
Power Supply
Mains voltages U.S./Canada: 120 V~, 60 Hz
Power consumption: max. 290 W
Fuse: 100 - 120 V~: T 6.3 A H 250 V
220 - 240 V~: T 3.15 A H 250 V
Mains connection: Standard IEC receptacle
Physical/Weight
Dimensions (H x W x D) approx. 4 3/5 x 18 1/2 x 8 7/8 in. / (117 x 470 x 225 mm)
Weight (net): approx. 15.88 lbs (7.2 kg)
