Product Description

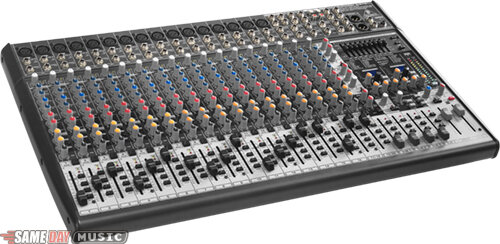

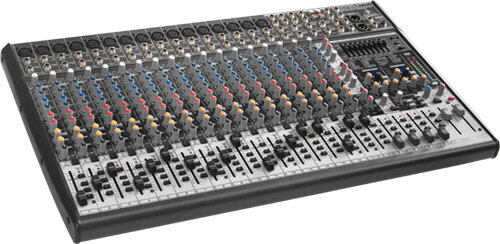

The Behringer SX2442FX Analog Mixer is a four bus mixer that features XENYX microphone preamps. Mono input channels feature three-band, semi-parametric mid-range EQ with Neo-classic British response. Stereo input channels provide four band equalization. Each input has four aux sends; with two sends switchable between pre/post fader, for a flexible mix of monitor and effects applications.

External signal processing racks can be largely eliminated, thanks to the SX Series' two integrated effects processors and stereo 9-band graphic EQ. One-hundred 24-bit / 96kHz studio-quality effects presets can be called-up and assigned to one or both internal effects buses. Main or Monitor output EQ is set and fine-tuned with the intuitive FBQ Feedback Detection display.

When external processing is required, the SX Series provides extensive insert patch-points for input channels and main outputs. The Master section offers features such as multiple aux and stereo returns, switchable SIP / PFL monitoring, Talkback, metering and more.

An internal auto-ranging power supply (100 - 240V), gold-plated XLR output connectors and rugged steel construction ensure that the SX Series consoles will travel anywhere.

Technical Description

16 XENYX Mic Preamps

Two stereo input channels with 4-band EQ plus 2 additional stereo input channels with Level and pre-fader Aux controls

Neo-classic British 3-band EQs with semi-parametric mid band

Two independent 24-bit stereo FX processors with 100 presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects

High-precision 9-band stereo graphic EQ for monitor or main mixes

FBQ Feedback Detection system

Peak LEDs, Mute, Main mix and subgroup routing switches, Solo and PFL functions on all channels

Inserts on each mono channel and main mix for flexible connections to outboard processors

4 Subgroup outputs and additional Mono output with sweepable Low Pass filter for subwoofer application

4 Aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)

Balanced Main mix outputs with 1/4 inch jacks and gold-plated XLR connectors, separate Control room, Headphone and stereo Tape outputs

Solo-In-Place and Pre-Fader-Listen functions plus full-featured Talkback section

Standby switch mutes all channels during breaks while background music is provided via CD/Tape inputs

Long-wearing 60 mm logarithmic-taper faders and sealed rotary controls

Internal auto-ranging power supply (100 - 240 V)
