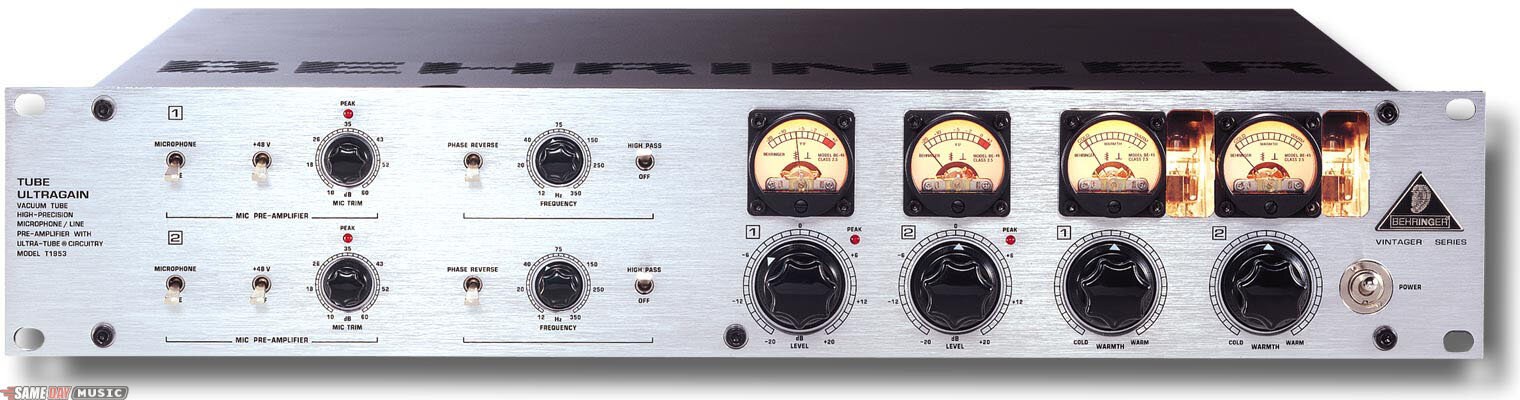

Product Description

The Tube Ultragain is the best preamplifier that Behringer has ever produced. Not only did they choose the highest components available; in the input section circuitry they've bordered on breaking the laws of physics. With impressive results: absolutely pure audio quality and unbelievable detail resolution. Input gain is adjustable from +10 to +60 dB. Phantom power is switchable per channel, with a "soft mute" function to ensure noise-free switching.

Features:
Versatile and useful "Tube" 2-Channel mic preamp, line drive, and DI box

Original ULTRAGAIN is a staple in studios because it gives you the extra clarity and punch missing from your mics

Unique mic preamp provides unmatched sound quality with an incredible dynamic range of 130 dB!

Gain is adjustable from +15 to +55 dB

"Ultra-Tube" circuitry adds more warmth without distortion or noise.
Add in as much tube enhancement as you can handle with the independent "Warmth" control

Legendary Sovtek tubes; huge, backlit analog VU meters and a slick chrome "Retro" front panel design and vintage style knobs that take you back to the future round out this package

Phantom power is available on each channel

"Soft Mute" feature ensures that there's no "thump" when unit is enabled

Mic/Line switch lets you choose Line input or Mic input

12 dB per octave switchable Low Cut filter can be swept from 15 Hz to 350 Hz to eliminate stage "rumble" and tighten up tape tracks in the Line Mode

Phase Reverse function minimizes anti-phase effects and is also essential when decoding MS (Middle/Side) miking effects

Converts between the semi-professional standard of -10 dBV up to the professional +4 dBu professional standard or vice versa

Servo-balanced XLR and TRS inputs and outputs on gold-plated connectors

Technical Description

Microphone Inputs
Connections: XLR and 1/4 in. jack

Type: transformerless, DC-decoupled input

Impedance: 3 kOhm balanced

Max. input level: +10 dBu balanced and unbalanced

CMRR typical 40 dB, >55 dB @ 1 kHz

Line inputs
Connections: XLR and 1/4 in. jack

Type: transformerless, DC-decoupled input

Impedance: 50 kOhm balanced, 25 kOhm unbalanced

Max. Input leve:l +23 dBu balanced and unbalanced

CMRR: typical 40 dB, >55 dB @ 1 kHz

Audio outputs
Connections: XLR and 1/4 in. jack

Type: electronic, servo-balanced output stage

Impedance: 60 Ohm balanced, 30 Ohm unbalanced

Max. output level: +21 dBu balanced and unbalanced

System Specifications
Bandwidth 18 Hz to 30 kHz, +/- 3 dB

Signal-to-noise ratio > 108 dBu, unweighted, 22´Hz to 22 kHz

Controls
Mic Trim: variable (+10 to +60 dB)

Frequency (High Pass): variable (12 to 350 Hz)

Level: variable (-20 dB to +20 dB)

Warmth: variable (Cold to Warm)

Function Switches
+48 V: engages the Phantom Power

Mic/Line: switches from Line to Microphone pre-amp

Phase Reverse: phase reversal (180Á)

High Pass: engages the high pass filter

Options
Output transformer Behringer OT-1 retrofittable

Power Supply
Mains voltage: USA/Canada ~ 120 V AC, 60 Hz

Power consumption: 25 Watts

Fuse: 100-120 V AC: 1,0 A (slow-blow)

Mains connection: standard IEC receptacle

Physical
Dimension (H x W x D): 3-1/2 x 19 x 8-1/2 in. (89.5 x 482.6 x 217mm)

Net weight: 8.0 kg, approximately

Shipping weight: 10.0 kg, approximately
