Product Description

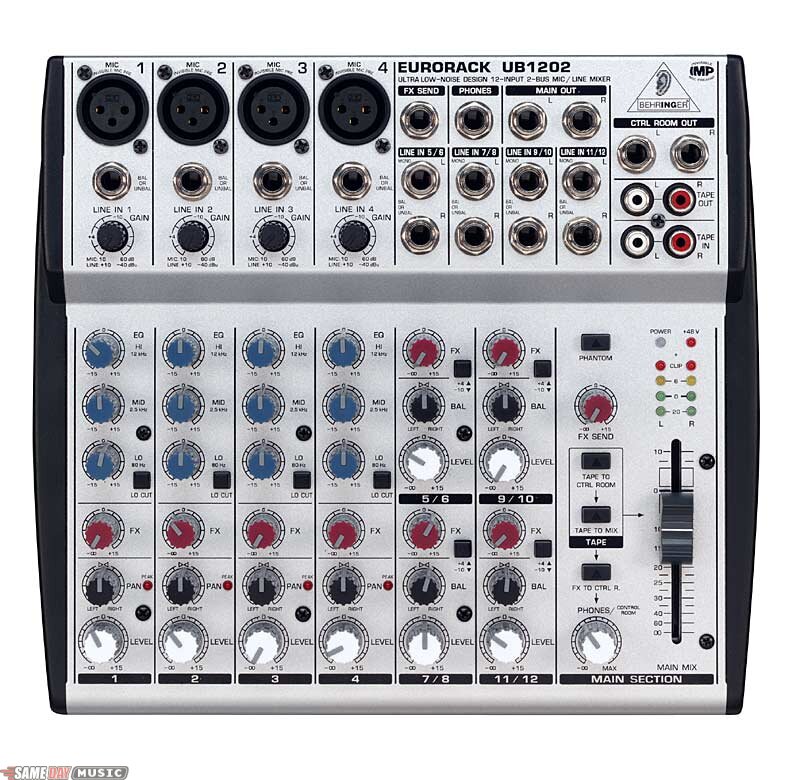

Behringer's newest 12-input, 2-bus mic/line mixer boasts 4 state-of-the-art Invisible Mic Preamps (IMPs) and an effective, extremely musical 3-band EQ plus switchable low-cut filter on all mono channels. There is also 1 post fader FX send per channel for external FX devices, main mix outputs plus separate control room, headphones, and stereo tape outputs. Tape inputs are assignable to main mix or control room/phones outputs. Like the smaller UB1002, the UB1202 is an extremely versatile mixer with possibilities ranging from connecting a DAT recorder and monitor speakers to running permanent video and audio installations.

Every crucial development stage of the new UB Series has Uli Behringer's name on it - literally: from the design study to the circuitry layout to the mechanical makeup of the consoles. He has personally selected each and every individual component, all with the goal of squeezing the very most out of every single one of them. These consoles have been pushed as far as the technology permits to-date.

Features
Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio

4 new state-of-the-art, studio-grade IMP "Invisible" Mic Preamps with:
130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
Ultra-wide 60 dB gain range
Lowest possible distortion 0.0007% (20 Hz - 20 kHz)

Effective, extremely musical 3-band EQ plus switchable low-cut filter on all mono channels

12 balanced high-headroom line inputs with +4/-10 level selection on all stereo channels

State-of-the-art 4580 operational amplifiers provide lowest noise and distortion - better than 4560 op amps

1 post fader FX send per channel for external FX devices

Peak LEDs on all mono channels

Main mix outputs plus separate control room, headphones, and stereo tape outputs

Tape inputs assignable to main mix or control room/phones outputs

FX to control room function helps to monitor effect signal via headphones and control room outputs

Switchable +48 V phantom power for condenser microphones

Long-wearing 60 mm logarithmic-taper ALPS¬ master fader and sealed rotary controls

External power supply for noise-free audio and superior transient response

Extremely rugged steel construction ensures long life even under the most demanding conditions

Manufactured under ISO9000 certified management system

Invisible Mic Preamp (IMP)
Five years in the making, the Invisible Mic Preamp (IMP) is a superior mic preamp that delivers crystal-clear audio with incredible reproduction of the slightest nuances. It matches or exceeds the performance of outboard mic preamps. You get extreme bandwidth of 5 Hz to 100 kHz coupled to unusually neutral, noise- and distortion-free circuitry. The Behringer IMP provides ultra-linear frequency response up to 100 kHz. The result of perfect design. Almost unmeasurable distortion for your signal integrity.

Ultra Low-Noise (ULN)
ULN stands for the Ultra low-noise design of our circuitry. It is based on extremely low-impedance components that keep thermal inherent noise and crosstalk at an absolute minimum. The result: your console is considerably less noisy and crosstalk between neighboring channels is virtually non-existent. The result of perfect design. Almost unmeasurable distortion for your signal integrity.
