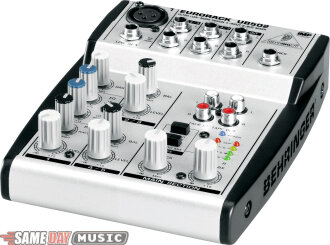

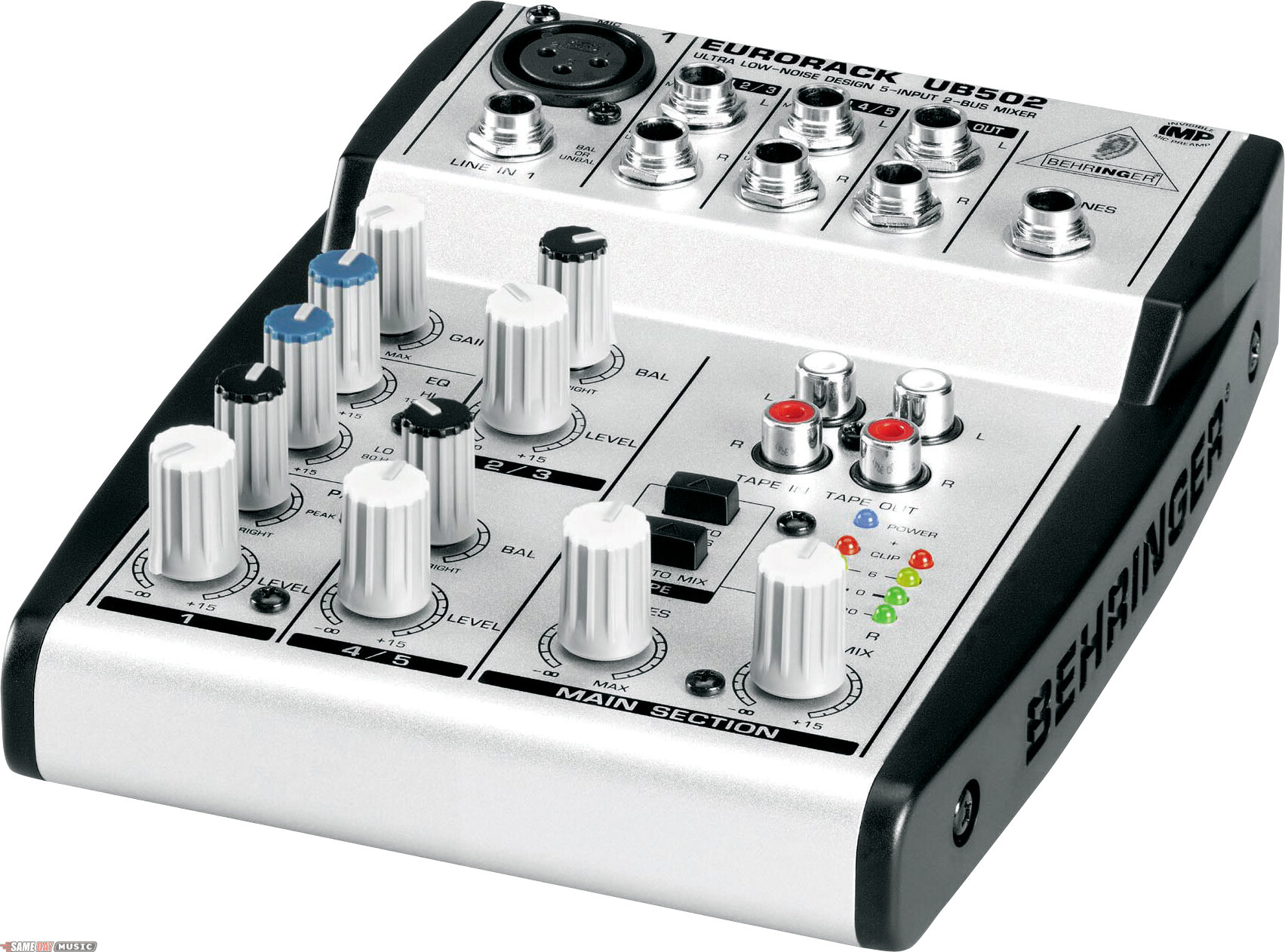

Behringer UB502 Eurorack 5 Input Mixer

It may be small, but the UB502 features the same state-of-the-art Invisible Mic Preamp (IMP) and the same Ultra low-noise (ULN) design for highest possible headroom as its larger brethren. Its one mono channel plus 2 stereo channels with a 2-band EQ on the mono channel make it ideal for use with fixed audio installations as well as keyboards, samplers, and computer application. Hobby musicians and video makers will also find use for this ultra-compact mixer.

Every crucial development stage of the new UB Series has Uli Behringer's name on it - literally: from the design study to the circuitry layout to the mechanical makeup of the consoles. He has personally selected each and every individual component, all with the goal of squeezing the very most out of every single one of them. These consoles have been pushed as far as the technology permits to-date.

Does not provide phantom power.

Features
Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio

1 new state-of-the-art, studio-grade IMP "Invisible" Mic Preamp with:
130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
Ultra-wide 60 dB gain range
Lowest possible distortion 0.0007% (20 Hz - 20 kHz)

Effective, extremely musical 2-band EQ and peak LED on mono channel

5 balanced high-headroom line inputs

State-of-the-art 4580 operational amplifiers provide lowest noise and distortion - better than 4560 op amps

Main mix outputs plus separate headphones and stereo tape outputs

Tape inputs assignable to main mix or phones outputs

High-quality sealed rotary controls from ALPS for long-term reliability

External power supply for noise-free audio and superior transient response

Extremely rugged steel construction ensures long life even under the most demanding conditions

Manufactured under ISO9000 certified management system

Invisible Mic Preamp (IMP)
Five years in the making, the Invisible Mic Preamp (IMP) is a superior mic preamp that delivers crystal-clear audio with incredible reproduction of the slightest nuances. It matches or exceeds the performance of outboard mic preamps. You get extreme bandwidth of 5 Hz to 100 kHz coupled to unusually neutral, noise- and distortion-free circuitry. The Behringer IMP provides ultra-linear frequency response up to 100 kHz. The result of perfect design. Almost unmeasurable distortion for your signal integrity.

Ultra Low-Noise (ULN)
ULN stands for the Ultra low-noise design of our circuitry. It is based on extremely low-impedance components that keep thermal inherent noise and crosstalk at an absolute minimum. The result: your console is considerably less noisy and crosstalk between neighboring channels is virtually non-existent. The result of perfect design. Almost unmeasurable distortion for your signal integrity.
