    Moog Music MoogerFooger MF103 Phaser Effects Pedal

    Get excited about stompboxes again! Wild vintage knobs and real wood sides. Nobody makes 'em like Bob Moog.
    Product Rated 9.7 Out of 10 (3 ratings)
    **********
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 1728-SH2F

    Web Item #BIGMF103

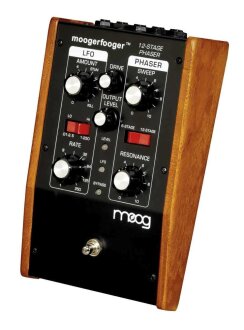

    Moog Music MoogerFooger MF103 Phaser

    More Resources

    Manuals and Documents: User's Manual
    Moog Music Warranty: If you have additional warranty questions, please call the manufacturer at 828-251-0090
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $4
    • Overnight: $24
    SpeedPlay: 2 payments of $149.50
    $299 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Moog Music MF-103 Moogerfooger 12-Stage Phaser Pedal Product Description

    The MF103 12 Stage Phaser is an all-analog effects module incorporating a 6-stage/12-stage phaser and a wide-range LFO (Low Frequency Oscillator). Its professional studio features include true 12-stage phasing (usually available only in expensive studio gear), an audio input which accepts any instrument-level or line-level signal, stereo audio outputs, and voltage control of all 4 performance parameters. Housed in a rugged steel and hardwood enclosure, the MF103 has the classic good looks, versatility, and high-quality sound of the well-known vintage Moog synthesizers.

    What is a Phaser?

    A phaser is a type of "comb filter," so called because its frequency response has several dips and peaks, like the teeth of a comb. As the phaser response sweeps back and forth across the frequency spectrum, the harmonics of the audio input signal are alternately increased and decreased. This produces the classic phaser "whooshing" sound. The MF103 produces 2 comb-filter responses. They are called "6-Stage" and "12-Stage," because of the number of phase-shifting circuits that are used internally. The 6-Stage mode has 3 dips in its frequency response, while the 12-Stage mode has 6 dips. These 2 modes have distinctly different sound qualities. In addition, the MF103 features a variable feedback circuit that increases the resonance, or 'depth' of the phaser sound.

    What is an LFO?
    LFO stands for Low Frequency Oscillator. It produces the waveform that automatically sweeps the phaser's response back and forth across the frequency spectrum. The MF103's LFO covers an extremely wide frequency range--from slower than 1 cycle every minute to as fast as 250 cycles per second. This wide frequency range produces an enormous variety of effects, including "rotating speaker," "tremolo," and "ring modulator." And, by adjusting the strength of the LFO's waveform, you can adjust the amount of the effect, from barely perceptible to strong and dramatic.

    What's on the Front Panel?

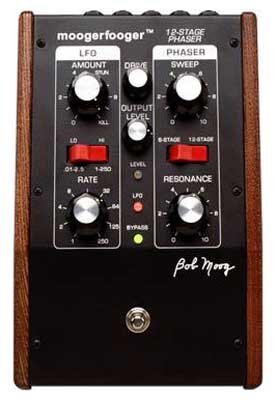

    The left side of the panel is the LFO. At the top is the Amount control, which adjusts the strength of the LFO waveform, and therefore the width of the phaser sweep. At the bottom is the Rate control, which adjusts the LFO's speed over a 250:1 range. Between them is the Lo-Hi switch. When the switch is on Lo, the Rate control goes from 0.01 Hz to 2.5 Hz. ("Hz" stands for Hertz. One Hertz equals one cycle per second.) When the switch is on Hi, the Rate control goes from 1 Hz to 250 Hz. The phaser controls themselves are on the right side of the panel. At the top is the Sweep control, which moves the phaser response back and forth across the frequency spectrum over a 6-octave range. At the bottom is the Resonance control, which adjusts the 'depth' of the phaser effect. Between them is the 6-Stage 12-Stage switch, which selects the phaser mode.

    The audio level adjustments, LED indicators, and 'stomp switch' are located down the middle of the panel. The Drive adjustment matches the level of your instrument to the phaser input. The Output Level adjustment balances the loudness of the phaser and the bypassed signal. The 3-color Level light tells when the Drive adjustment is set correctly, the LFO light gives a visual indication of the LFO speed, and the 2-color Bypass light tells whether the phaser function is active or bypassed. Finally, the rugged-but-smooth-acting stomp switch enables you to switch the phaser in or out at the touch of your foot or finger.

    What's on the Jack Panel?

    The jack panel has these 1/4 in. phone jacks: Audio In is what you plug your instrument or sound source into. Audio Out is the audio signal that you usually feed to your amp or mixing console. Aux Out is the audio signal that you also use when you want stereo outputs. LFO Out is the LFO waveform that you can use with other voltage-controlled devices. Rate, Amount, Sweep, and Resonance are control inputs that have the same effect as the front panel performance controls.

    You can plug expression pedals (such as the moogerfooger EP1) into any of these inputs. Or you can apply control voltages from devices such as modular synthesizers, MIDI-to-CV converters, or other moogerfoogers. This means that you can 'play' your MF103 from the front panel performance controls, expression pedals, and/or any other externally applied control voltages.

    Sweep In lets you disconnect the LFO from part of the phase-shifting circuitry, and connect an external control voltage in its place.

    The +9V DC power jack is also located on the jack panel. It accepts a wide range of standard +9V power adapters.

    About Moog Music

    Moog Music is an Asheville, NC-based company, bearing the name of owner and Chief Technical Officer Robert Moog. The current incarnation of Moog Music started as Big Briar, the company founded by Dr. Moog in 1978. Big Briar became Moog Music in 2002 after Dr. Moog reacquired the Moog Music trademark. The name reflects the legacy of Dr. Moog and his many years designing synthesizers, theremins, and other electronic music products. Moog Music will continue to support products with the Big Briar moniker.

    Moog Music is a company made up of musicians, business professionals, and technicians who work together to bring you some of the finest electronic music gear on today's market. Moog draws on a long tradition of analog design to build instruments with great sound, musician-friendly user interfaces, and rugged, good-looking classic-style enclosures. Current product lines include Etherwave and Ethervox theremins, Moogerfooger Analog Effects, and Minimoog Voyager Analog Synthesizers. All Moog Music products carry a full one-year warranty against faulty parts or workmanship, in the absence of obvious neglect or abuse. Take care of them, and they'll take care of you!

    Same Day Music is an authorized dealer of Moog Music products.

    Moog MF103 Technical Description

    Features:

    * RATE rotary control, which varies LFO's frequency over a 250:1 range.
    * AMOUNT rotary control, which adjusts the amount by which the LFO output varies the phaser sweep.
    * SWEEP rotary control, which moves the phaser frequency response over a six-octave range.
    * RESONANCE rotary control, which adjusts the height and sharpness of the peaks of the phaser frequency response.
    * DRIVE rotary control, which adjusts the gain of the audio input to the phaser.
    * OUTPUT LEVEL rotary control, which balances the phaser signals with the bypassed signal.
    * LO-HI rocker switch, which chooses between the low LFO range (0.01 Hz to 2.5 Hz) and the high LFO range (1.0 Hz to 250 Hz).
    * LEVEL, a three-color LED that is used to set the DRIVE control.
    * LFO, a LED that indicates the LFO rate.
    * BYPASS, a two-color LED that tells whether the phaser is active or bypassed.
    * ON/BYPASS, a rugged, smooth-acting 'stomp switch.'

    Jack Panel Features:

    * AUDIO IN 1/4" phone jack - accepts any instrument-level or line-level audio signal from -16 dBm to +4 dbm. Input impedance is one megohm.
    * AUDIO OUT 1/4" phone jack - -4 dBm nominal output level. +8 dBm absolute maximum output level. Output impedance is 5,000 ohms.
    * AUX OUT 1/4" phone jack - -4 dBm nominal output level. +8 dBm absolute maximum output level. Output impedance is 5,000 ohms.
    * RATE, AMOUNT, SWEEP, RESONANCE, all of which are stereo 1/4" jacks that accept moogerfooger EP1 (or equivalent) expression pedals, or control voltages from two-circuit or three-circuit 1/4" jacks.
    * SWEEP IN - provides a means of applying an external +/- 2.5 volt control signal to the second 6-section phasing circuit, in place of the LFO. Input impedance is 50,000 ohms.
    * LFO OUT 1/4" phone jack - delivers the LFO waveform (triangular wave; +/- 2.8 volts) for use by other voltage-controlled devices. Output imedance is 600 ohms.
    * +9V POWER INPUT jack - accepts standard 9 volt power adaptors (power adaptor included).

    General Specifications:

    * CASE: Black panel with hardwood sides -- classic analog appearance.
    * DIMENSIONS: 9" x 6" x 2-1/2"
    * NET WEIGHT: 2 lb.
    * SHIPPING WEIGHT: 4 lb, including power adaptor and instruction manual.
    * POWER REQUIREMENTS: 105-125AC, 5W. 220AC 50Hz either European or UK style power adaptor available on special order.

    Same Day Music is an authorized dealer of Moog Music products.
    Shipping Weights and Dimensions
    Shipping Weight: 4 lbs
    Shipping Dimensions: 13 x 7 x 6 in
