Product Description

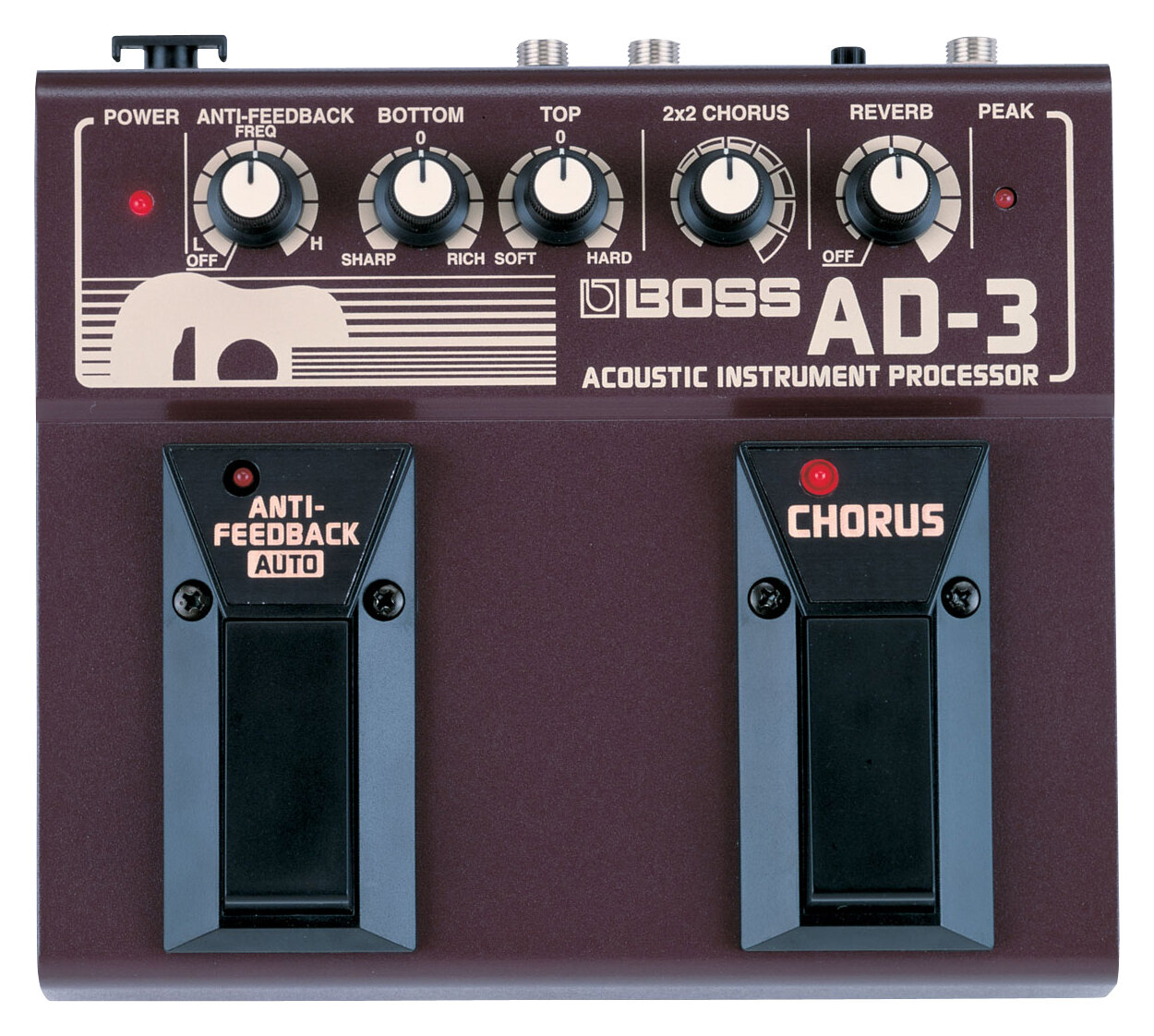

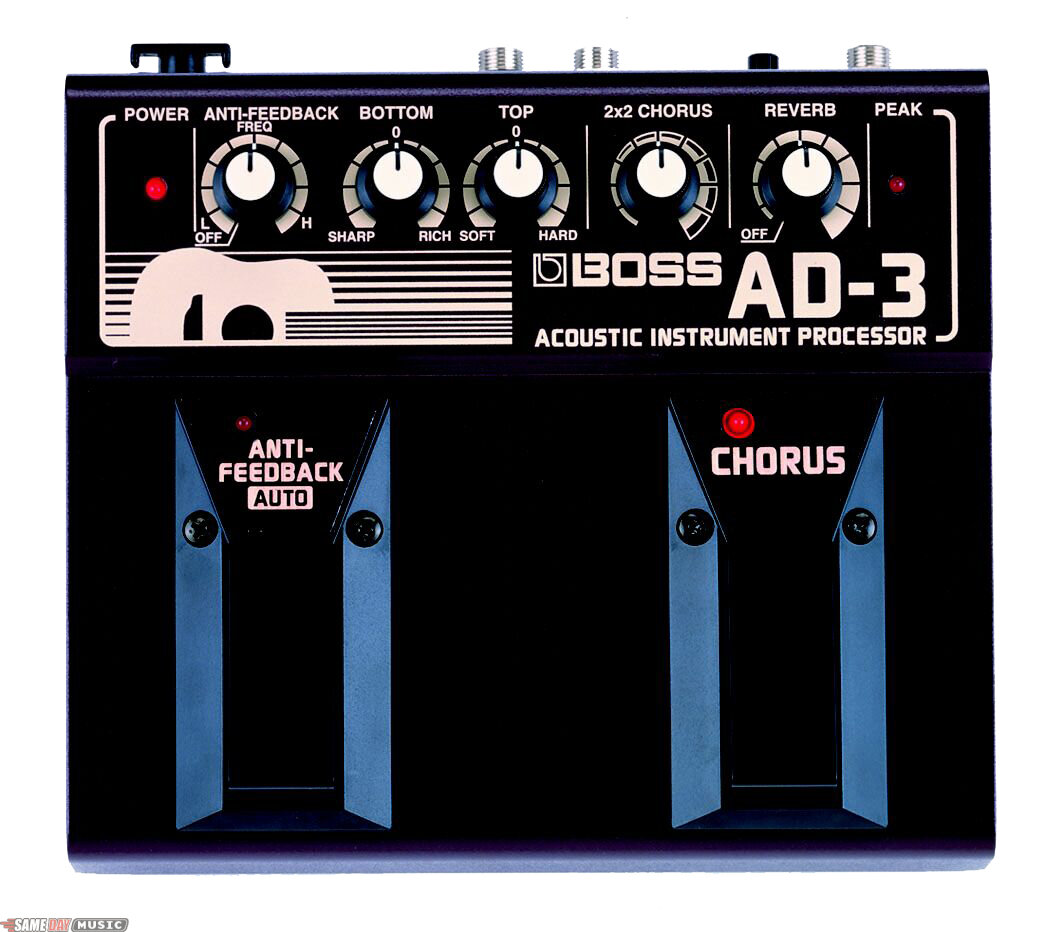

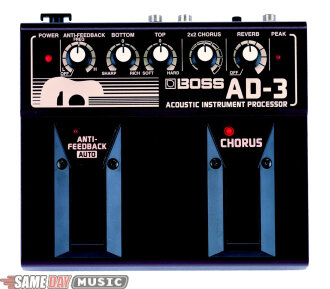

Developed exclusively for live performance, the AD-3 gives acoustic-electric guitarists a warmer, richer sound thanks to its tone shaping controls specially tailored for acoustic-electric guitars, high-quality reverb, and chorus, as well as a built-in feedback eliminator. Quite simply, this compact pedal is an acoustic musician's best friend.

Features
Compact acoustic instrument processing pedal developed exclusively for gigging acoustic-electric guitarists.

Footswitchable Bi-Stereo Chorus offers split-frequency processing (Low and High) for natural, smooth chorus effect.

Studio-quality reverb provides clear, deep reverberation specially tuned for acoustic guitar.

Newly developed "Bottom" and "Top" controls offer variable tonal shaping to eliminate "dry" sound from piezo pickups and add rich, resonant lows and brilliant highs as desired.

Special Guitar Amp output provides proper impedance and tonal balance for great-sounding connection to a guitar amp; stereo balanced outputs allow for direct connection to PA.

Dual Anti-Feedback function can be manually set to eliminate feedback or can be set to "Auto" mode via footpedal.

Battery or AC-powered for maximum flexibility.

Adding Rich Expression to Your Acoustic-Electric Guitar
The AD-3 Acoustic Instrument Processor pedal solves the age-old acoustic-electric guitar dilemma (i.e., thin tone and feedback problems) by giving guitarists specially developed tone, reverb, chorus, and Anti-Feedback control in a high-quality compact pedal. Its built-in footswitchable 2x2 Chorus provides a smooth effect that can be precisely tailored using an onboard depth control, adding just the right amount of stereo sparkle. The reverb is exceptionally deep - perfect for simulating a mic'd acoustic guitar - and can also be adjusted via a depth knob.

But where the AD-3 really shines is in its onboard tone controls, aptly named "Bottom" and "Top." Far more effective than simple EQ knobs, these controls incorporate sophisticated filters that work differently when boosted and cut. The Top knob boosts high-end brilliance or can be used to eliminate the thin, dry sound characteristic of most piezo and magnetic pickups, making your tone more natural. The Bottom knob tunes the low frequencies to add the desired amount of rich body resonance. Combined with the AD-3's built-in Anti-Feedback controls - which can be manually set or set via footswitch to "Auto" - this pedal offers the perfect tone-enhancing, feedback-eliminating solution.

Flexible Connections
The AD-3 offers an adjustable Input control for impedance-matching to a variety of acoustic-electric pickup types. Similarly, its Output section provides a choice between stereo balanced outputs for direct connection to a PA system, or a dedicated Guitar Amp output for plugging in to a guitar amplifier.

Technical Description

AD Conversion: 20-bit Modulation

DA Conversion: 20-bit Modulation

Sampling Frequency: 44.1 kHz

Nominal Input Level: -10 dBm

Input Impedance: 4.7 M

Nominal Output Level: Output: -10 dBm into 10 k, Balanced output: -10 dBm into 600

Controls: Knobs (Level, Anti-feedback, Bottom, Top, 2x2 Chorus, Reverb), Switches (Anti-feedback Auto Pedal, Chorus Pedal, Power, Output Select)

Indicators: Power, Peak, Anti-feedback Auto, Chorus

Connectors: Input (1/4 in.), Outputs (L, R; Õ in. TRS), DC In

Power Supply: DC9V Dry Batteries (LR6 (AA) x 6), AC Adapter

Current Draw: 90mA

Dimensions: 170 (W) x 156 (D) x 70 (H) mm/6-3/4 x 6-3/16 x 2-13/16 in.

Weight (including batteries): 1 kg / 2 lbs. 4 oz.

Accessories: Dry Batteries (LR6 (AA) x 6)

Option: PSA Series AC Adapter

*0 dBm=0.775 Vrms

Note: Specifications are subject to change without notice.
