Product Description

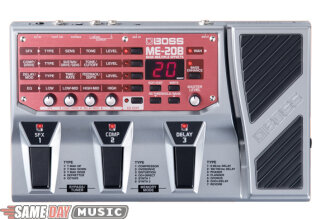

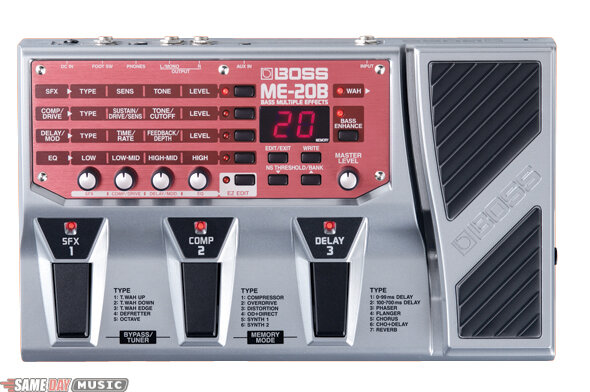

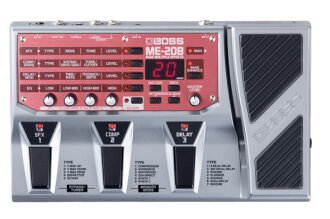

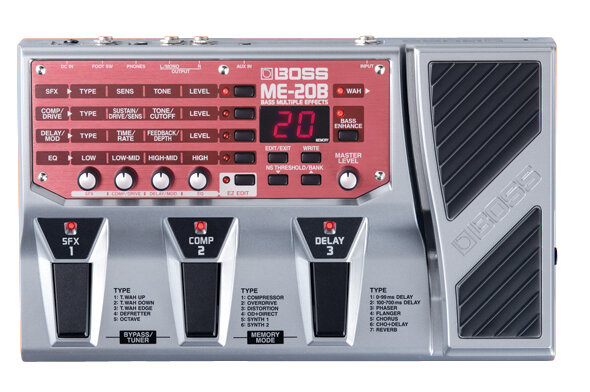

The ME-20B is a powerful multi-effects unit optimized for live performance. With the same performance-based design as its guitar-focused ME-20 counterpart, the ME-20B is aimed at the performing bassist who wants stage-friendly effects and solid construction at an affordable price. Mix, match, and customize a wide variety of effects, including compressor, overdrive, distortion, T-Wah, phaser, flanger, chorus, delay, reverb, defretter, synth, and more.

Features
Performance-based bass processor for the player who wants an easy-to-use interface with BOSS tone and quality

New super-tough metal chassis with 3 footswitches, 5 realtime control knobs, and expression pedal

EZ Edit for quick sound creation

Unique effects such as Synth, Octave, Defretter, and more

BASS ENHANCE function for instant presence boost

30 user memory locations in addition to realtime operation

Battery or AC powered

Technical Description

Specifications

AD Conversion: 24-bit + AF method (*)
DA Conversion: 24-bit
Sampling Frequency: 44.1 kHz
Patches: 30 (user)
Nominal Input Level: INPUT: -10 dBu, AUX IN: -18 dBu
Input Impedance: INPUT: 1 M ohm, AUX IN: 22 k ohms
Nominal Output Level: -10 dBu
Output Impedance: 2 k ohms

Display: 7 segments, 2 characters LED
Controls: SFX/1 pedal, COMP/2 pedal, DELAY/3 pedal, Expression pedal
Connectors: INPUT jack (1/4 inch phone type), AUX IN jack (Stereo miniature phone type), OUTPUT jacks L/MONO, R (1/4 inch phone type), PHONES jack (Stereo 1/4 inch phone type), FOOT SW jack (1/4 inch TRS phone type), AC Adaptor jack

Power Supply: DC 9 V: Dry battery LR6/R6 (AA) type x 6, AC Adaptor (PSA series: Optional)

Current Draw: 90 mA * Expected battery life under continuous use: Alkaline: 13 hours, Carbon: 3.5 hours (These figures will vary depending on the actual conditions of use.)

Accessories: Owner's Manual, Dry battery LR6 (AA) type (alkaline) x 6, Roland Service (Information Sheet)

Options: AC Adaptor: PSA series, Footswitch: FS-6, FS-5U, Connection Cable: Roland PCS-31 (Stereo 1/4 inch phone plug - 1/4 inch phone plug x 2)

Size and Weight
Width: 294 mm (11-5/8 in.)
Depth: 179 mm (7-1/16 in.)
Height: 54 mm (2-1/8 in.)

Weight: 1.5 kg (3 lbs. 5 oz.)

(*) AF method (Adaptive Focus method) This is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters
* The specifications are subject to change without notice.

Catalog Description

Powerful, affordable multi-effects unit@Rugged metal chassis@Unique bass effects; Synth, Octave, Defretter@5 realtime control knobs@Battery or AC powered
