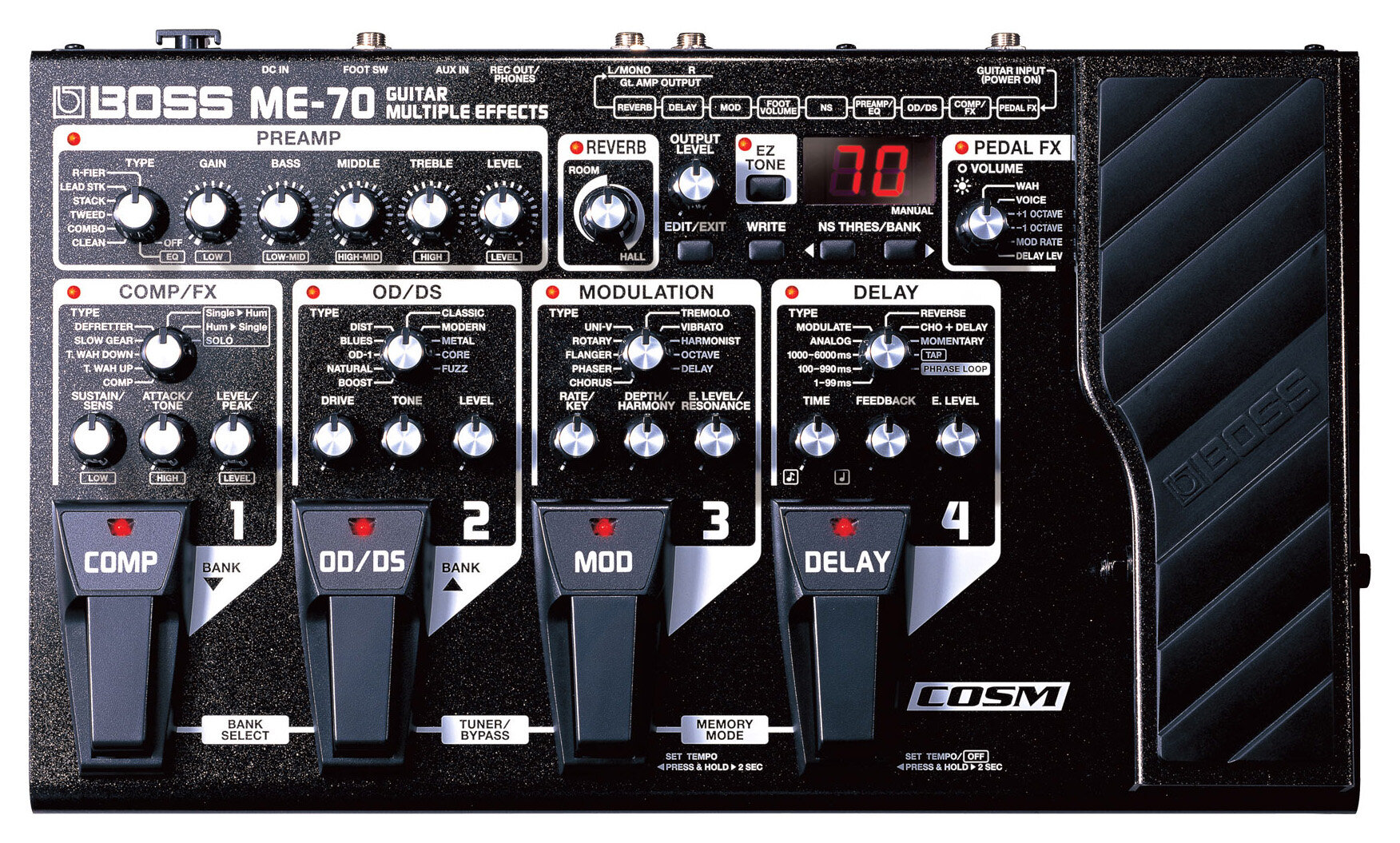

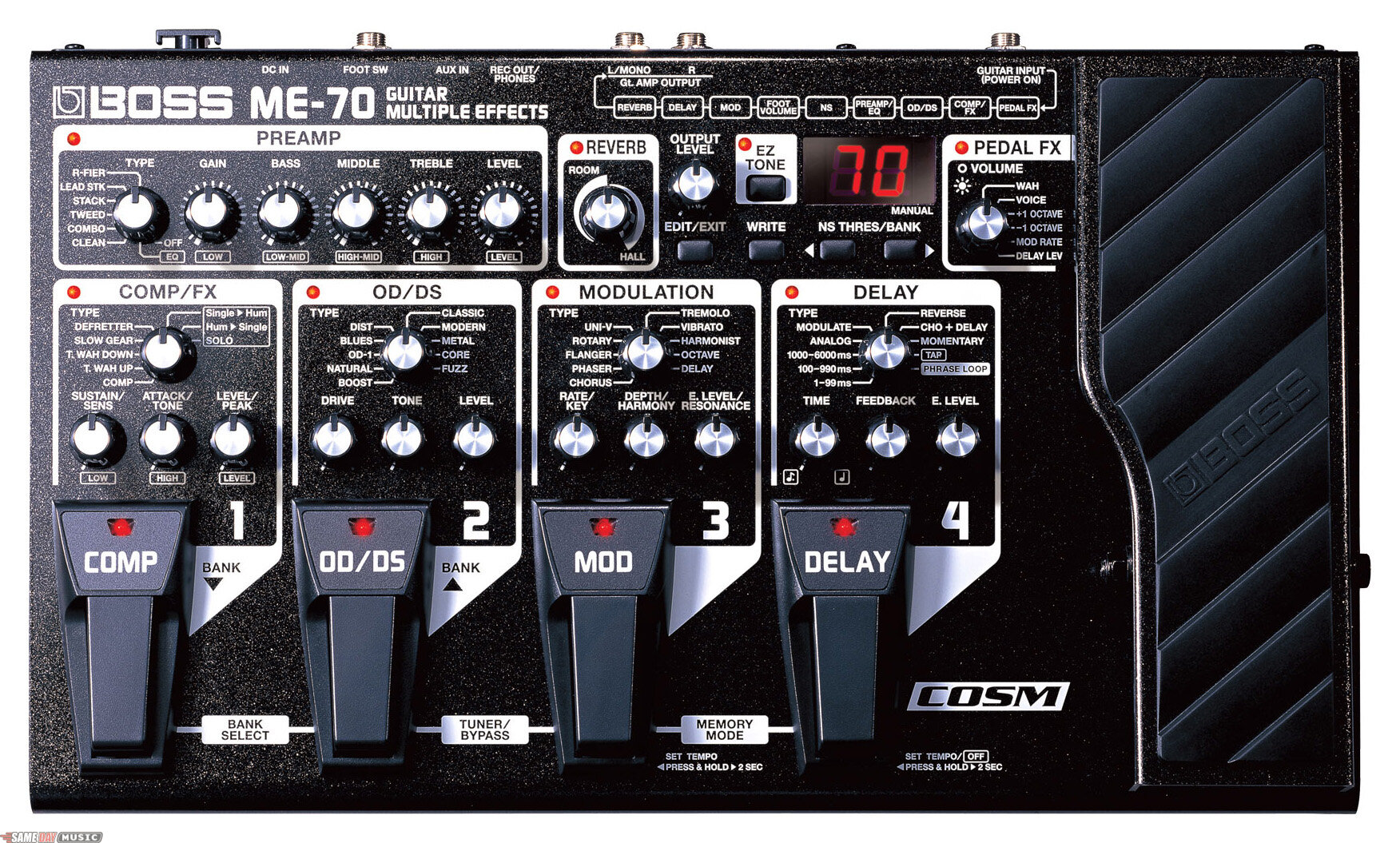

Boss ME-70 Multi-Effect Guitar Pedal

A multi-effects unit that's as easy as a stompbox -- that's the beauty of the ME-70. The friendly, knob-laden design makes tone creation a snap, but with a powerful COSM(R) Amp section derived from the GT-10, the ME-70 takes the "EZ effects" concept to new heights.

Features
- Dedicated knobs for each parameter for fast, friendly operation
- COSM Preamp section derived from GT-10 and Legend series
- EZ Tone for quick, easy editing
- Four footswitches and Expression pedal
- Phrase Loop function in Delay section, with 38 seconds of recording time
- Battery or AC (optional PSA-120s) operation

Same Day Music is an authorized dealer of Boss products.

AD Conversion: 24-bit + AF method*
DA Conversion: 24-bit
Sampling Frequency: 44.1 kHz
Patch: 36 (User) + 36 (Preset)
Effect Type: COMP/FX (Compressor/Effect): COMP, T.WAH UP, T.WAH DOWN, SLOW GEAR, DEFRETTER, Single>Hum, Hum>Single, SOLO

OD/DS (Overdrive/Distortion): BOOST, NATURAL, OD-1, BLUES, DIST, CLASSIC, MODERN, METAL, CORE, FUZZ

MODULATION: CHORUS, PHASER, FLANGER, ROTARY, UNI-V, TREMOLO, VIBRATO, HARMONIST, OCTAVE, DELAY

DELAY: 1-99 ms, 100-990 ms, 1000-6000 ms, ANALOG, MODULATE, REVERSE, CHO + DELAY, MOMENTARY, TAP, PHRASE LOOP

PREAMP: OFF, EQ, CLEAN, COMBO, TWEED, STACK, LEAD STK, R-FIER

NS (Noise Suppressor)

REVERB: ROOM, HALL

PEDAL FX (Pedal Effect): WAH, VOICE, +1 OCTAVE, -1 OCTAVE, MOD RATE
Nominal Input Level

GUITAR INPUT: -10 dBu

AUX IN: -18 dBu

Input Impedance:
- GUITAR INPUT: 1M ohm
- AUX IN: 22k ohms

Nominal Output Level: -10 dBu

Output Impedance: 2k ohms

Display: 7 segments, 2 digits LED

Power Supply:
- DC 9 V Dry Batteries (R6/LR6(AA) type) x 6
- AC Adaptor (BOSS PSA series: sold separately)

Current Draw: 130 mA

Expected battery life under continuous use:
- Alkaline: 12 hours
- Carbon: 3.5 hours

* These figures will vary depending on the actual conditions of use.

Accessories Included: Owner's Manual, Dry Batteries (Alkaline: LR6 (AA) type) x 6, Roland Service (Information Sheet)

Options:
- AC Adaptor: BOSS PSA series
- Foot Switch: BOSS FS-5U, FS-6

Width:
- 384 mm
- 15-1/8 inches

Depth:
- 229 mm
- 9-1/16 inches

Height:
- 74 mm
- 2-15/16 inches

Weight:
- 3.5 kg
- 7 lbs. 12 oz.

Maximum height ... 100 mm/3-15/16 inches

Weight includes batteries.

*AF method (Adaptive Focus method) is a proprietary method from Roland
*The specifications are subject to change without notice.

Same Day Music is an authorized dealer of Boss products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 10 lbs

Shipping Dimensions: 18 x 13 x 6 in
