    Cascade Microphones Knuckle Head Short Ribbon Mic with Lundahl LL2912 Transformer

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Cascade Microphones Knuckle Head Short Ribbon Mic with Lundahl LL2912 Transformer Product Description

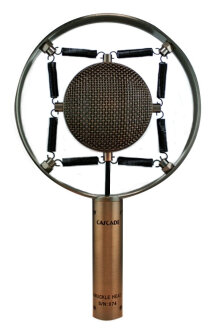

    The Knuckle Head with Lundahl LL2912 Transformer is a passive ribbon microphone that combines the acoustic components of the successful Fat Head ribbon with a shockmounted headbasket design reminiscent of early broadcast microphones.

    The ribbon motor uses Neodymium magnets surrounding a 2.2-micron corrugated aluminum ribbon measuring 5mm x 45mm. The ribbon is mounted symmetrically within the magnetic gap, making the Knuckle Head suitable as the "mid" mic in a MS setup -- the front and back of the mic should produce the same sound.

    The ribbon motor and headbasket are suspended within a 6-inch diameter metal hoop by eight springs. The output transformer is located within the cylindrical shaft below the shockmount hoop.

    Includes:
    - KNUCKLE HEAD ribbon microphone
    - Aluminum case
    - Premium adjustable mounting clip
    - Micro-fiber cleaning cloth
    - Specifications and typical measurement report

    Same Day Music is an authorized dealer of Cascade Microphones products.

    Cascade Microphones Knuckle Head Short Ribbon Microphone Technical Description

    - Type: Ribbon (velocity) Microphone
    - Ribbon type & Dimensions: 99% Pure aluminum, 2.2 micron, 1 3/4" (L) X 3/16" (W)
    - Polar pattern: Figure 8 Symmetrical design
    - Sensitivity: -56 db +/- 2 dB (0 dB=1V/Pa)
    - Frequency response: See PDF below
    - Output Impedance: <=200 Ohms
    - Recommended load impedance: >1000 Ohms
    - Max.SPL (1% THD @1000 Hz): 165 dB
    - Connector: 3-Pin male XLR
    - Size: Diameter: O.D. grill:3", O.D. ring:6", O.D. body:1", Overall length:10"

    Same Day Music is an authorized dealer of Cascade Microphones products.
