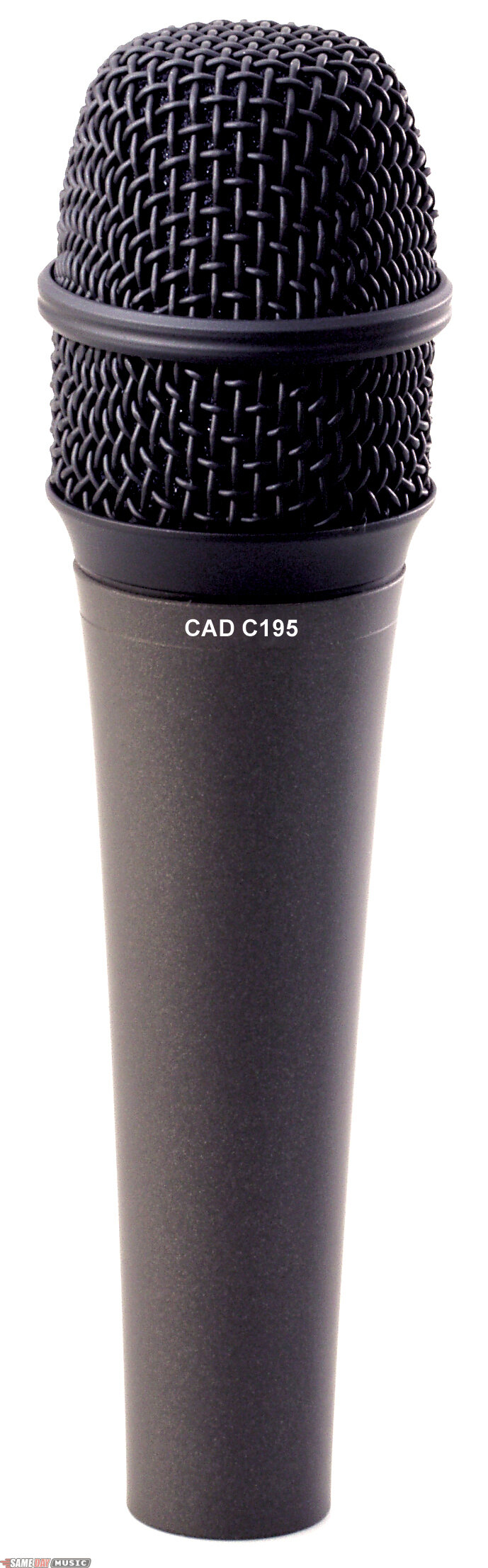

CAD C195 Handheld Vocal Condenser Microphone
Phantom Powered Cardioid Condenser Mic. 50Hz - 19kHz Frequency Response. 110Db Dynamic Range.
Product rated 8.1 out of 10 (9 ratings)
Read Reviews >>
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Frequency Response Graph
Dimensions
PRODUCT DESCRIPTION
The CAD C195 is a superior low-noise, electret condenser cardioid microphone designed for professional vocalists and musicians. The CAD C195 provides the performance and features to satisfy today's most demanding professionals.
The wide and flat frequency response of the CAD C195 provides unsurpassed natural transparent sound quality. The cardioid pickup pattern minimizes annoying feedback (when used close to sound reinforcement speakers and monitors) and reduces the pickup of unwanted off-axis sounds. A transformerless electronic design provides optimum low frequency response and low distortion. An effective internal multistage pop filter minimizes wind and breath noise.
The CAD C195 has a Flex-Form (tm) hardened steel grille screen that dramatically resists deformation while greatly reducing any risk of adverse performance caused by a bent or dented ball screen. This unique ability to retain its original shape assures that the CAD C195 will maintain its attractive appearance.
The CAD C195 features the CAD exclusive (I.N.R.-3 tm) Impact Noise Rejection system. Our proprietary rubber shock mount isolates the transducer from the barrel, thus dramatically reducing cable, stand and handling noise. The need for any external shock mounting device is virtually eliminated.
The low-frequency response of the CAD C195 may be enhanced by increasing or decreasing the distance from the sound source. This phenomenon is technically known as proximity effect. Nominal or flat response is generated at a distance of 24 inches or more. However, as the distance to the sound source decreases, the bass sensitivity increases, providing a solid, robust character.
The CAD C195 is supplied complete with a zippered vinyl protective pouch and a snap-in microphone swivel-mount.
The wide and flat frequency response of the CAD C195 provides unsurpassed natural transparent sound quality. The cardioid pickup pattern minimizes annoying feedback (when used close to sound reinforcement speakers and monitors) and reduces the pickup of unwanted off-axis sounds. A transformerless electronic design provides optimum low frequency response and low distortion. An effective internal multistage pop filter minimizes wind and breath noise.
The CAD C195 has a Flex-Form (tm) hardened steel grille screen that dramatically resists deformation while greatly reducing any risk of adverse performance caused by a bent or dented ball screen. This unique ability to retain its original shape assures that the CAD C195 will maintain its attractive appearance.
The CAD C195 features the CAD exclusive (I.N.R.-3 tm) Impact Noise Rejection system. Our proprietary rubber shock mount isolates the transducer from the barrel, thus dramatically reducing cable, stand and handling noise. The need for any external shock mounting device is virtually eliminated.
The low-frequency response of the CAD C195 may be enhanced by increasing or decreasing the distance from the sound source. This phenomenon is technically known as proximity effect. Nominal or flat response is generated at a distance of 24 inches or more. However, as the distance to the sound source decreases, the bass sensitivity increases, providing a solid, robust character.
The CAD C195 is supplied complete with a zippered vinyl protective pouch and a snap-in microphone swivel-mount.
TECHNICAL DESCRIPTION
Specifications
Generating Element: Electret condenser (Phantom Powered)
Polar Pattern: Unidirectional (Cardioid)
Frequency Response: 50 Hz - 18 kHz
Output Level: Open Circuit
Voltage: -55 dB (0 dB = 1 volt per microbar)
Impedance: 500 ohms
Dynamic Range: 110 dB
Equivalent Noise Level: Less than 22 dB, A-weighted
Maximum SPL: 132 dB (1% THD, open circuit)
Supply Voltage: 9 - 52 Vdc, positive pins 2 & 3 reverse-polarity protected
Current Required: Less than 5 mA over operating voltage range
Phasing: Positive pressure on diaphragm generates a positive voltage on pin 2 relative to pin 3
Grille Screen: Hardened Steel Mesh
Case: Steel and die cast zinc alloy
Finish: Durable soft feel, non-slip, titanium gray body, midnight black screen
Generating Element: Electret condenser (Phantom Powered)
Polar Pattern: Unidirectional (Cardioid)
Frequency Response: 50 Hz - 18 kHz
Output Level: Open Circuit
Voltage: -55 dB (0 dB = 1 volt per microbar)
Impedance: 500 ohms
Dynamic Range: 110 dB
Equivalent Noise Level: Less than 22 dB, A-weighted
Maximum SPL: 132 dB (1% THD, open circuit)
Supply Voltage: 9 - 52 Vdc, positive pins 2 & 3 reverse-polarity protected
Current Required: Less than 5 mA over operating voltage range
Phasing: Positive pressure on diaphragm generates a positive voltage on pin 2 relative to pin 3
Grille Screen: Hardened Steel Mesh
Case: Steel and die cast zinc alloy
Finish: Durable soft feel, non-slip, titanium gray body, midnight black screen
