CAD E60 Equitek Cardioid Microphone
10dB non-capacitive pad. 4 position hi-pass filter. Discrete linear power supply.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

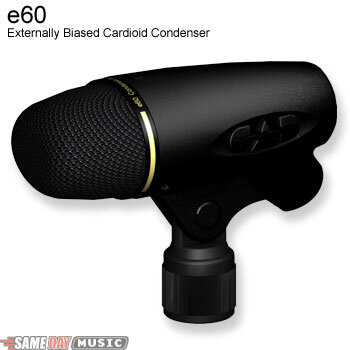

CAD E60 Equitek Cardioid Microphone
From the subtlest notes to a blast of brass, the e60 will capture the sound with unprecedented detail. Sophisticated electronics and a precise gold sputtered capsule provide clarity, and incredible versatility.
Features:
16mm, 24k Gold sputtered externally biased condenser capsule.
10dB non-capacitive pad
4 position hi-pass filter - flat, 40Hz, 80Hz, and 120Hz
CAD's proprietary discrete linear power supply for efficient low noise and linear power regulation, allows greater dynamic range and lower equivalent self
From the subtlest notes to a blast of brass, the e60 will capture the sound with unprecedented detail. Sophisticated electronics and a precise gold sputtered capsule provide clarity, and incredible versatility.
Features:
16mm, 24k Gold sputtered externally biased condenser capsule.
10dB non-capacitive pad
4 position hi-pass filter - flat, 40Hz, 80Hz, and 120Hz
CAD's proprietary discrete linear power supply for efficient low noise and linear power regulation, allows greater dynamic range and lower equivalent self
TECHNICAL DESCRIPTION
Type: Front address, externally biased condenser
Frequency response: 30Hz - 20kHz (with low end boost)
Polar Pattern: Cardioid
Impedence: Low (300 ohms nominal)
Open Circuit Voltage: -54dB (0dB = 1 volt per microbar)
Dynamic Range: 125dB
Equivalent Noise Level: 13dB Equivalent SPL, A weighted
Maximum SPL: 138dB SPL (with pad on)
Total Harmonic Distortion: Less than 0.15%
Powering: 24 - 52 Volts Phantom Power
Connector: Gold plated 3-pin XLR type
Finish: Durable Black 'leather feal' uerethane housing with black grille screen
Net Weight: 9.5oz. (270 grams)
Frequency response: 30Hz - 20kHz (with low end boost)
Polar Pattern: Cardioid
Impedence: Low (300 ohms nominal)
Open Circuit Voltage: -54dB (0dB = 1 volt per microbar)
Dynamic Range: 125dB
Equivalent Noise Level: 13dB Equivalent SPL, A weighted
Maximum SPL: 138dB SPL (with pad on)
Total Harmonic Distortion: Less than 0.15%
Powering: 24 - 52 Volts Phantom Power
Connector: Gold plated 3-pin XLR type
Finish: Durable Black 'leather feal' uerethane housing with black grille screen
Net Weight: 9.5oz. (270 grams)
