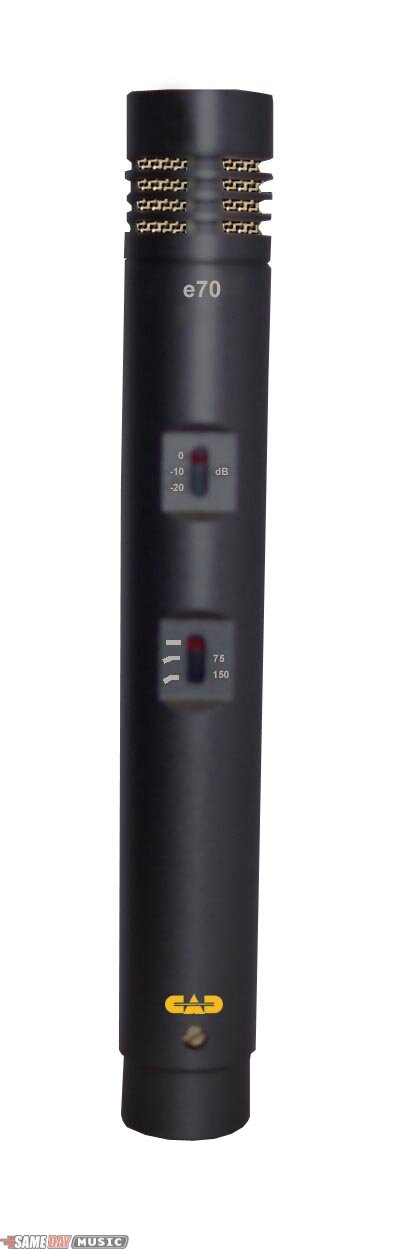

CAD e70 Modular Dual Element Condenser Instrument Microphone

If you need to get one small condenser for your project studio, the e70 has all of the versatility you could ever ask for. Includes modules for multiple polar patterns, high-pass filter, and pad.

This product has been discontinued or is no longer sold by SameDayMusic.

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

FIND SIMILAR PRODUCTS

CAD e70 Modular Dual Element Condenser Microphone Product Description

Same Day Music is an
authorized CAD dealer

Packaged in a small, rugged metal housing, the equitek e70 condenser microphone provides transparent, accurate acoustic capture. The low mass 1/2 in. gold sputtered diaphragm makes the e70 the preferred choice for high frequency sources rich in transients such as cymbal, hi-hat, strings, acoustic guitar, woodwinds and piano. The transformerless design reduces low frequency distortion at high sound pressure levels. The 3-position hi-pass filter and 3-position pad provide the versatility required in demanding live sound and studio applications. The interchangeable capsules provide both cardioid and omnidirectional pickup patterns for greater flexibility. The e70's accuracy, high SPL capability and size make it a valuable tool in the professional audio environment.

Features:
Preferred choice for high frequency sources rich in transients such as cymbal, hi-hat, strings, acoustic guitar, woodwinds and piano

3-position hi-pass filter and 3-position pad

High SPL capability and size make it a valuable tool in the professional audio environment

Same Day Music is an authorized dealer of CAD products.

CAD e70 Technical Description

Operating Principle: End address condenser with interchangeable capsules

Frequency Response: 20Hz - 20kHz

Polar Pattern: Using Cardioid Capsule:
Sensitivity: -40dBV (10mV) @ 1 Pa
Self Noise : 23dB, A-weighted
Maximum SPL: 155dB, 20dB pad engaged

Polar Pattern: Using Omnidirectional Capsule:
Sensitivity: -36dBV (16mV) @ 1 Pa
Self Noise: 19dB, A-weighted
Maximum SPL: 154dB, 20dB pad engaged

Power Requirements: Phantom P48, 2mA

Connector: 3-pin XLR type

Polarity: Inward pressure on the diaphragm produces positive voltage on pin 2

Dimensions: 7/8 in. (22 mm) x 6 1/8 in. (156 mm)

Net Weight: 7.6 oz. (216 grams)

Included Accessories: Shockmount, mic clip and windscreen

Same Day Music is an authorized dealer of CAD products.

CAD e70 Modular Dual Element Condenser Instrument Microphone

This product has been discontinued or is no longer sold by SameDayMusic.

Shop our website for related products:

CAD e70 Modular Dual Element Condenser Microphone Product Description

CAD e70 Technical Description

User Reviews for CAD e70 Modular Dual Element Condenser Microphone
