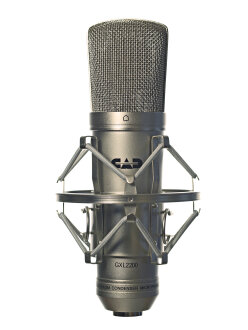

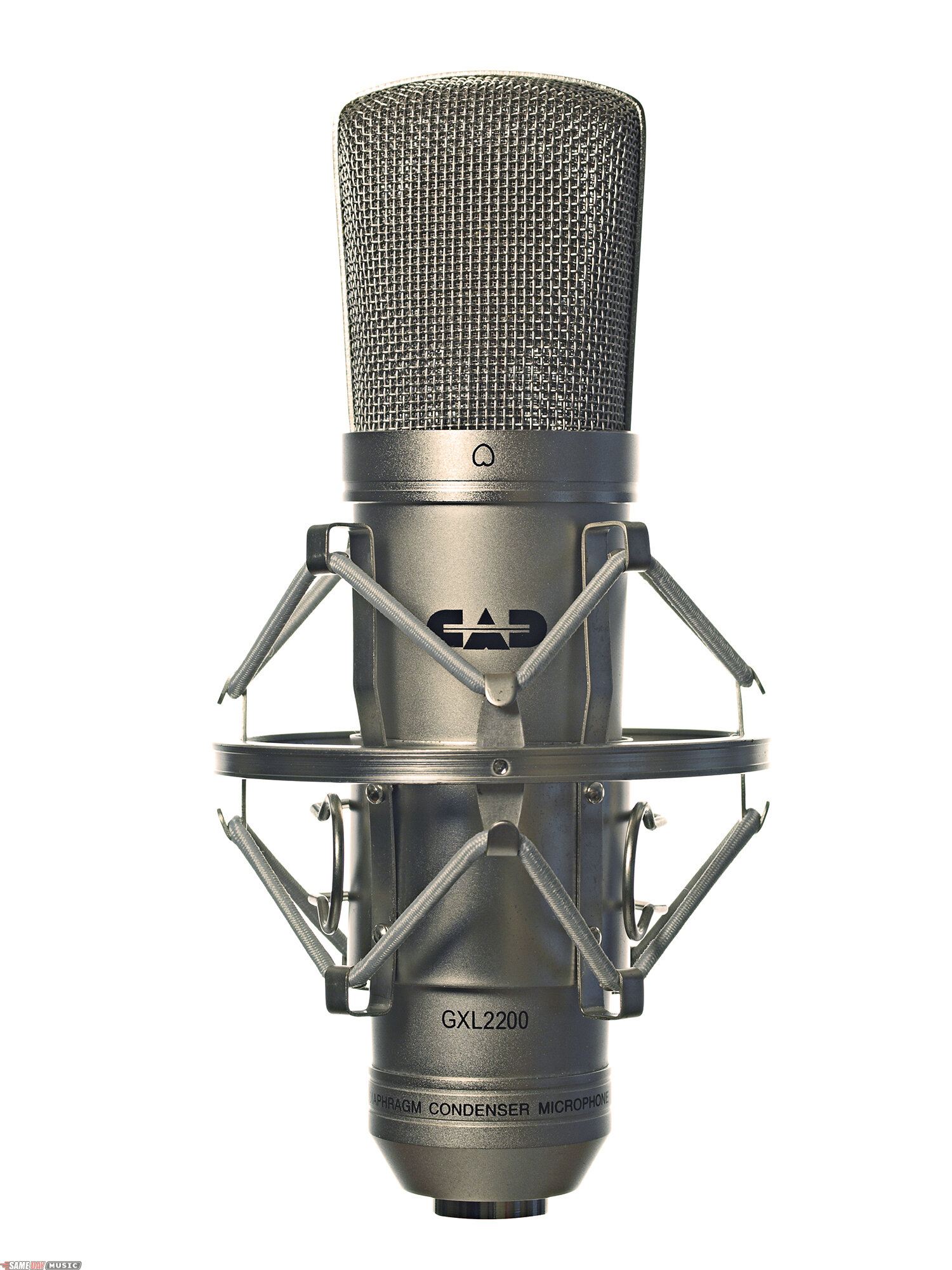

CAD GXL2200 Condenser Microphone
1 in. gold diaphragm.
Product rated 8.7 out of 10 (13 ratings)
Read Reviews >>
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Frequency Response Graph
Dimensions
PRODUCT DESCRIPTION
The GXL2200 is a large diameter, fixed cardioid pattern, condenser microphone. High sensitivity and low distortion make this microphone an ideal candidate for recording, broadcast, sound reinforcement including vocal and instrument applications. The capsule in the GXL2200 features a 1 in. gold vapor deposited diaphragm.
Power
The GXL2200 requires standard 48-volt phantom power
Swivel Mount
The GXL2200 comes with a swivel mount that will fit any standard 5/8 in. x 27 threaded microphone stand. The swivel mount can be removed by unscrewing the knurled ring on the bottom of the microphone.
CAD Quality
The GXL2200 microphones are audio tested and inspected under the direction of CAD Professional Microphones, offering an exceptional level of value.
Power
The GXL2200 requires standard 48-volt phantom power
Swivel Mount
The GXL2200 comes with a swivel mount that will fit any standard 5/8 in. x 27 threaded microphone stand. The swivel mount can be removed by unscrewing the knurled ring on the bottom of the microphone.
CAD Quality
The GXL2200 microphones are audio tested and inspected under the direction of CAD Professional Microphones, offering an exceptional level of value.
TECHNICAL DESCRIPTION
Generating Element: Externally-Biased True Condenser
Polar Pattern: Unidirectional (Cardioid)
Frequency Response: 30 Hz - 20 kHz
Sensitivity: -53dB 0dB=1V/uBar @ 1 kHz
Impedance: Less than 200 ohms
Equivalent Noise Level: Less than 20dB (A-weighted)
Power: 48 Volts Phantom Power
Connector: 3-pin XLR type
Phasing: Positive diaphragm pressure produces a positive voltage on pin 2 with respect to pin 3.
Dimensions: 2.17 in. x 7.72 in. (55mm x 196mm), Mic only
Weight: 14.1 oz. (400 grams), Mic only
Polar Pattern: Unidirectional (Cardioid)
Frequency Response: 30 Hz - 20 kHz
Sensitivity: -53dB 0dB=1V/uBar @ 1 kHz
Impedance: Less than 200 ohms
Equivalent Noise Level: Less than 20dB (A-weighted)
Power: 48 Volts Phantom Power
Connector: 3-pin XLR type
Phasing: Positive diaphragm pressure produces a positive voltage on pin 2 with respect to pin 3.
Dimensions: 2.17 in. x 7.72 in. (55mm x 196mm), Mic only
Weight: 14.1 oz. (400 grams), Mic only
CATALOG DESCRIPTION
Sensitive large-diaphragm condenser mic for studio or stage@Cardioid polar pattern@30Hz - 20kHz frequency response
