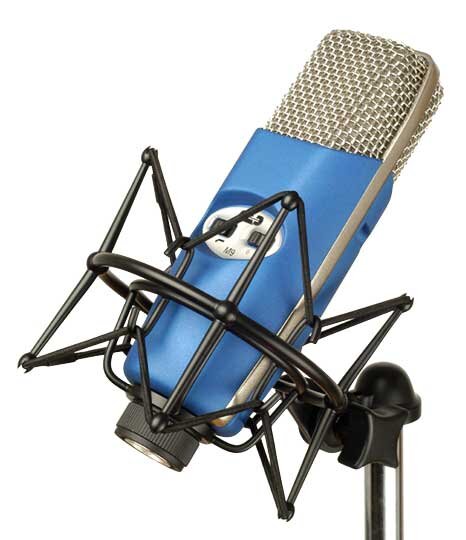

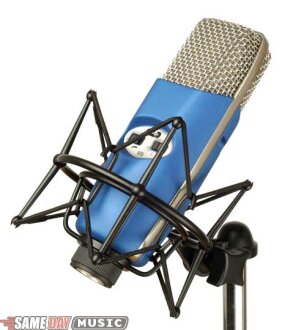

CAD M9 Tube Microphone with Case and Shock Mount
Cardioid tube mic. Includes accessories.
Product rated 9.0 out of 10 (2 ratings)
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Frequency Response Graph
Polar Pattern
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The M9 is a cardioid single tube externally biased condenser microphone that features servo-valve technology. It's a natural bridge between the valve technology developed for CAD's VX2 microphone and the servo op-amp technology developed for their M-Series mics. The M9's head amp is a 12AX7 tube in a circuit optimized for super wide dynamic range and low noise. The output stage (balanced high speed dual op-amp) allows for long cables without affecting microphone performance.
Included Accessories
30 ft. professional quality 7 conductor cable with gold plated XLR male and female connectors
MV200 Analog Power Supply
Line Cord
Rugged carrying case
Suspension Shock Mount
Included Accessories
30 ft. professional quality 7 conductor cable with gold plated XLR male and female connectors
MV200 Analog Power Supply
Line Cord
Rugged carrying case
Suspension Shock Mount
TECHNICAL DESCRIPTION
Type: Side address, true condenser
Capsule: 1.1 in. inside diameter, gold sputtered
Frequency Response:
- Capsule: 10Hz - 20 kHz.
- Head Amplifier: 4Hz - 200KHz
Polar Pattern: Cardioid
Impedance: Low (200 ohms nominal)
Dynamic Range:
- 118.5 dB (Noise floor to max SPL @ less than 0.2% THD)
- 120 dB (Noise floor to max SPL @ less than 5.0% THD)
Equivalent Noise Level: 15 dB Equivalent SPL, A-weighted
Maximum Output Level: +8 dBV (@ 140 dB SPL, less than 5.0% THD)
Maximum SPL:
- 154.5 dB SPL (0dB pad)
- 156 dB SPL (-16dB pad)
Switches:
- Hi-Pass: (3dB @ 100Hz)
- Pad: 0dB & -16dB (Non-Capacitive)
Capsule Capacitance: 68 pF
Powering:
- Included MV200 analog power supply
- Connector: 7 pin XLR, on microphone and power supply
3 pin XLR, audio out from power supply
Cable: Professional quality 7 conductor, 30 ft. long, gold plated connectors
Finish: Blue housing, satin nickel plated screen assembly with black accents
Capsule: 1.1 in. inside diameter, gold sputtered
Frequency Response:
- Capsule: 10Hz - 20 kHz.
- Head Amplifier: 4Hz - 200KHz
Polar Pattern: Cardioid
Impedance: Low (200 ohms nominal)
Dynamic Range:
- 118.5 dB (Noise floor to max SPL @ less than 0.2% THD)
- 120 dB (Noise floor to max SPL @ less than 5.0% THD)
Equivalent Noise Level: 15 dB Equivalent SPL, A-weighted
Maximum Output Level: +8 dBV (@ 140 dB SPL, less than 5.0% THD)
Maximum SPL:
- 154.5 dB SPL (0dB pad)
- 156 dB SPL (-16dB pad)
Switches:
- Hi-Pass: (3dB @ 100Hz)
- Pad: 0dB & -16dB (Non-Capacitive)
Capsule Capacitance: 68 pF
Powering:
- Included MV200 analog power supply
- Connector: 7 pin XLR, on microphone and power supply
3 pin XLR, audio out from power supply
Cable: Professional quality 7 conductor, 30 ft. long, gold plated connectors
Finish: Blue housing, satin nickel plated screen assembly with black accents
REVIEWS
Product rated 9.0 out of 10 (2 ratings)
