    CAD STAGE7 Dynamic 7-Microphone Drum Pack

    The CAD Stage7 is a 7-microphone drum package complete with microphone clips and fashioned to mic up even the largest 7-piece drum sets.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 160N-X4CB

    Web Item #CADSTAGE7

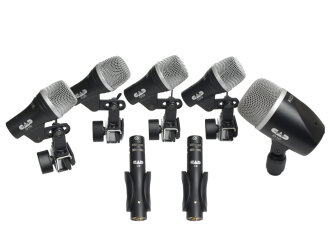

    CAD STAGE7 7-Microphone Drum Package
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    CAD Warranty: If you have additional warranty questions, please call the manufacturer at 800-762-9266
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Today
    •
    • 2 Day: $14
    • Overnight: $34
    SpeedPlay: on orders of
    $249
    $149.95 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    CAD Stage7 7-Microphone Drum Package Product Description

    The CAD Stage7 is a 7-microphone drum package complete with microphone clips and fashioned to mic up even the largest 7-piece drum sets.

    7 Piece Drum Mic Pack

    - 3x D29 dynamic tom mics with integrated drum mounts
    - 1 x D19 dynamic snare mic with integrated drum mount
    - 1 x D10 dynamic large-diaphragm kick drum mic with integrated mic clip
    - 2 x C9 instrument condenser mics for hi-hats/cymbals with mic clips
    - Protective vinyl carrying case with strap included

    D29 Cardioid Dynamic Percussion Microphone

    The D29 is a cardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of tom-tom drums and other acoustic percussive instruments. The cardioid polar pattern provides off-axis rejection crucial for on-stage clarity.

    Although designed with percussion in mind, excellent results are also obtained when used on most electrical and acoustical instruments.

    The integrated drum clip is designed to facilitate rapid, optimal placement.

    Applications

    - Rack toms
    - Floor toms
    - Guitar/bass cabinets
    - Electrical and acoustic instruments

    D19 Supercardioid Dynamic Percussion Microphone

    D19 is a supercardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of snare drum and other acoustic percussive instruments. The supercardioid polar pattern provides off-axis rejection crucial for on-stage clarity. Although designed with percussion in mind, excellent results are also obtained when used on most electrical and acoustical instruments. The integral drum clip is designed to facilitate rapid, optimal placement.

    Applications

    - Snare drum
    - Guitar/bass cabinets
    - Electrical and acoustical instruments

    D10 Cardioid Dynamic Kick Drum Microphone

    The D10 is a cardioid, moving-coil dynamic microphone specifically designed and carefully equalized for kick drum capture and reinforcement. Special attention has been given to enhancing "thump", "crack" and "click" while reducing "boxiness". Although designed for kick drum, excellent results are also obtained when used on floor toms, electric guitar and electric bass cabinets.

    The die-cast metal body and hardened protective steel screen provide rugged durability. Integrated swivel mount is included.

    Applications

    - Kick drum
    - Floor toms
    - Guitar cabinets
    - Bass cabinets

    C9 Cardioid Condenser Instrument Microphone

    Packaged in a small, rugged, all-metal body, the C9 cardioid condenser microphone is designed primarily for overhead drum miking. The cardioid polar pattern focuses sensitivity to the front of the microphone while minimizing sources arriving from the rear. Transformerless line-driver circuitry improves transient agility while maintaining phase alignment for clear detail. The integral polymer isolation mechanically decouples the capsule from the body minimizing acoustical conduction from the floor through the mic stand. Although designed for drum overheads, the C9 also excels when used on classical stringed instruments, acoustic guitars, and folk instruments.

    Shock-isolating swivel mount is included. P12 (12V), P24 (24V), or P48 (48V) phantom power is required.

    Applications

    - Overheads
    - Classical strings
    - Acoustic guitar
    - Folk instruments>

    Same Day Music is an authorized dealer of CAD products.

    CAD STAGE7 7-Microphone Drum Package Technical Description

    D29 Specifications

    - Operating Principle: Moving-coil dynamic
    - Polar Pattern: Cardioid
    - Frequency Response: 90Hz -13KHz
    - Sensitivity: 53dBV (2.2mV) @ 1 Pa
    - Impedance: 560 ohms
    - Weight: 6.5oz [0.19Kg]
    - RF Immunity: Meets or exceeds EN55103-2, E1-E4
    - RoHS: Compliant

    D19 Specifications

    - Operating Principle: Moving coil dynamic
    - Polar Pattern: Supercardioid
    - Frequency Response: 90Hz -14KHz, -6dB
    - Sensitivity: 56dBV (1.6mV) @ 1 Pa
    - Impedance: 300 ohms
    - Weight: 6.5oz [0.19Kg]
    - RF Immunity: Meets or exceeds EN55103-2, E1-E4
    - RoHS: Compliant

    D10 Specifications

    - Operating Principle: Moving-coil dynamic
    - Polar Pattern: Cardioid
    - Frequency Response: 50Hz -16KHz
    - Sensitivity: 67dBV (0.45mV) @ 1 Pa
    - Impedance: 60 ohms
    - Weight: 12.75oz [0.36Kg]
    - RF Immunity: Meets or exceeds EN55103-2, E1-E4
    - RoHS: Compliant

    C9 Specifications

    - Operating Principle: Condenser
    - Polar Pattern: Cardioid
    - Frequency Response: 40Hz -13KHz
    - Sensitivity: 41dBV (2.2mV) @ 1 Pa
    - Impedance: 150 ohms
    - Max SPL: 140dB
    - Self Noise: 27dBA
    - Power Requirements: P12, P24, P48, 2.2mA
    - Weight: 1.12oz [32g]
    - RF Immunity: Meets or exceeds EN55103-2, E1-E4
    - RoHS: Compliant


    Same Day Music is an authorized dealer of CAD products.
    Shipping Weights and Dimensions
    Shipping Weight: 5 lbs
    Shipping Dimensions: 14 x 11 x 5 in
