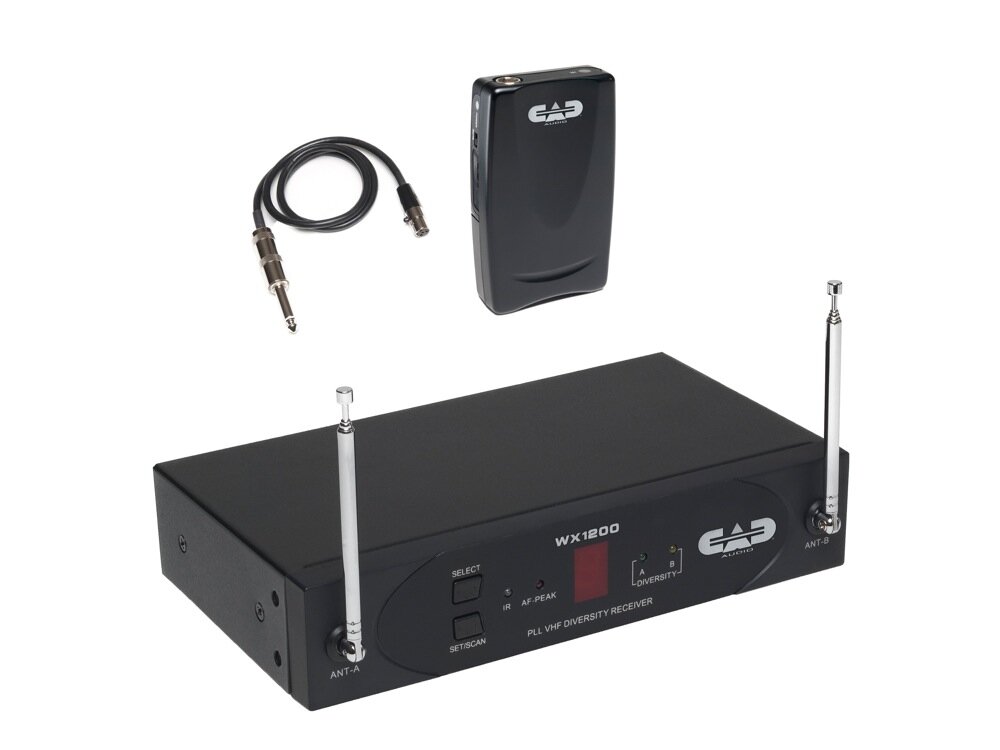

CAD StagePass WX1210GTR VHF Wireless Bodypack Guitar System

The CAD StagePass WX1210GTR VHF Wireless Guitar System features frequency agile diversity reception for outstanding connectivity, minimizing multipath interference. Sixteen Channel Agility for frequency plan flexibility and VHF Channelization provides increased operating range. Scan-Link technology provides instantaneous and automatic channel configuration.

The receiver conducts an environmental frequency evaluation then selects a channel. Second, the receiver links to the transmitter and sets the transmit frequency automatically. Two AA batteries supply more than 10 hours of battery life. Transmitters have soft touch On and Mute switches with multi-color LED indicators to monitor mute status and battery life. Metal Chassis provide a durable and formidable shielded enclosure. The WX1210 receiver offers 1/4-inch and XLR outputs for maximum flexibility.

Features:

- VHF Channelization for increased operating range
- Diversity Operation to minimize multipath interference
- 16 Channel Agility for frequency plan flexibility
- Scan-Link technology for instantaneous and automatic channel configuration
- Double AA batteries with >10hrs of battery life
- Transmitters have soft touch On and Mute switches with multi-color LED indicators
- Metal Chassis for a durable and formidable shielded enclosure
- 1/4 inch and XLR outputs for maximum flexibility

Includes:
- RX1200 Receiver
- TX1210 Bodypack Transmitter
- WXGTR Instrument Cable

Same Day Music is an authorized dealer of CAD products.

RX1200 Wireless Receiver:
- Maximum Receiver Output Level:
- Balanced Output: -16dBV
- Unbalanced Output: -13dBV
- Output Impedance:
- Balanced Output: 350ohms
- Unbalanced Output: 250ohms

TX1210 Body Pack Transmitter:
- Frequency Response: 40Hz - 15KHz
- Maximum Input Level: Microphone Input: -18dBV
- Instrument Input: -6dB
- RF Output: < 50mW
- Dimensions: 2 9/16 x 4 1/4 x 15/16 inches
- Net Weight: 2.8 ounces
- Power Requirements: 2x AA batteries
- Battery Life: 10 hours, when using high-quality alkaline batteries

Same Day Music is an authorized dealer of CAD products.

Shipping Weights and Dimensions

Shipping Weight: 4 lbs

Shipping Dimensions: 15 x 13 x 3 in
