Product Description

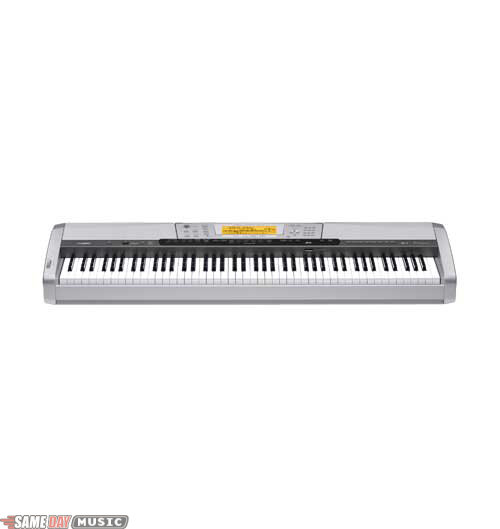

The elegantly stylish design of the PX-575R gives it an appearance that is similar to that of a fine piece of audio equipment. Compact and lightweight, the PX-575R allows it to be used in either a stand-alone tabletop configuration or on a stand (optional). This versatility means the PX-575R fits right in just about anywhere, from the living room to the bedroom, den, or music room.

The PX-575R with 88 full size hammer action keys combines real piano feel and beautiful tone with Auto-accompaniment and a host of other useful features and functions. With 670 preset plus 224 user tones and 166 preset plus 16 user rhythms it's the perfect choice for everything ranging from home use to professional applications. Powerful 2-way bass reflex speakers provide high-quality professional level sound. The PX-575R can also be connected to your computer via USB and also includes an SD card slot.

Technical Description

Keyboard: 88 keys with touch response (Off/1/2/3)

Tones: 400 Advanced tones + 200 Preset Tones + 20 Drum Sets + 100 standard user tones + 20 user tones with waves*1 + 4 user drum sets with waves*1 + 50 drawbar organ tones + 100 user drawbar organ tones (894 tones total); layer/split

Polyphony: 32 notes maximum (10 for certain tones)

Drawbar Organ Function
Drawbars: 9 (16', 5 1/3', 8', 4', 2 2/3', 2', 1 3/5', 1 1/3', 1')

Percussion: Second, Third

Click: On, Off

Effects: DSP (200 types: internal, 100 user areas) + Reverb (16 types) + Chorus (16 types) + Equalizer (10 types, 4 bands)

Auto Accompaniment
Rhythm Patterns: 182 (internal, 16 user areas*1)

Tempo: Variable (226 steps)

Chords: 3 fingering methods (Casio Chord, Fingered, Full Range Chord)

Rhythm Controller: Start/Stop, Intro/Ending 1 and 2, Variation/Fill-In 1 and 2, Synchro/Fill-In Next

Accomp Volume: 0 to 127 (128 steps)

One-touch Presets: Recalls settings for tone, tempo, layer on/off, and harmonize on/off in accordance with rhythm

Auto Harmonize: 10 types

Metronome: Time Signatures: 0, 2, 3, 4, 5, 6

Memory Function
Songs: 5

Recording Tracks: 6 (2 through 6 are melody tracks)

Recording Methods: Real-time, step

Memory Capacity: Approximately 10,000 notes (total for 5 songs)

Edit Function: Equipped

Demo Tunes: 3

Synthesizer Funtion
Parameters: Attack time/ release time; resonance; cutoff frequency; vibrato type; vibrato delay; vibrato depth; vibrato rate; octave shift; level; touch sense; reverb send; chorus send; DSP line; DSP type; DSP parameter

Registration Memory
Number of Setups: 32 (4 setups x 8 banks)

Memory Contents: Tone, Rhythm, Tempo, Layer on/off, Split on/off, Split point, Harmonize on/off, Mixer settings (Channels 1 to 10), Effect settings, Touch Response settings, Soft/sostenuto pedal jack setting, Transpose, Tuning, Accompaniment volume setting, Pitch bend range, Auto Harmonize type, MODE button setting, Synchro standby state, Mixer Hold, DSP Hold, Synthesizer Mode parameters

Mixer Function
Channels: 16

Parameters: Tone; part on/off; volume; pan pot; octave shift; coarse tune; fine tune; reverb send; chorus send; DSP line; DSP level, DSP pan, DSP system reverb send, DSP system chorus send

MIDI: 16 multi-timbre receive, GM Level 1 standard

Other Functions
Pitch Band Range: Adjustable (12 semitones upwards and downwards)

Transpose: 49 steps (-24 semitones to +24 semitones)

Tuning: Variable (A4 = approximately 440Hz +/-100 cents

LCD: Adjustable contrast

SMF Player
Supported Format: Flash memory storage for up to 200 files*1 SMF0

Flash Memory
Capacity: 4MB*2

Shared Area: Approximately 3.5MB*2 (waveform data, accompaniment data, SMF data)
Further storage of waveform, accompaniment data, SMF data becomes impossible after the total of such data reaches approximately 3.5MB.

SD Memory Cards
Supported SD Memory Cards: 1GB or less (Cards with capacity greater than 1GB are not supported)

Functions: Save and load data; playback of SMF; card formatting; file delete; file rename

Pedals: Damper, Soft/Sostenuto (Selectable)

Terminals
SD Card Slot

USB Port: Type B

Headphones: Stereo standard jack x 2

Output Impedance: 170 ohms

Output Voltage: 6.0V (RMS) MAX

Pedal: Standard jacks x 2

Power: 12V DC

Microphone In: Standard jack (with microphone volume slider)

Input impedance: 3.3k ohms

Input sensitivity: 10mV

Pedal Connector: For optional SP-30 only

Power Supply: AC Adaptor: AD-12

Power Consumption: 12V...18W

Dimensions: 134.4 x 34.9 x15.5cm (52 15/16 x 13 3/4 x 6 1/8 in.)

Weight: Approximately 16.7kg (36.8lbs)
