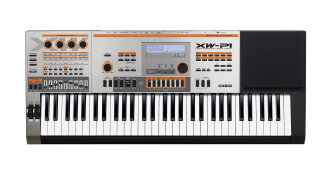

Casio XW-P1 Performance Keyboard Synthesizer, 61-Key

The Casio XW-P1 is a 61 key performance synthesizer with Casio's exclusive (HPSS) Hybrid Processing Sound Source. Providing screaming virtual analog monophonic leads and basses, drawbar organs, complex layers, stereo pianos, drums and more, the XW-P1 has the sounds and real-time control the performing musician needs.

Features:

- 6 Oscillator Monophonic Solo Synthesizer
- HexLayer - A single sound made up of 6 components for gig ready splits and layers
- Drawbar Organ Mode with 9 sliders, adjustable rotary speaker, key click, vibrato and percussion
- 400 fully editable PCM based sounds like stereo pianos, vintage electric pianos, strings, guitars, drums and more.
- Step Sequencer with 9 instrument tracks and 4 controller tracks
- 16 step programmable Arpeggiator
- Phrase sequencer to record and playback your riffs
- Performance mode providing 4 internal or external instrument zones with instant recall of effects, Step Sequences, Arpeggiators and Phrases
- 4 real-time controller knobs
- Pitch and Modulation Wheels
- 1/4 in. Mic and Line puts to process your voice or other instruments
- Stereo 1/8 in. line input to connect an MP3 player, laptop or tablet
- USB and MIDI ports
- 1/4" Line Output
- Included Power Supply
- Can operate on 6 D batteries

Same Day Music is an authorized dealer of Casio products.

Specifications

- Number of Keys: 61
- Controllers:
-- Pitch Wheel
-- Modulation Wheel
- Assignable Controllers: Controllers; 4 Knobs
- Assignable Functions: MIDI Messages (CC, RPN, NRPN, Mono After touch, Poly After touch, Pitch, Tempo)
- Editing Controllers: 9 Sliders
- Display: LCD; 72x31 Dot Matrix + Patterns, with Backlight and Contrast
- Tone Generator: Overview; Sound Generator Type; HPSS(Hybrid Processing Sound Source)
- Polyphony: 64
- Number of Parts: 16
- Total Number of Tones (Preset/User) : 620/310
- PCM, Melody, PCM Drum, Drawbar Organ, Hex Layer, Solo Synthesizer
- GM Compatible: Level 1
- Mixer: Yes
- Tuning: A4=415.5Hz - 440.0Hz - 465.9Hz (0.1Hz-Step)
- PCM Tones: Preset/User Tones; 400/100
- Tri-Element Stereo Piano: Yes
- Tones with User Wave: N/A
- Drum Kits (Preset/User) : 20/10
- Hex Layer: Number of Tones (Preset/User); 50/50
- Drawbar Organ: Number of Tones (Preset/User); 50/50
- Solo Synthesizer: Preset/User Tones; 100/100
- Maximum Polyphony: 1
- Oscillator Blocks: 6 (Synth 1/2, PCM1/2, Ext Input, Noise)
- Portamento: Yes
- Legato: Yes
- PWM: Yes
- External Input: Yes
- Pitch Shifter: Yes
- Noise Generator: Yes
- Non-Resonant Filter: Yes (6)
- Resonant Filter: Yes (1)
- Amplifier: Yes
- Oscillator Mixer: Yes
- LFO: Yes (2)
- Envelope Generators: Pitch, Amp, Filter, LFO
- Assignable Virtual Controllers: 8
- Effects: System Reverb; Preset Types; 10
- System Chorus: Preset Types; 5
- Limitations: System Chorus, DSP and Solo Synthesizer are mutually exclusive
- Master Effect: EQ; Editable 4 Band EQ
- DSP: Number of DSP Sets (Preset/User); 100/100
- PCM Tone Effect Categories: Compressor, Distortion, Enhancer, Wah, Auto Pan, Tremolo, Rotary, Phaser, Chorus, Reflection, Tempo Sync Delay , Ring Modulator, LoFi, 2-Module Multi
- Solo Synth DSP: Tempo Sync Delay, Distortion, Ring Modulator, Chorus, Flanger, Pan
- Algorithm Types: 46(Normal Tone DSP) 6(Solo Synthesizer DSP)
- DSP Lines: 1
- Audio Player: Storage Type; SD Card
- Number of Songs: 999
- Audio File Format: 42kHz Stereo
- Limitation: Audio Playing, Musical Playing(SMF, Step Sequencer) are mutually exclusive.
- Step Sequencer: Number of Tracks; Mono x 8, Poly x 1, Control x 4
- Number of Patterns / Step Sequence: 8
- Number of Step Sequencers (Preset/User) : 100/100
- Number of Chains (user) : 100
- Maximum Number of Steps: 16
- Key Play: Yes
- Other: Note Gate, Note Swing per Track
- Phrase Sequencer: Number of Phrases; 100/100
- Number of Tracks: 1
- Play Mode: Loop, Hold, Key Play
- Capacity: 8KBytes/Pgrase, 128KBytes/100 User Phrases
- Recordable Events: Note On/Off, Controller Operations
- Arpeggiator: Other; Phrase measure and note quantize, overdub
- Number of Patterns (Preset/User) : 100/100
- Data Types: Variation, Step
- Editing Function: Variation ; Parameter Edit
- Step: 16-Step Edit, Parameter Edit
- Performance: Number of Memories (Preset/User); 100/100
- Parameter Categories: Tone, Effect, Mixer, Controller, Sequence, Phrase, Arpeggio, MIDI
- Recall Parameter Filter: Yes
- Number of Keyboard Zones: 4
- Multifunction Key: Yes
- Transpose: Range; +/- 12
- Octave Shift: Range; +/- 3
- Tempo: Range; 30-255BPM
- Tap Tempo: Button/LED; Yes
- MIDI Clock: Transmit/Receive; Yes
- Storage: SDHC Card; Capacity; 2GB-32GB

Same Day Music is an authorized dealer of Casio products.

Shipping Weights and Dimensions

Shipping Weight: 19 lbs

Shipping Dimensions: 40 x 18 x 6 in
