Product Description

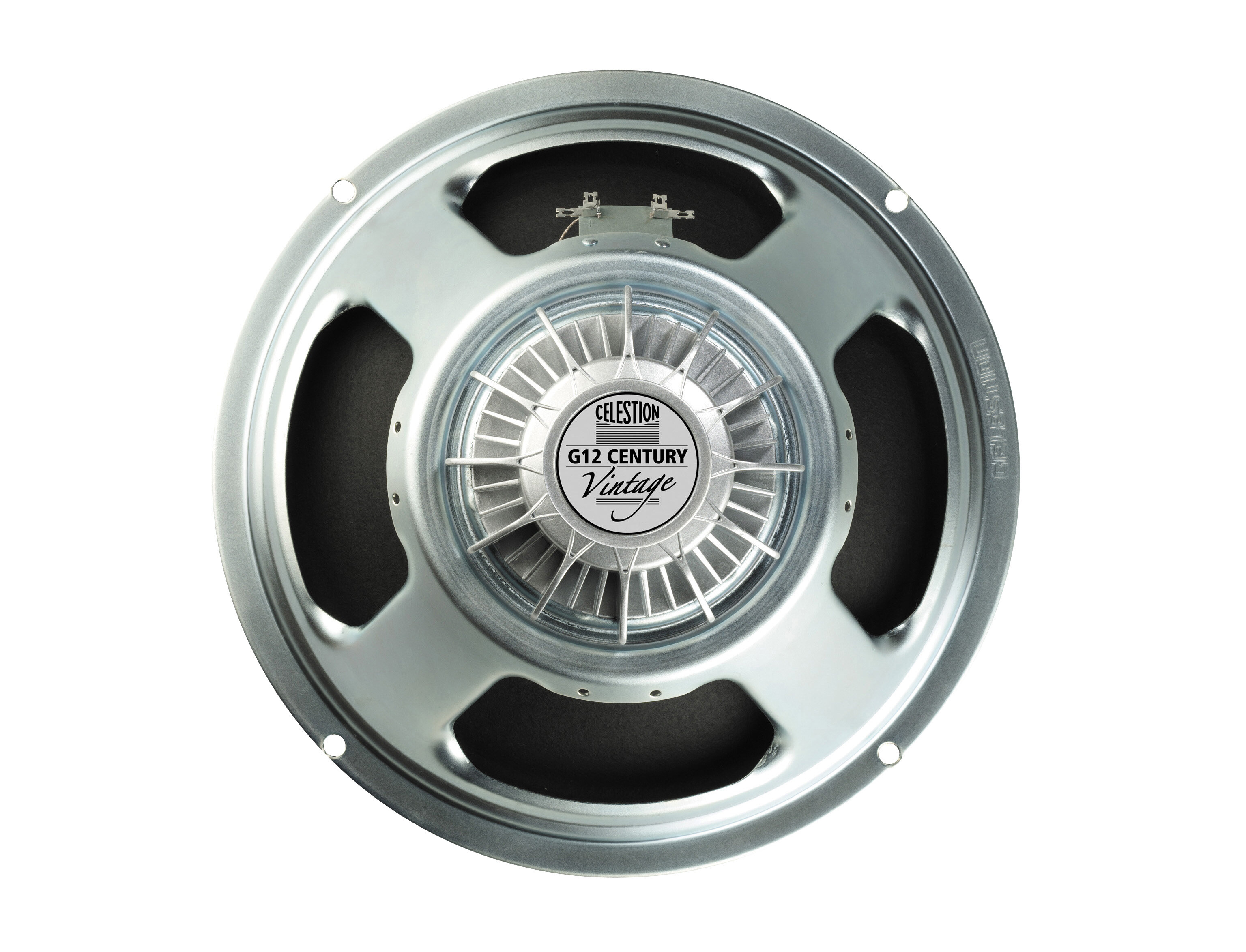

With the G12 Century Vintage, Celestion's mission was to create a loudspeaker that combined all the benefits of a Neodymium magnet structure with a voicing that evoked the classic guitar tones of the 1960s and '70s.

The incredible magnetic properties of Neo mean that only a small amount is needed to produce the same flux as a much larger ceramic magnet structure. What's more, the magnet of the G12 Century Vintage is a 'pot' type which actually sits inside the voice coil (unlike the 'ring' magnet of the G12 Century which surrounds the voice coil). The resulting weight of the G12 Century Vintage is just 1.66kg (3.65lb).

The Neo characteristics of fast attack, responsiveness and articulation are very much in evidence. However this specific magnet configuration, combined with a carefully selected cone material and edge treatment, gifts the G12 Century Vintage with a classic rock sound for the new millennium.

Technical Description

General Specifications
Nominal Diameter: 12 in., 305mm

Power Rating: 60 watts

Nominal Impedance: 8 ohms or 16 ohms

Sensitivity: 98dB

Chassis Type: Pressed Steel

Voice Coil Diameter: 1.75 in., 44.5mm

Voice Coil Material: Round copper

Magnet Type: Neo

Frequency Range: 75-5000Hz

Resonance Frequency, Fs: 70Hz

DC resistance, Re: 6.88 ohms or 13.35 ohms

Mounting Information
Diameter: 12.2 in.\ in., 309mm

Overall Depth: 5.0 in., 128mm

Magnet Structure Diameter: 5.5 in., 140mm

Cut-Out Diameter: 11.1 in., 283mm

Mounting Slot Dimensions: 0.31 in., 7.9mm diameter

Number of Mounting Slots: 4

Mounting slot PCD: 11.7 in., 297mm

Unit Weight: 3.7lb, 1.7kg
