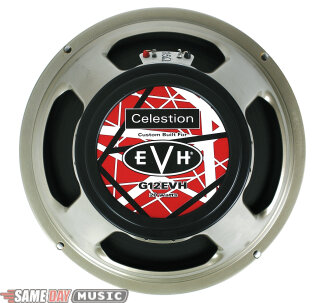

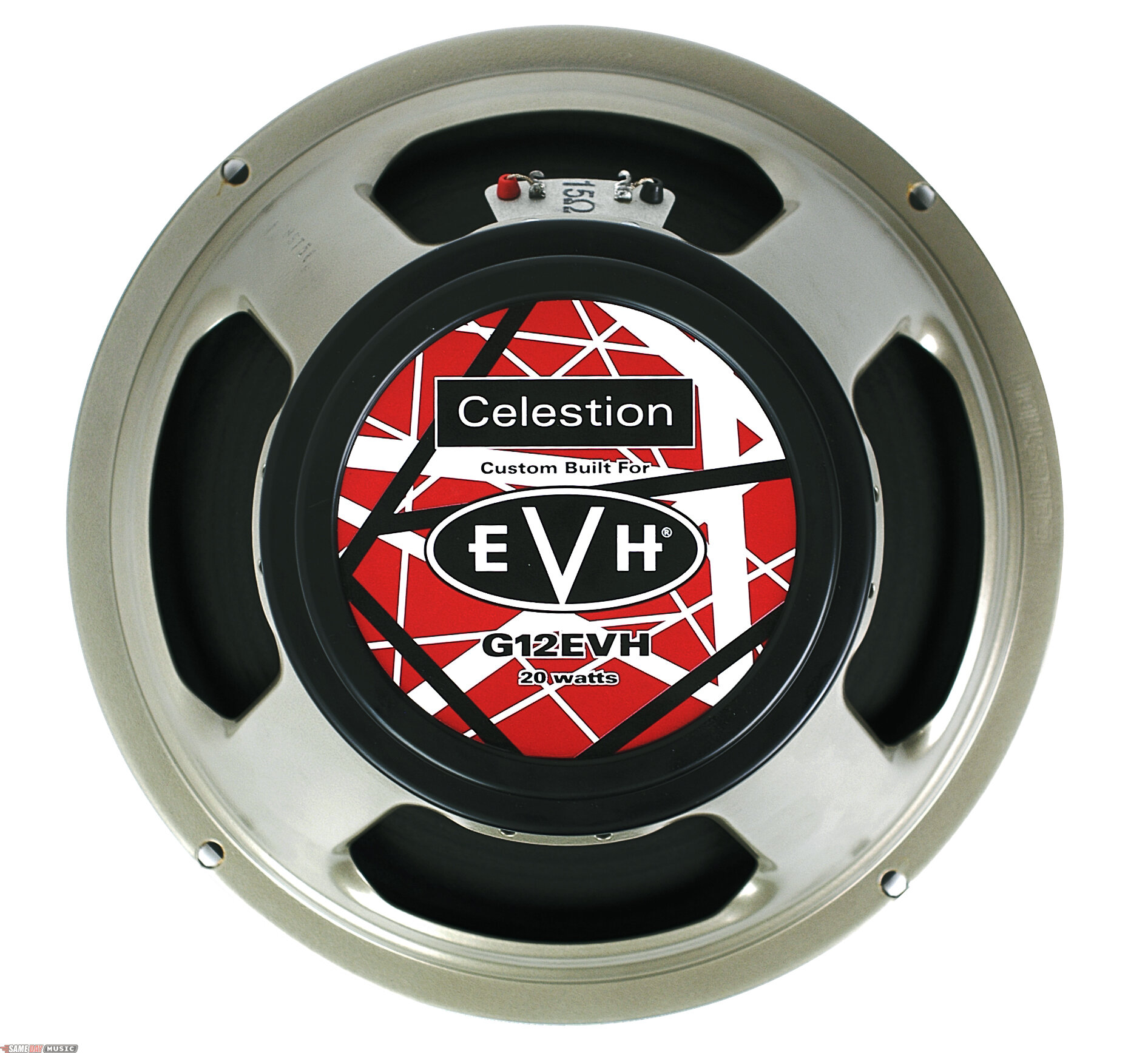

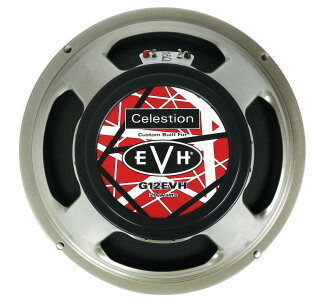

Celestion EVH Guitar Speaker (20 Watts, 12 In.)
A faithful reproduction of the original 1960s 20-watt Greenback Eddie Van Halen used throughout his career.
Certain items must be exchanged directly through the manufacturer if they are found to be defective. This includes tubes, strings, pickups, raw frame speakers, drum heads, drumsticks, cymbals, cowbells, and harmonicas. These items can only be returned to us if they are unopened.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:
Main
Glamour View
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Edward Van Halen and Fender have joined forces to create the EVH guitar speaker. This incredible collaboration delivers ultimate Van Halen tone through 4 x 12 cabinets loaded with Celestion ‘G12 EVH’ speakers.
Throughout his career, EVH has sought out original Celestion 20-watt Greenback speakers to load into his recording and performing rigs. So, when designing the EVH 5150III cabinet it was to Celestion that EVH and Fender turned in search of that vintage Greenback sound.
Celestion’s Heritage Series G12M speakers are a faithful reproduction of the original 1960s 20-watt Greenback and for EVH they provide the ideal solution. However - in order to give this speaker a look that is unmistakeably EVH – Celestion added a specially designed label, featuring the Van Halen logo and unique EVH striped design, along with a black-painted can that evokes the memory of the rare and much sought after Celestion ‘Blackback’ speakers.
Throughout his career, EVH has sought out original Celestion 20-watt Greenback speakers to load into his recording and performing rigs. So, when designing the EVH 5150III cabinet it was to Celestion that EVH and Fender turned in search of that vintage Greenback sound.
Celestion’s Heritage Series G12M speakers are a faithful reproduction of the original 1960s 20-watt Greenback and for EVH they provide the ideal solution. However - in order to give this speaker a look that is unmistakeably EVH – Celestion added a specially designed label, featuring the Van Halen logo and unique EVH striped design, along with a black-painted can that evokes the memory of the rare and much sought after Celestion ‘Blackback’ speakers.
TECHNICAL DESCRIPTION
Nominal diameter: 12 in., 305mm
Power Rating: 20 watts
Nominal impedance: 15 Ohms
Sensitivity: 96dB
Chassis type: Pressed steel
Voice coil diameter: 1.75 in., 44.5 mm
Voice coil material: Rounded copper
Magnet type: Ceramic
Magnet weight: 35 oz., 0.99 kg
Frequency range: 75-5000Hz
Resonance frequency, Fs: 75Hz
DC resistance, RE: 15 Ohms
Mounting Information
Diameter: 12.2 in., 309 mm
Overall depth: 5.1 in., 130 mm
Magnet structure diameter: 5.9 in., 150 mm
Cut-out diameter: 11.1 in., 283 mm
Mounting slot dimensions: 0.31 in., 7.9 mm Ø
Number of mounting slots: 4
Mounting slot PCD: 11.7 in., 297 mm
Unit weight: 7.9 lbs., 3.6 kg
Power Rating: 20 watts
Nominal impedance: 15 Ohms
Sensitivity: 96dB
Chassis type: Pressed steel
Voice coil diameter: 1.75 in., 44.5 mm
Voice coil material: Rounded copper
Magnet type: Ceramic
Magnet weight: 35 oz., 0.99 kg
Frequency range: 75-5000Hz
Resonance frequency, Fs: 75Hz
DC resistance, RE: 15 Ohms
Mounting Information
Diameter: 12.2 in., 309 mm
Overall depth: 5.1 in., 130 mm
Magnet structure diameter: 5.9 in., 150 mm
Cut-out diameter: 11.1 in., 283 mm
Mounting slot dimensions: 0.31 in., 7.9 mm Ø
Number of mounting slots: 4
Mounting slot PCD: 11.7 in., 297 mm
Unit weight: 7.9 lbs., 3.6 kg
