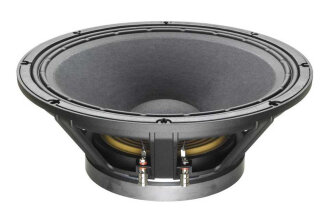

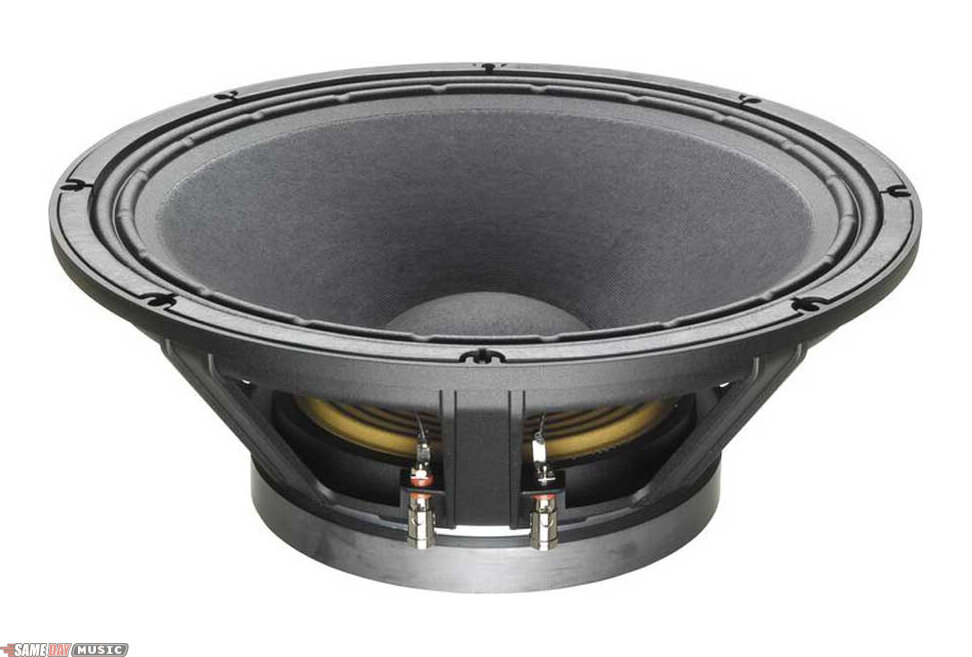

Celestion FTR Series drivers feature advanced, high-temperature voice coils and smart chassis design for maximum heat dissipation with reduced reflections back on the cone. Similarly innovative magnet topology floods the gap around the pole piece, limiting the interference from transient flux. The result is a cost-effective range of high-value 12, 15 and 18 inch cast- frame low frequency drivers that set new standards for high power handling with minimal thermal compression, and low acoustic and harmonic distortion.
Features
# 600 Watts RMS continuous power handling (measured to AES Standard)
# Flexirol technology for greater excursion control
# Saturated gap technology for lower harmonic distortion
# Low frequency response, down to 35Hz
# Smart chassis design minimises acoustic distortion
# Specially treated weather-resistant cone
General specifications
Nominal diameter (mm/in): 381/15
Power Rating (AES, W rms): 600
Nominal impedance (Ohm): 8
Voice coil diameter (mm/in): 100/4
Magnet type: Ferrite
Magnet weight (kg/oz): 3.1/110
Chassis type: Cast aluminium
Sensitivity (dB): 97
Frequency range (Hz): 35-3000
Coil material: Round copper
Former material: Glass fibre
Cone material: Glass loaded paper with weather resistant impregnation
Surround material: Cloth-sealed
Suspension: Single
Xmax (mm/in): 6.0/0.24
Gap depth (mm/in): 10.0/0.39
Voice coil winding width (mm/in): 22.0/0.87
Small Signal Parameters
D (m/in): 0.33/12.99
Fs (Hz): 35
Mmt (g/oz): 117.83/4.16
Mmd (g/oz): 103.68/3.66
Mair -
Qms: 3.68
Qes: 0.26
Qts: 0.24
Re (Ohm): 5.62
Vas (lt/ft3): 182.8/6.45
BI (Tm): 23.69
Cms (mm/N): 0.18
Rms (kg/s): 7.019
Le (mH): 1.48
Mounting Information
Overall diameter (mm/in): 385/15.16
Overall depth (mm/in): 170/6.69
Cut-out diameter (mm/in): 351/13.82
Mounting slot dimensions (mm/in): 7 x 10/0.28 x 0.39
Number of mounting slots: 8
Mounting slot PCD range (mm/in): 365-375/14.37-14.76
Unit weight (kg/lb): 9.4/20.7
Packed Dimensions and Weight
Single pack size W x D x H (mm/in): 435 x 435 x 200/17.1 x 17.1 x 7.9
Single pack weight (kg/lb): 10.7/23.6
