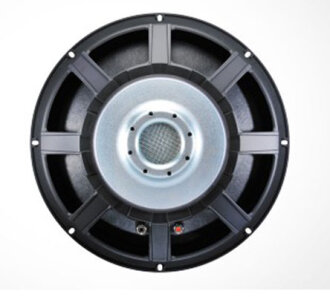

Put the Celestion FTR123070C 12 inch Pro Replacement Speaker in your PA cab and you'll never look back. This mid/bass driver is extremely reliable and durable thanks to a weather resistant cone and intelligent heat management so you know it will take all the abuse of the road and performance.
Features:
- 12-inch ferrite mid/bass driver provides 350Wrms (AES standard) power handling and 96dB sensitivity
- Three-inch high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss due to thermal compression
- Low frequency response, down to 40 Hz
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion
- Specially treated weather-resistant cone
Same Day Music is an authorized dealer of
Celestion
products.
- Nominal diameter: 12 inches
- Power rating: 350Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 96 dB
- Frequency range: 40-4000 Hz
- Voice coil diameter: 75mm/3in
- Chassis type: Cast aluminium
- Magnet type: Ferrite
- Magnet weight: 2.3kg/81oz
- Coil material: Round copper
- Former material: Glass fibre
- Cone material: Glass loaded paper with weather-resistant impregnation
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 3mm/0.12in
- Gap depth: 10mm/0.40in
- Voice coil winding width: 16 mm/0.6 3in
- Mounting Information
- Diameter: 318 mm/12.5 in
- Overall depth: 102 mm/4.02 in
- Cut-out diameter: 286 mm/11.26 in
- Mounting slot dimensions: 7.5 mm x 6.5 mm/0.3 in x 0.26 in
- Number of mounting slots: Eight
- Mounting PCD range: 298-304mm/11.7-12.0 in
- Weight: 6.3 kg/13.9 lb
Same Day Music is an authorized dealer of
Celestion
products.
- Shipping Weights and Dimensions
- Shipping Weight: 16 lbs
-
Shipping Dimensions:
14 x
14 x
8 in
