    Celestion TF0818 PA Replacement 100-Watt Speakers

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

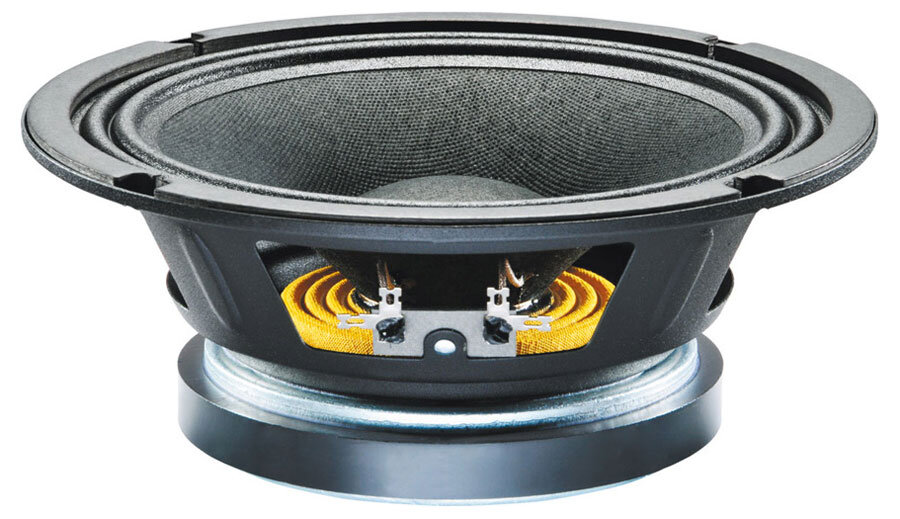

    Celestion TF0818 Replacement PA Speaker, 100 Watts Product Description

    The Celestion TF0818 is an 8 inch-100 Watt RMS speaker with 8 Ohms of resistance. The Celestion TF is a closed-back midrange design to provide system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.

    TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.

    Features

    - 8 inch driver providing 94dB sensitivity and 100Wrms (AES standard) power handling
    - 1.75 inch high temperature copper voice coil wound on polyimide former for increased reliability
    - Achieves optimal performance in compact enclosures
    - Exceptional performance through bass and mid-range
    - Ideal for 2-way systems


    Same Day Music is an authorized dealer of Celestion products.

    Celestion TF0818 Replacement PA Speaker, 100 Watts Technical Description

    - General:
    - Nominal diameter: 203mm/8in
    - Power rating: 100Wrms
    - Nominal impedance: 8 Ohms
    - Sensitivity: 94dB
    - Frequency range: 70-6000Hz
    - Voice coil diameter: 45mm/1.75in
    - Chassis type: Pressed steel
    - Magnet type: Ferrite
    - Magnet weight: 0.88kg/31oz
    - Coil material: Round copper
    - Former material: Polymide
    - Cone material: Kevlar loaded paper
    - Surround material: Cloth-sealed
    - Suspension: Single
    - Xmax: 3.5mm/0.14in
    - Gap depth: 6mm/0.24in
    - Voice coil winding width: 13mm/0.51in
    - Mounting Information:
    - Overall diameter: 208mm/8.19in
    - Overall depth: 99mm/3.54in
    - Cut-out diameter: 183mm/7.20in
    - Mounting slot dimensions: 9.5mm x 5.5mm/0.37in x 0.22in
    - Number of mounting slots: 4
    - Mounting PCD range: 195-199mm/7.68-7.83in
    - Unit weight: 2.3kg/5.1lb
    - Packed Dimensions & Weight:
    - Single pack size W x D x H: 9.1 x 9.1 x 4.3 in. (230mm x 230mm x 110mm)
    - Single pack weight: 3kg/6.6lb


    Same Day Music is an authorized dealer of Celestion products.
    Shipping Weights and Dimensions
    Shipping Weight: 6 lbs
    Shipping Dimensions: 10 x 9 x 4 in
