    Celestion TF1020 PA Replacement 150-Watt Speakers

    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 171X-5ZQD

    Web Item #CELTF1020

    Celestion TF1020 Replacement PA Speaker

    More Resources

    Celestion Warranty: If you have additional warranty questions, please call the manufacturer at 516-249-1399
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Fri
    •
    • 2 Day: $6
    • Overnight: $32
    SpeedPlay: on orders of
    $249
    $69.99 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    This item cannot be returned once opened due to the possibility that it has been used.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

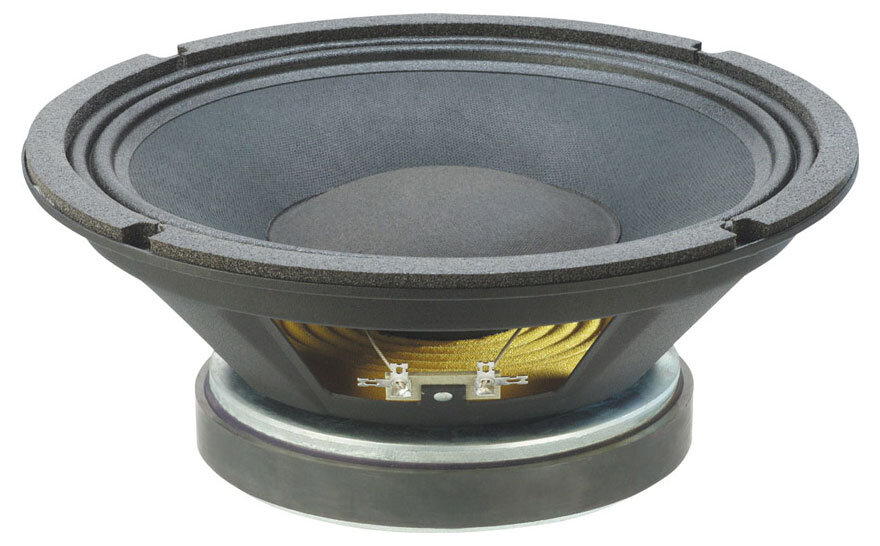

    Celestion TF1020 Replacement PA Speaker, 150 Watts Product Description

    The Celestion TF1020 is a 10 Inch-150 Watt RMS speaker with 8 ohms of resistance. The Celestion TF is a closed-back midrange design to provide system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.

    Celestion TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.

    Features

    - 10 inch bass and mid-range driver provides 97dB sensitivity and 150Wrms (AES standard) power handling
    - 2 inch High temperature copper voice coil wound on polyimide for increased reliability
    - Ideally suited to compact enclosures and high pass systems
    - Rigid chassis design for maximum energy transfer
    - Kevlar-loaded cone with sealed surround and damping for reduced distortion


    Same Day Music is an authorized dealer of Celestion products.

    Celestion TF1020 Replacement PA Speaker, 150 Watts Technical Description

    - General:
    - Nominal diameter: 254mm/10in
    - Power rating: 150Wrms
    - Nominal impedance: 8 Ohms
    - Sensitivity: 97dB
    - Frequency range: 60-3000Hz
    - Voice coil diameter: 50mm/2in
    - Chassis type: Pressed steel
    - Magnet type: Ferrite
    - Magnet weight: 1.2kg/42oz
    - Coil material: Round copper
    - Former material: Polymide
    - Cone material: Kevlar loaded paper
    - Surround material: Cloth-sealed
    - Suspension: Single
    - Xmax: 2mm/0.08in
    - Gap depth: 8mm/0.31in
    - Voice coil winding width: 12mm/0.47in
    - Mounting Information:
    - Overall diameter: 256mm/10.08in
    - Overall depth: 110mm/4.33in
    - Cut-out diameter: 229mm/9.02in
    - Mounting slot dimensions: 8mm x 6mm/0.31in x 0.24in
    - Number of mounting slots: 4
    - Mounting PCD range: 245mm/9.65in
    - Unit weight: 3.7kg/8.2lb
    - Packed Dimensions & Weight:
    - Single pack size W x D x H: 11.0 x 11.0 x 4.7 in. (280mm x 280mm x 120mm)
    - Single pack weight: 4kg/8.8lb


    Same Day Music is an authorized dealer of Celestion products.
    Shipping Weights and Dimensions
    Shipping Weight: 10 lbs
    Shipping Dimensions: 12 x 11 x 6 in
