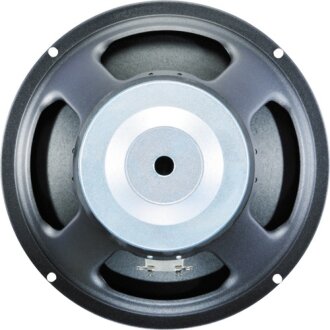

    Celestion TF1220 Bass-Mid Speaker (300 Watts, 12")

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Celestion TF1220 Bass-Mid Speaker (300 Watts, 12") Product Description

    Put the Celestion TF1220 replacement speaker in your cab and hear the difference! This outstanding speaker provides optimal reliability, audio clarity and punch. The Celestion TF1220 is the perfect replacement speaker for your bass or PA cabinet.


    - 12-inch Bass and mid-range driver providing 97 dB sensitivity and 150 Wrms (AES standard) power handling
    - 2-inch high temperature copper voice coil wound on polyimide for increased reliability
    - Ideal for use in 2-way high pass systems
    - Rigid chassis design for maximum energy transfer
    - Excellent performance at cost-effective price point

    Same Day Music is an authorized dealer of Celestion products.

    Celestion TF1220 Bass-Mid Speaker Technical Description

    - Nominal diameter: 305mm/12in
    - Power rating: 150Wrms
    - Nominal impedance: 8 ohms
    - Sensitivity: 97dB
    - Frequency range: 60-4000Hz
    - Voice coil diameter: 50mm/2in
    - Chassis type: Pressed steel
    - Magnet type: Ferrite
    - Magnet weight: 1.2kg/42oz
    - Coil material: Round copper
    - Former material: Polyimide
    - Cone material: Kevlar loaded paper
    - Surround material: Cloth-sealed
    - Suspension: Single
    - Xmax: 2mm/0.08in
    - Gap depth: 8mm/0.31in
    - Voice coil winding width: 12 mm/0.47in

    Mounting Information:
    - Diameter: 309mm/12.17in
    - Overall depth: 131mm/5.16in
    - Cut-out diameter: 283mm/11.14in
    - Mounting slot dimensions: 7.9mm/0.31in
    - Number of mounting slots: 4
    - Mounting PCD range: 297mm/11.69in
    - Weight: 5kg/11lb

    Same Day Music is an authorized dealer of Celestion products.
