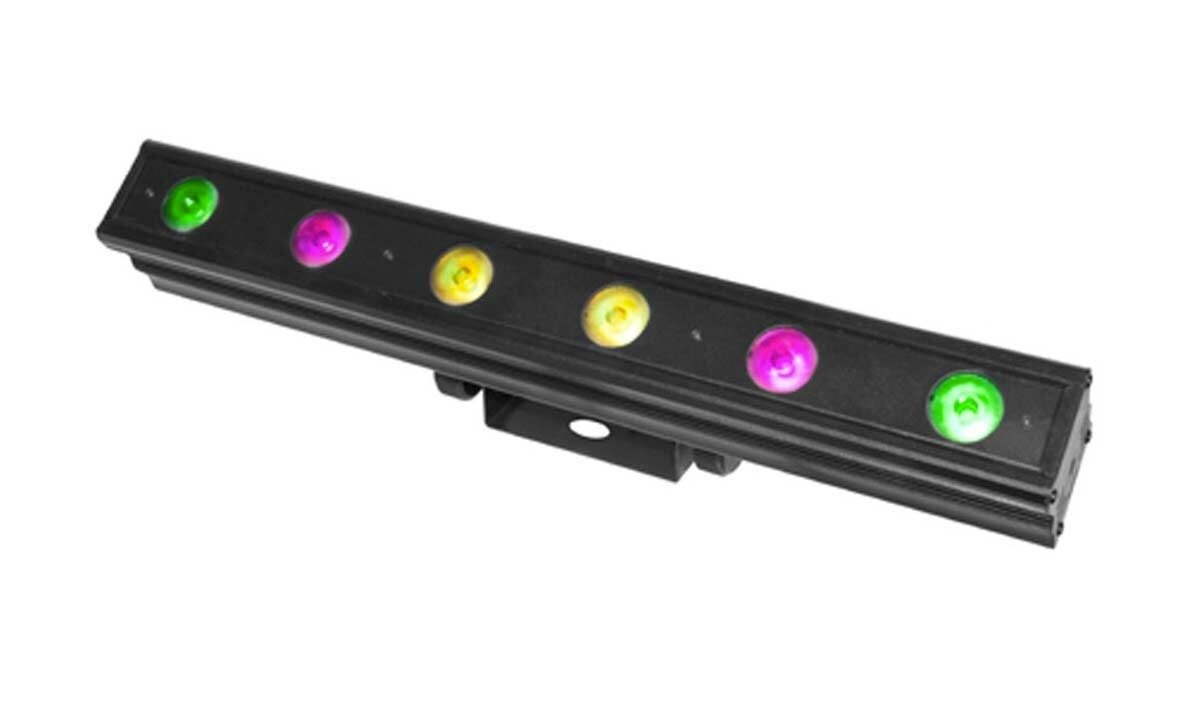

    Chauvet Color Band Pix Mini Effect Light Product Description

    The Chauvet ColorBand Pix Mini Wash Lighting Effect is perfect for use as a powerful wash with the additional eye candy of pixel mapping effects. This powerful, compact version of the Chauvet ColorBand PiX also features full pixel mapping capability. Six individually controllable tri-colored LEDs project custom animations and video effects when multiple units are used together.

    Chauvet ColorBand PiX Mini includes multiple DMX personalities and pre-built programs for design flexibility at any event while on-board 3 and 5-pin DMX connectors increase control options.


    - Half-sized LED strip light for use as a pixel mapping effect, blinder or wall-washer
    - Individual LED control provides the ability to create amazing animations and video effects
    - Many pre-built automated programs accessible with or without DMX
    - Works with ShowXpress Pixels to generate complex looks with ease
    - Onboard 3-pin and 5-pin DMX connectors offer great flexibility
    - High-frequency LED dimming allows for flicker-free video operation
    - Includes multiple DMX personalities to fit a wide variety of programming styles
    - High-powered, tri-color LEDs nearly eliminate multi-colored shadows
    - Power linking saves time running cables and extension cords
    - Linkable with other ColorBand PiX, ColorBand PiX Mini, and ColorBand Tri fixtures for a coordinated light show
    - Great for quiet installations thanks to the 100 percent silent operation and no moving parts

    Same Day Music is an authorized dealer of Chauvet products.

    Chauvet Color Band Pix Mini Effect Light Technical Description

    - DMX channels: 3, 4, 6, 7, 9, or 18
    - DMX connectors: 3-pin and 5-pin
    - Light source: 6 3 W (350 mA x3) tri-color LEDs 50,000 hrs
    - Strobe rate: 0 - 30 Hz
    - Beam angle: 19 degrees
    - Field angle: 35 degrees
    - Illuminance: 1,300 lux at 2 m
    - Power linking: 20 units at 120 V / 35 units at 230 V
    - Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
    - Power and current: 47 W, 0.4 A at 120 V 60 Hz
    - Power and current: 51 W, 0.2 A at 230 V 50 Hz
    - Weight: 4.9 lbs (2.2 kg)
    - Size: 21.8 x 2.5 x 6.1 in (554 x 64 x 154 mm)

    Same Day Music is an authorized dealer of Chauvet products.
    Shipping Weights and Dimensions
    Shipping Weight: 7 lbs
    Shipping Dimensions: 21 x 7 x 4 in
