    Carl Martin Classic Flange Pedal

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

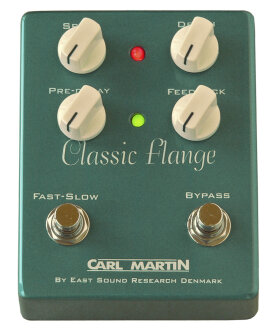

    Carl Martin Classic Flange Pedal Product Description

    The perfect tool to fatten up your sound or add loads of amazingly rich and complex modulation. The Carl Martin Classic flange guitar effects pedal was designed for those guitarists who desire this unique form of modulation. The Classic Flanger has four knobs to control Speed, Depth, Pre-delay and Feedback, plus a dual speed mode that is foot-switchable. There are no rules with a Flanger, just plug this versatile modulation pedal in and play, play, play. As with all the Carl Martin Vintage effects pedals, the Classic Flanger comes in a solid, diecast housing with cool Carl Martin graphics. It can be powered by 9v battery or a regulated 9v power supply.

    Controls and Indicators

    The bypass switch, turn on/off the effect, the Classic Flange is not 'true bypass' it has a high quality buffer circuitry. The Green LED light up when the unit of activated.

    The Classic Flange offers two settings of speed, fast/slow selected on the switch. The fast/slow setting share the same speed knob, therefore when changing the speed setting in fast mode, it will also change the speed in slow mode.

    The Speed knob controls the how fast the sweep of the flanger should be, in fast mode it can go very fast, sound is reminiscent of a vibe/leslie. The Red LED flashes the speed setting in real time, so there is a visual indication on the speed chosen, this also flash in bypass mode.

    The depth controls the amount of effect, it works closely together with the feedback, caution is needed at extreme settings, the unit will self oscillate when both controls are set close to maximum.

    The pre-delay sets the short delay time in which the Flanger operates, set to the extreme left it is the shortest time available, and to the extreme right it is the longest time available. The Pre-Delay controls what frequencies the Flanger accentuates and attenuates, as it is a moving filter that sweeps up and down following the Speed control. In other words, it sets the flavor of the Flangers tone, from very swirly to rising and sinking curve, and everything in between.

    Feedback Controls

    The feedback controls the amount of signal that gets send back through the sweepfilter, at low settings it gives a chorus like sound, increasing it will give it the more hollow ghostly sound, feeding some frequencies, and damping others, in other words it controls the amount of flanging needed for the effect, works closely with the Depth, can be set into a controlled oscillation where the speed can be manipulated for fast or slow oscillations, acid stuff!

    Same Day Music is an authorized dealer of Carl Martin products.

    Carl Martin Classic Flange Pedal Technical Description

    - Power: 9V, Battery. A 9V Regulated external supply can be used with hot on the ring
    - S/N ratio: 52dB
    - Input impedance: 1M Ohm
    - Output impedance: 100 Ohm
    - Dimension(WxDxH): 170 x 115 x 70 mm
    - Weight: 0.850 Kg

    Same Day Music is an authorized dealer of Carl Martin products.
