Product Description

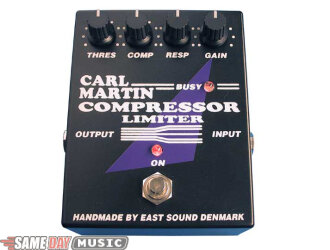

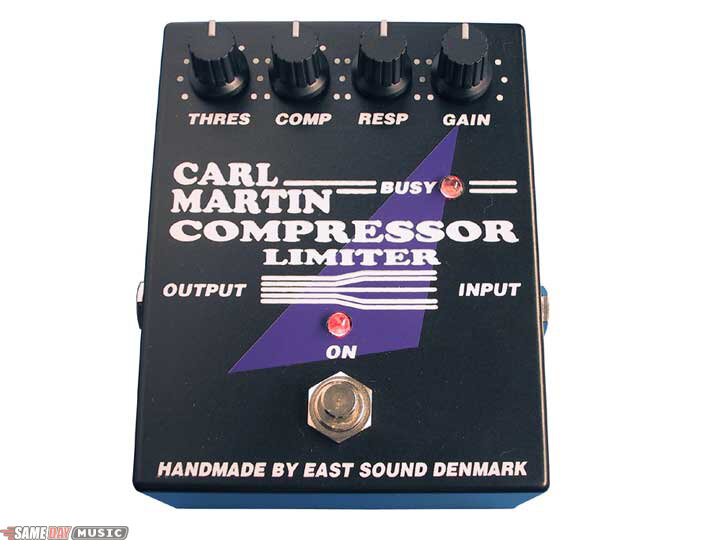

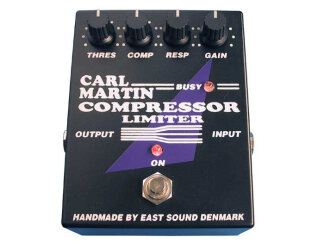

Carl Martin Compressor/Limiter has been specially developed to incorporate the same features and sonic clarity found in high-quality professional studio compressors. To achieve this we incorporated a variable threshold, -variable compression ratio, -variable attack and release controls, and of course, a gain level.

General Guidelines on the use of the Compressor/Limiter:
Threshold: Working anti clockwise, determines how much of the signal will be compressed. This is also dependent on how much signal is fed from the instrument.

Comp: Working clockwise, determines how much compression is applied to the signal allowed by the threshold setting.

Resp: Working clockwise, determines the attack/release times, going from slow to fast. In general, if you want to hear the compressor working with a crisp attack you should use slow times. If you require just a silent limiting you should use fast times.

Gain: Working clockwise, sets the overall gain.

Busy: Indicates the amount of compression being applied, even in bypass mode. The brighter it gets, the more compression is being applied.

Technical Description

Power: 100 or 115 or 230 VAC 50-60Hz

Power consumption: 2,4 Watts

S/N ratio: 105dB (clean out)

Input impedance: 1M Ohm

Output impedance: 200 Ohm

THD distortion: 0,05%

Threshold range: 60 dB

Compression range: from 1:1 to 1:00

Response range: from 125 mS to 12,5 mS

Gain range: +-20 dB

Dimension (D x W x H): 120 x 95 x 77

Weight: 0.625 kg
