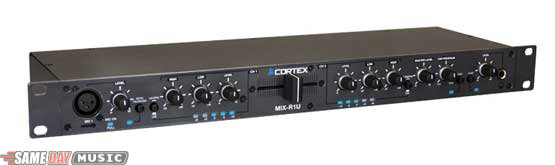

Introducing the future of crowning, compact, rack mountable, lightweight and mobile professional audio mixers, the Cortex MIXR1U's simple layout, quality circuitry and compact design makes it an essential addition to any pro audio or pro DJ rig.
Ideal for nightclub and bar installations, as well as mobile disc jockey use, this 'easy on your back and wallet' mixer is packed with all the necessary features for a great performance and unparalleled mix. Equipped with two stereo channels each with a 2 band EQ, adjustable gain, front mounted XLR microphone input with Auto-Talkover that protect against microphone feedback, a high performance cross fader and balanced XLR outputs for pro installs, the MIX-R1U redefines what it means to be compact yet versatile.
Features
# 1U Rack mount steel chassis
# 2 convertible Phono/Line channels
# 2 band EQ and level gain on each channel
# 5 segment bright LED's on each channel
# Cue Rotary and adjustable Cue volume
# Separate CUE buttons for each channel
# 1/4-inch headphone output with volume control
# One XLR microphone input in front
# Microphone input on back (1, 1/4 in.)
# Microphone volume with auto talk-over
# Balanced XLR Master Output
# 1/4-inch Auxiliary output with separate gain for installation
# 45mm Super-Smooth Cross-fader
# Record Output
Specifications
Frequency Response: 20 Hz to 20 kHz +/- 0.5dB
THD+N (Line): <0.005% at 1 kHz
Signal to Noise Ratio (Ref to Max. Level) Dynamic Range: >100 dB
Noise Floor Line in to any output: <-80 dBV
Max Output Level: +23 dBV balanced, +17 dBV unbalanced
EQ Channel:
- Hi +12 dB, -12 dB
- Low +12 dB, -12 dB
Phono/ Line inputs (convertible) x 2 (RCA) convertible
-10 dBV/>10 KOhm (Line)
-50 dBV/47 KOhm (Phono)
Line Inputs x 2 (RCA), -10 dBV/>10 KOhm
Mic Input:
- x1 (XLR) balanced -45 dBV/1 KOhm
- x1 (1/4 in.) -45 dBV/1 KOhm
Master Outputs x2 (XLR) balanced /0 dBV
AUX Output x2 (1/4 in.) balanced / 0 dBV
Record Output x2 (RCA) unbalanced / 0 dBV
Headphone Output x1 (1/4 in.) 32 Ohm load
Dimensions (L x W x D): 19 x 5 5/32 x 1 3/4 in. (482.6 x 131 x 44.5 mm)
Weight: 5.07 lbs (2.3 kgs)
