Product Description

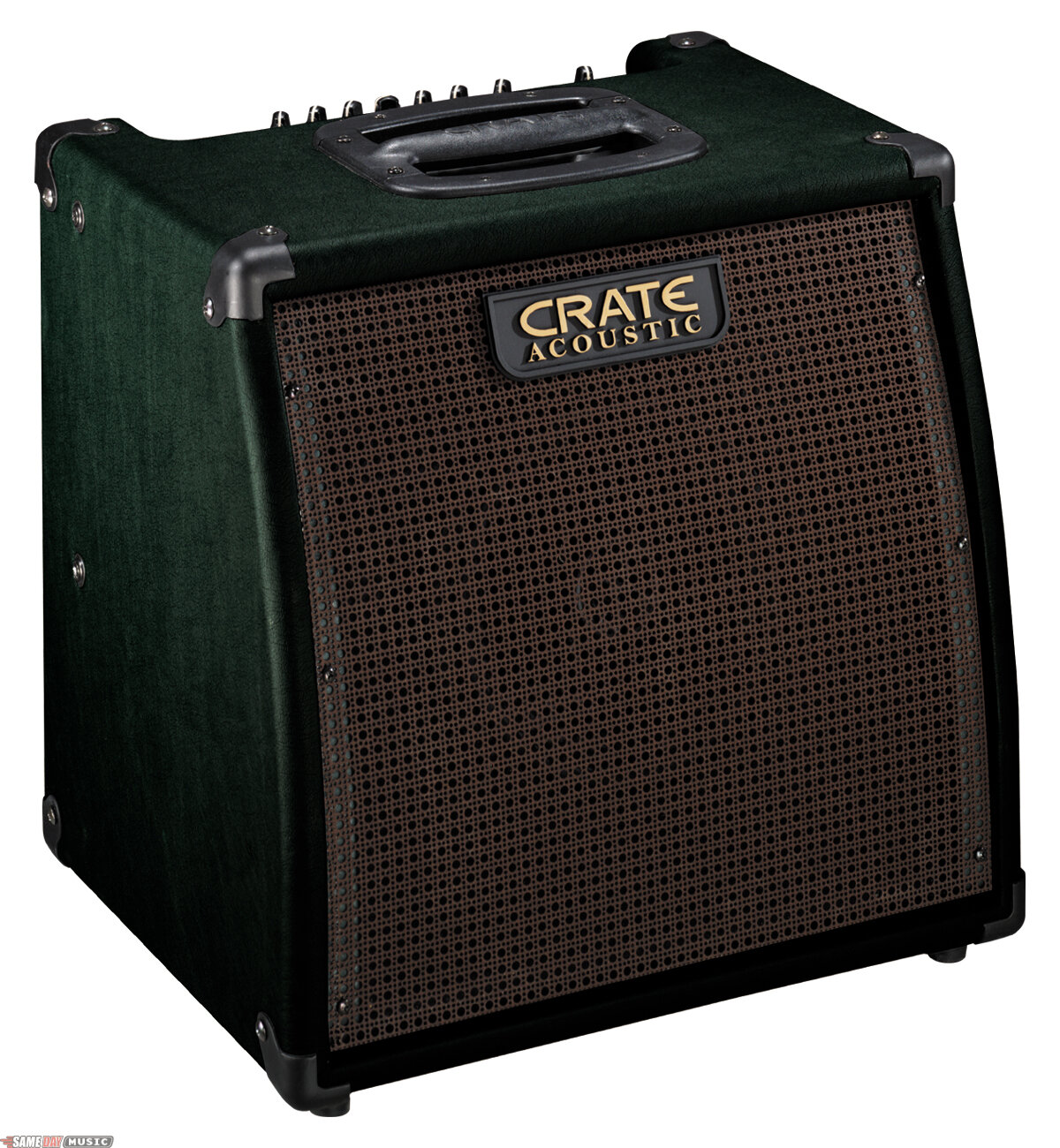

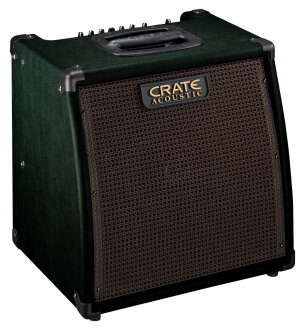

New for 2004, the CA15 "Cimarron" compact amplifier delivers over 12 watts of musical power and incorporates two inputs (each with its own gain control), three bands of equalization, and reverb. A pair of RCA type CD input jacks allows you to practice with your favorite music. A jack for headphones is provided, along with a jack for connecting the CA15 to an external speaker cabinet. A Crate Custom Design 8 in. woofer delivers smooth clear sound with excellent projection and fidelity. The CA15 features a flip-out locking bar underneath the cabinet which allows you to tilt the amplifier back for increased coverage and projection.

Technical Description

Output Power Rating: 12+ watts RMS @ 5% THD, 4 ohm load

Low: 15dB @ 80Hz

Mid: 15dB @ 650Hz

High: 15dB @ 10kHz

Input impedance: 1.5M ohm

Max input signal: 7v peak to peak

Total system gain: 52dB @ 1kHz

Input sensitivity: 20mV

Internal speakers: 8 in. Crate Custom Design, 4 ohm, 15 watts; piezo tweeter

Power requirements: 120VAC, 60Hz, 30VA 100/115VAC, 50/60Hz, 30VA 230VAC, 50/60Hz, 30VA

Size and weight: 14 in. H x 14 in. W x 12 in. D, 21 lbs.
