    Crate Limo Series TX50DB Rechargeable Guitar Amp/PA

    Mic and instrument channels.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9 Out of 10 (1 rating)
    **********

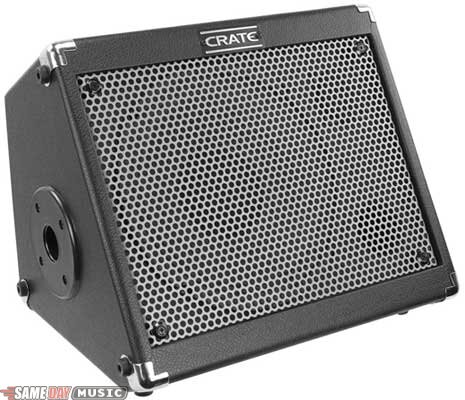

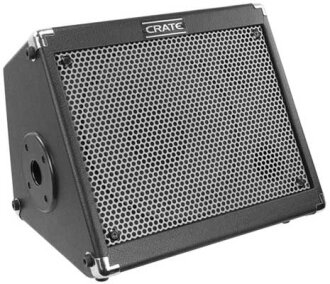

    Crate TX50DB Limo Series Rechargeable Guitar Amp/PA Product Description

    A step-up from the award winning TX30, the LIMO amplifiers provide an even more advanced feature selection. Featuring a Crate specially designed woofer and piezo tweeter, the Limo delivers 50 watts of power with digital effects. An instrument channel features clean and distortion modes. A microphone channel includes low Z XLR input, and high Z 1/4 in. input, 3 band EQ and DSP send. A main/aux. section includes dual RCA inputs for CD player, DSP mode for 8 digital effects, headphone jack and footswitch jack. Provide award winning tone wherever you go with the Taxi Series.

    Same Day Music is an authorized dealer of Crate products.

    Crate TX50DB Technical Description

    Output Power Rating: 50W RMS @ 10% THD, 4 ohms, 13.6VDC in

    Input Impedance: 1M ohm

    Maximum Signal Accepted:
    Mic Low Z 2V peak to peak
    Mic Hi Z 12V peak to peak
    Instrument 12V peak to peak

    Gain:
    Mic 57dB High Z, 72dB Low Z
    Instrument
    44dB with Gain switch out, Ch2
    85dB with Gain switch in, Ch1

    Sensitivity:
    Mic 3.5mV RMS High Z, 20mV RMS Low Z
    Instrument 80mV RMS with Gain switch out Ch2 .8mV RMS with Gain switch in Ch1
    Line In Insert 400mV RMS

    EQs, Mic:
    Low +/- 15dB @ 60Hz
    Mid +/- 15dB @ 600Hz
    High +/- 15dB @ 10kHz

    EQs, Instrument:
    Low 12.5dB range @ 80Hz
    Mid 18dB range @ 800Hz
    High 18dB range @ 10kHz
    Shape Crate proprietary circuit

    Insert Jack:
    Tip Line In
    Ring Line Out
    Sleeve Ground

    Speakers
    Woofer: Crate Custom Design 10 in., 4 ohm, 100 watt 1.5 in. voice coil, 16 oz magnet
    Tweeter: 2 in. Piezo , 4 ohm, 150 watt network

    Power Requirements
    Internal 12V DC power supply
    DC adapter for use with 120VAC
    Optional 12V vehicle lighter adapter

    Dimensions (W x H x D): 15-1/2 x 13 x 12 in.

    Weight: 32 lbs.

    Same Day Music is an authorized dealer of Crate products.

    User Reviews for Crate TX50DB Limo Series Rechargeable Guitar Amp/PA

    Product Rated 9 Out of 10 (1 rating)
    **********

    1 user has rated this product, but no one has reviewed it yet. To rate this item and/or write a review, click the "Rate It" button.
