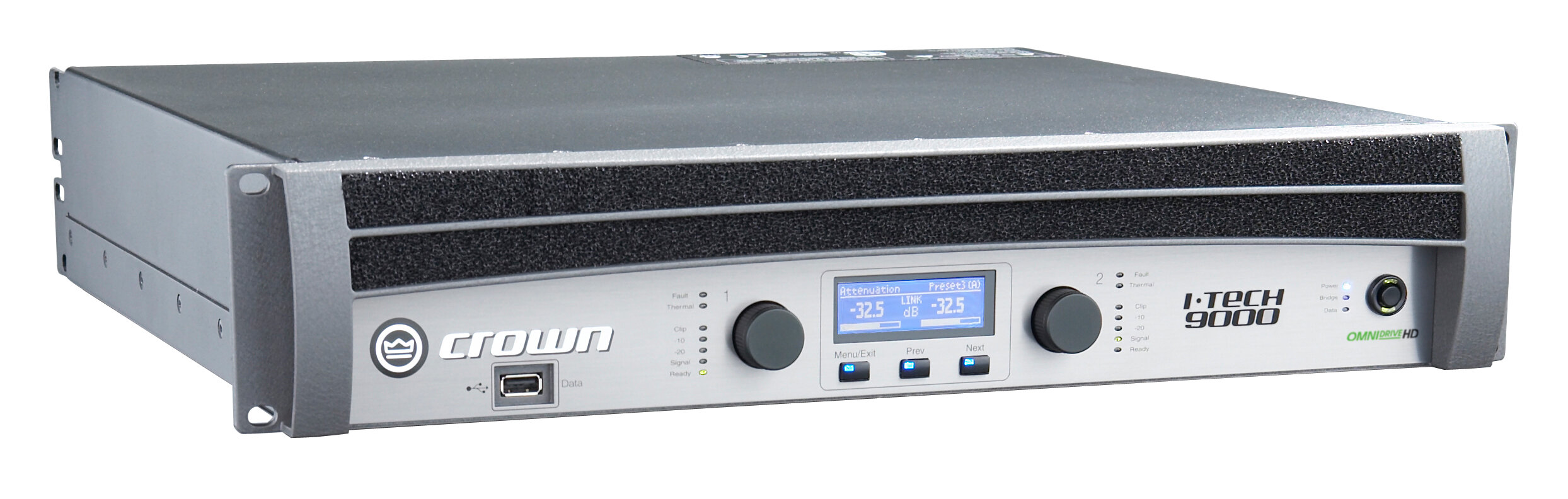

    Crown IT9000HD I-Tech HD Series Power Amplifier Product Description

    The Crown IT9000HD I-Tech HD Series amplifier offers amazing power, light weight and ease of use for touring sound applications. Unlike other amplifiers, it includes onboard high-definition DSP, an LCD control screen, and a built-in network connection.

    Features

    - Global Power Supply with PFC (Power Factor Correction) works anywhere in the world
    - High power density, up to 8000 watts in a 2U chassis
    - Highest output voltage in the industry (200V peak) provides clean transient peaks
    - 3rd-generation patented Class I (BCA) circuitry couples power efficiently to the load and provides low AC current draw
    - Onboard high-definition DSP with 24-bit, 192 kHz Cirrus Logic SHARC A/D and D/A converters
    - Advanced IIR filters and linear-phase FIR filters
    - Pushbutton presets simplify setup. Custom presets for various loudspeakers can be down loaded
    - AES/EBU digital audio input
    - EtherCon Ethernet connector for HiQnet control or CobraNet digital audio transport
    - Analog and digital thru connectors
    - LCD Control Screen is used to adjust the amplifier's attenuation and muting, configure the amp, set up and view error monitoring, and recall DSP presets to reconfi gure the amp for various applications
    - Comprehensive array of indicators provide accurate diagnostics: Power, Data, along with Ready, Signal, Clip, Thermal and Fault for each channel
    - AC mains indicator in power switch glows green when AC power is present
    - Front-panel USB connector accepts a USB drive to transfer presets from the drive to the amplifier DSP, and vice versa
    - Light weight due to aluminum chassis, special internal construction and switching power supply
    - Thermal management controller and two discrete thermal zones with variable-speed fans, forced-air cooling
    -20 amp IEC power cord included
    - Advanced protection circuitry guards against: shorted outputs, DC, mismatched loads, general overheating, under/over volt age, high frequency overloads and internal faults
    - Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications


    Same Day Music is an authorized dealer of Crown products.

    Crown IT9000HD I-Tech HD Power Amplifier Technical Description

    - Power Output:
    - 20 mS Burst: 4,700 watts
    - 20 Hz - 20 kHz: 2,800 watts
    - 1 kHz: 2,800 watts
    - 4-ohm Dual (per ch) : 3,500 watts
    - 8-ohm Dual (per ch) : 1,500 watts
    - 4-ohm Bridge: 5,600 watts
    - 8-ohm Bridge: 7,000 watts
    - Frequency Response (at 1 watt, 20 Hz - 20 kHz) : +/-0.25dB
    - Signal to Noise Ratio below rated full-bandwidth power, A-weighted: > 112 dB
    - Total Harmonic Distortion (THD) at full rated power: < 0.1%
    - Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1, from full rated output to -35 dB: < 0.2%
    - Damping Factor (20 Hz to 100 Hz at 8 ohms) : > 5000
    - Crosstalk (below rated power, 20 Hz to 1 kHz) : > 80 dB
    - Common Mode Rejection (CMR) (20 Hz to 1 kHz) : > 70 dB typical
    - Latency (analog, digital inputs) : 1.13 mS analog, 1.81 mS digital (96 kHz)
    - A/D, D/A Converters: 24-bit 192 kHz Cirrus Logic
    - Digital Input: AES/EBU, 24-bit, 32-96 kHz. Onboard sample-rate converter
    - Network: Onboard TCP/IQ and HiQnet, compatible with standard 100 Mb Ethernet hardware
    - DSP: 24-bit conversion with 32-bit, floating-point DSP processing
    - Load Impedance:
    - Stereo: 1/2/4/8/16 ohms
    - Bridge Mono: 2/4/8 ohms
    - Input Sensitivity (referenced to 8 ohm rated output) : Adjustable in 0.1V steps from 1.4V to 7.75V
    - Required AC Mains: Universal AC input, 100-240VAC, 50/60 Hz (+/-10%)
