    Crown 9000i Macro-Tech Power Amp

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    FIND SIMILAR PRODUCTS

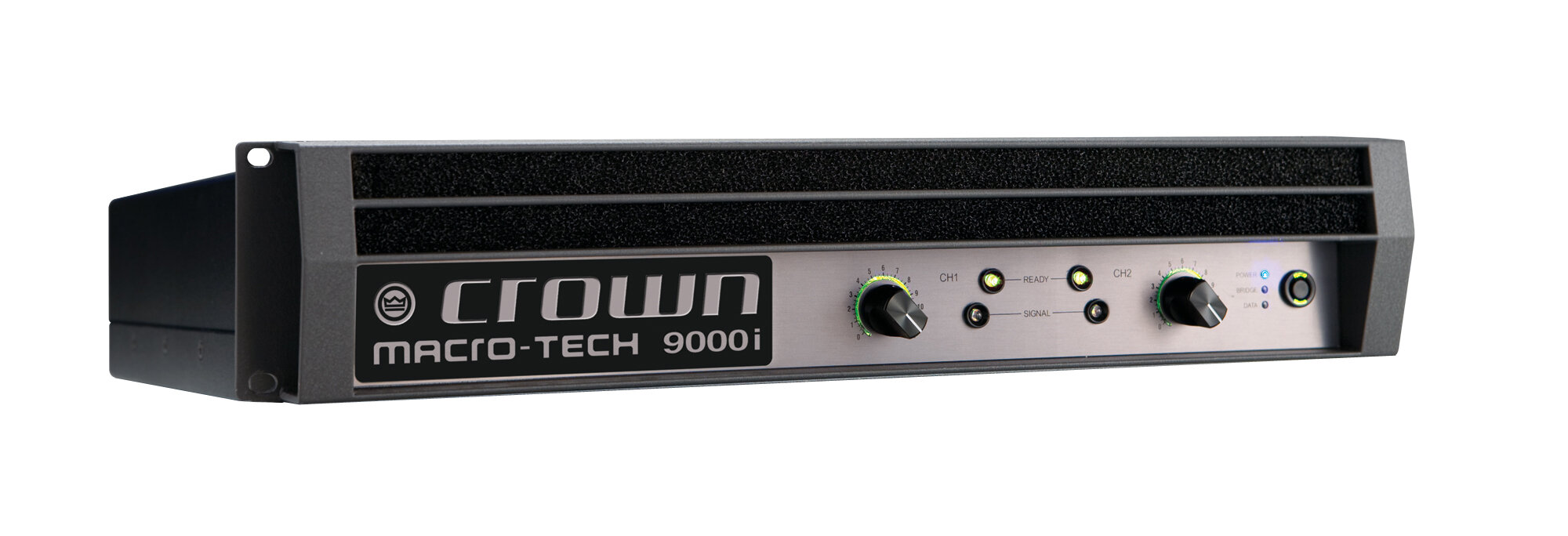

    Crown Macro-Tech 9000i Power Amplifier Product Description

    The Crown Macro-Tech 9000i power amplifier is a solid-state two-channel model with a switch-mode universal power supply. The outputs are usable as dual or bridged-mono modes of operation. The bridged-mono mode bridges the outputs to provide increased output voltage. The Crown Macro-Tech i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection.

    Features

    - The Macro-Tech i Series continues the Crown Macro-Tec legacy of unparalleled sonic accuracy and detail, putting sound quality above all else
    - Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste
    - Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road
    - Global Power Supply ? designed to deliver maximum power no matter what country you work in
    - Built-in load, line voltage, input and output monitoring
    -20 amp IEC power cord included
    - Standard Ethernet networking via System Architect lets system


    Same Day Music is an authorized dealer of Crown products.

    Crown Macro-Tech 9000i Power Amplifier Technical Description

    - Power Output (Guaranteed minimum power in watts at 20 Hz-20 kHz with 0.35% THD) :
    - 2-ohm Dual (per ch.) 20 mS Burst: 4,700 watts
    - 2-ohm Dual (per ch.) 20 Hz - 20 kHz: 2,800 watts
    - 2-ohm Dual (per ch.) 1 kHz: 2,800 watts
    - 4-ohm Dual (per ch): 3,500 watts
    - 8-ohm Dual (per ch): 1,500 watts
    - 4-ohm Bridge: 5,600 watts
    - 8-ohm Bridge: 7,000 watts
    - Frequency Response (at 1 watt, 20 Hz - 20 kHz into 8 ohms) : +/-0.25 dB
    - Signal to Noise Ratio below rated full-bandwidth power, A-weighted : > 110 dB
    - Total Harmonic Distortion (THD) at 2 watts into 8 ohms : < 0.1%
    - Total Harmonic Distortion (THD) Plus Noise at full rated power : < 0.35%
    - Intermodulation Distortion (IMD)60 Hz and 7 kHz at 4:1, from full rated output to ?30 dB : < 0.35%
    - Damping Factor (20 Hz to 100 Hz at 8 ohms) : > 5000
    - Crosstalk (below rated power, 20 Hz to 1 kHz) : > 80 dB
    - Common Mode Rejection (CMR) (20 Hz to 1 kHz) : 55 dB, typically > 70 dB
    - DC Output Offset (shorted input) : < +/- 3 mV
    - Input Impedance (nominal) :
    - 10 kilohms balanced
    - 5 kilohms unbalanced
    - Maximum Input Level: +20 dBu typical
    - Load Impedance (Note: Safe with all types of loads) :
    - Stereo: 1/2/4/8/16 ohms.
    - Bridge Mono: 2/4/8 ohms.
    - Input Sensitivity (referenced to 8 ohm rated output) : 1.4V, 32 dB gain, and 26 dB gain
    - Voltage Gain (referenced to 8 ohm rated output) :
    - MA-5000i: 37.1 dB to 22.2 dB
    - MA-9000i: 37.9 dB to 23.0 dB
    - MA-12000i: 39.3 dB to 24.5 dB


    Same Day Music is an authorized dealer of Crown products.
