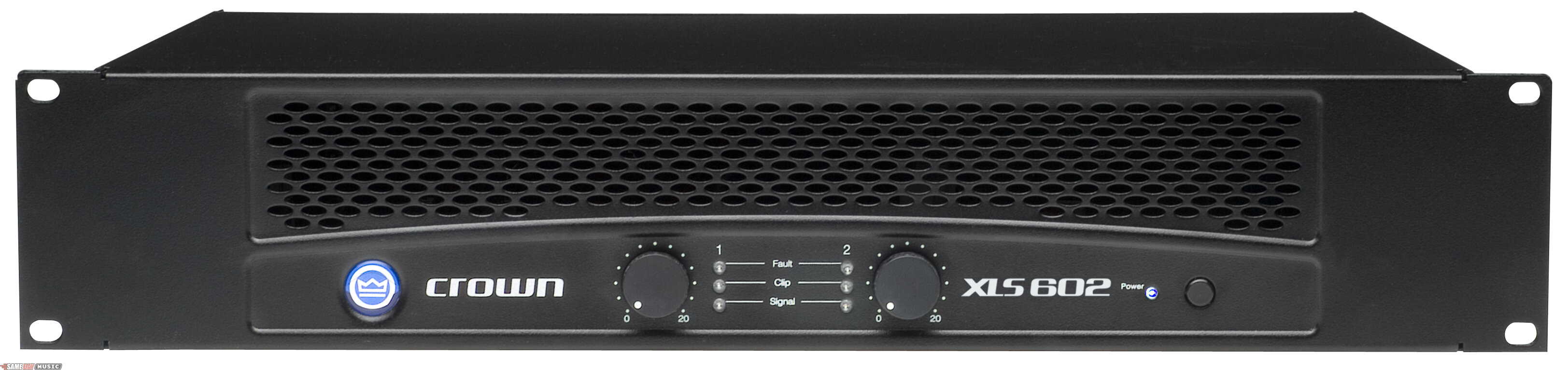

Crown XLS602D Amplifier (1200 Watts)

Crown XLS602D Amplifier (1200 Watts)

Features
Reliable design incorporates many popular features

Housed in a rugged, all-steel 2U chassis

Efficient forced-air fans prevent excessive thermal buildup

Electronically balanced XLR inputs; touchproof binding post and Speakon

Same Day Music is an authorized dealer of Crown products.

The following applies to units in Stereo mode with 8-ohm loads unless otherwise specified.

Performance
380W @ 8 ohms stereo
600W @ 4 ohms stereo
1200W @ 8 ohms bridged

Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25 V.

Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, 0.8 dB.

Signal-to-Noise Ratio (20 Hz to 20 kHz)
A-weighted, below rated power:
>98 dB.
No weighting, below rated power:
>93 dB.

Total Harmonic Distortion (THD): <0.5%.

Intermodulation Distortion (IMD):
(60 Hz and 7 kHz at 4:1) from full rated output to +40 dB: < 0.3%.

Damping Factor (8 ohm) 10 Hz to 400 Hz: >200.

Crosstalk (below rated power)
at 1 kHz: +76 dB. at 20 kHz: +58 dB.

Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced.

Load Impedance: Rated for 2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono.

The following applies to units in Stereo mode with 8-ohm loads and rated input sensitivity unless otherwise specified.

Sensitivity (volts RMS) for full rated power at 4 ohms: 1.025

Frequency Response (at 1 watt) 20 Hz to 20 kHz: Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25

Frequency Response (at 1 watt, 22 Hz - 20 kHz): +0 dB, -1 dB

Signal to Noise Ratio below rated power (20 Hz to 20 kHz, inputs terminated)

A-weighted, below rated power: > 100 dB

No weighting, below rated power: > 95 dB

Total Harmonic Distortion (THD) at 1 full bandwidth power, from 20 Hz to 1 kHz:
< 0.5%

Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1, from full rated output to -30 dB: < 0.3%

Damping Factor (8 ohm): 10 Hz to 400 Hz: > 200
Crosstalk (below rated power):
- at 1 kHz: -75 dB
- at 20 kHz: -50 dB

Input Impedance (nominal) (balanced, unbalanced): 20 kilohms, 10 kilohms

Load impedance
- Stereo: 4-8 ohms
- Bridge mono: 8 ohms

AC Line Voltage and Frequency Configurations Available (+/- 10%):
- 120 VAC 60 Hz
- 100 VAC 50/60 Hz
- 220 VAC 50 Hz
- 230-240 VAC 50 Hz

Ventilation: Flow-through ventilation from front to back

Cooling: Internal heat sinks with forced-air cooling

Air Volume Requirements (per minute per unit): 80.15 ft3 (2.27 m3)

Dimensions: Width, Height, Depth
- XLS 202, 402, 602, 802: EIA Standard 19"W (EIA RS-310-B) x 3.5" (8.9 cm) H x15.2" (38.6cm) D.
- XLS 5000: EIA Standard 19"W (EIA RS-310-B), 5.25" ( 13.3 cm) H x 15.5" (39.5 cm) D.

Net Weight, Shipping Weight:
- XLS 202: 23.0 lb (10.4 kg)
- XLS 402: 25.7 lb (11.7 kg)
- XLS 602: 29.0 lb (13.2 kg)
- XLS 802: 35.5 lb (16.1 kg)
- XLS 5000: 62.0 lb (27.7 kg)

Same Day Music is an authorized dealer of Crown products.

Efficient, powerful, affordable@Forced-air cooling@Detented level controls@XLR inputs, binding post and Speakon outputs@380 watts per channel at 8 ohms
