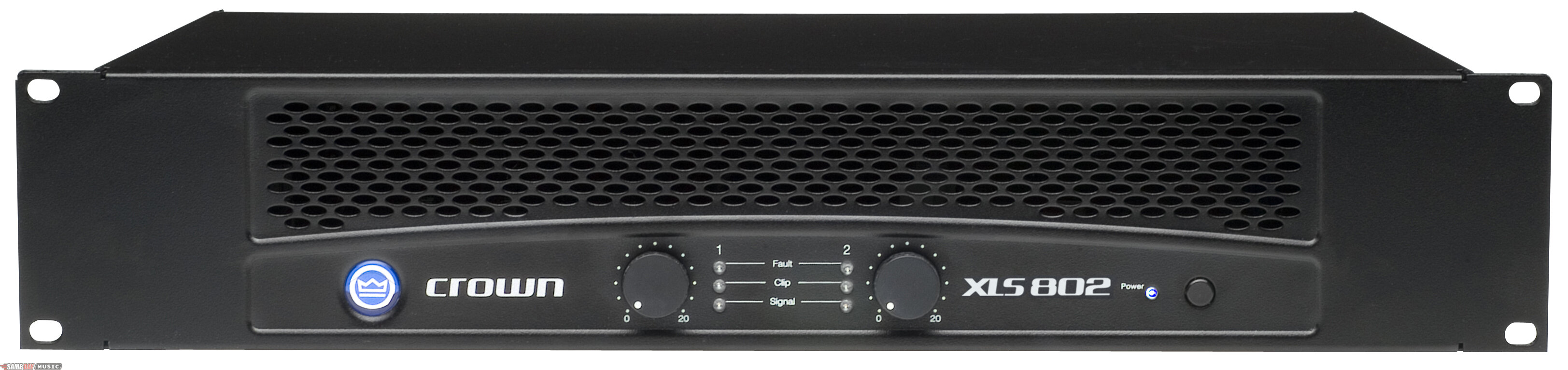

Crown XLS802 Power Amplifier
Reliable design. Efficient forced-air fans. Electronically balanced XLR inputs.
Product rated 10.0 out of 10 (2 ratings)
- LIMITED TIME OFFER
- Free pair of 30ft Speaker Cables and Crown Hat while supplies last. Select "New, With Speaker Cables and Hat" for this offer.
- Buy a new Crown XLS802 amplifier from May, 1st 2008 and Jun. 30th 2008 and receive $120 back from Crown through mail-in rebate.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Free Hat
MORE RESOURCES:
PRODUCT DESCRIPTION
The XLS Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. The line consists of four models in a uniform, rugged 2U chassis, incorporating the best of tried-and-true design principles and innovative features.
The 4 models in the series are the XLS-202, XLS-402, XLS-602, and XLS-802. They are identical except for output power and weight.
XLS Series amplifiers are professional stereo power amplifiers engineered to meet demanding audio requirementsreliably and within budget. Plus, every XLS Series amplifier is backed by Crowns unequaled 3-Year, No-Fault, Fully Transferable Warranty that covers everything. With over 5 decades of experience designing and building rock-solid products, Crown is the standard in amp technology. So check out the affordable, Crown XLS Series. They are a powerful argument for quality and value!
Features:
Reliable design incorporates many popular features
Housed in a rugged, all-steel 2U chassis
Efficient forced-air fans prevent excessive thermal buildup
Electronically balanced XLR inputs; touchproof binding post and Speakon
The 4 models in the series are the XLS-202, XLS-402, XLS-602, and XLS-802. They are identical except for output power and weight.
XLS Series amplifiers are professional stereo power amplifiers engineered to meet demanding audio requirementsreliably and within budget. Plus, every XLS Series amplifier is backed by Crowns unequaled 3-Year, No-Fault, Fully Transferable Warranty that covers everything. With over 5 decades of experience designing and building rock-solid products, Crown is the standard in amp technology. So check out the affordable, Crown XLS Series. They are a powerful argument for quality and value!
Features:
Reliable design incorporates many popular features
Housed in a rugged, all-steel 2U chassis
Efficient forced-air fans prevent excessive thermal buildup
Electronically balanced XLR inputs; touchproof binding post and Speakon
TECHNICAL DESCRIPTION
Performance
Power (1 kHz*):
8 ohms: 500W
4 ohms: 800W
2 ohms: 1050W
8 ohms bridged to mono: 1600W
4 ohms bridged to mono: 2100W
*1 kHz Power: refers to maximum average power in watts at 1 kHz with 0.5% THD.
Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25 V
Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, +0.8 dB
Signal-to-Noise Ratio (20 Hz to 20 kHz)
A-weighted, below rated power: >98 dB
No weighting, below rated power: >93 dB
Total Harmonic Distortion (THD): <0.5%
Intermodulation Distortion (IMD): (60 Hz and 7 kHz at 4:1) from full rated output to +40 dB: < 0.3%
Damping Factor (8 ohm) 10 Hz to 400 Hz: >200
Crosstalk (below rated power) at 1 kHz: +76 dB. at 20 kHz: +58 dB
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance: Rated for 2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono
AC Line Voltage and Frequency Configurations Available (+/-10%): 120 VAC 60 Hz, 100 VAC 50/60 Hz, 220 VAC 50 Hz, and 230-240 VAC
Controls
Level: 2 front-panel rotary level controls, 1 for each channel
Power: Front-panel switch; on when in the IN position
Circuit Breaker: Back-panel breaker provides overload protection
Mode Switch: Back-panel switch selects Dual or Bridge-Mono mode
Indicators
Signal Presence Indicators: 2 green LEDs, one for each channel, illuminate when the channel's input signal exceeds +40 dBu
Clip Indicators: 2 red LEDs, 1 for each channel, illuminate when the channel's output is being overdriven
Power Indicator: Blue LED indicates amplifier has been turned on and AC power is available
Fault Indicator: 2 red LEDs illuminate when amplifier is in protect mode. Also illuminates briefly during normal power-up when amplifier is first switched on
Input/Output
Input Connectors: 1 per channel; back-panel 3-pin female XLR input connectors
Output Connectors: Two 4-Pole Speakon Output Connectors accept 2-pole or 4-pole Speakon connectors. The top Speakon connector is wired for both channels so it can be used for bridge-mono wiring or for stereo wiring of two speakers to a single Speakon connector. One pair of back-panel binding posts per channel; accepts banana plugs or bare wire. (European models do not accept banana plugs.)
Protection
XLS Series amplifiers provide extensive protection and diagnostic capabilities, including output current limiting, DC protection, circuit breaker, and thermal protection.
Construction
Ventilation: Flow-through ventilation from front to back
Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
Air Volume Requirements (per minute per unit): 80.15 cubic ft.
Dimensions: EIA Standard 19 in. (48.3-cm) rack mount width (EIA RS-310-B), 3.5-inch (8.9-cm) height and 15.2 in. (38.6-cm) depth
Net Weight: 35.5 lb (16.1 kg)
Shipping Weight: 40.5 lb (18.4 kg)
Power (1 kHz*):
8 ohms: 500W
4 ohms: 800W
2 ohms: 1050W
8 ohms bridged to mono: 1600W
4 ohms bridged to mono: 2100W
*1 kHz Power: refers to maximum average power in watts at 1 kHz with 0.5% THD.
Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25 V
Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, +0.8 dB
Signal-to-Noise Ratio (20 Hz to 20 kHz)
A-weighted, below rated power: >98 dB
No weighting, below rated power: >93 dB
Total Harmonic Distortion (THD): <0.5%
Intermodulation Distortion (IMD): (60 Hz and 7 kHz at 4:1) from full rated output to +40 dB: < 0.3%
Damping Factor (8 ohm) 10 Hz to 400 Hz: >200
Crosstalk (below rated power) at 1 kHz: +76 dB. at 20 kHz: +58 dB
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance: Rated for 2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono
AC Line Voltage and Frequency Configurations Available (+/-10%): 120 VAC 60 Hz, 100 VAC 50/60 Hz, 220 VAC 50 Hz, and 230-240 VAC
Controls
Level: 2 front-panel rotary level controls, 1 for each channel
Power: Front-panel switch; on when in the IN position
Circuit Breaker: Back-panel breaker provides overload protection
Mode Switch: Back-panel switch selects Dual or Bridge-Mono mode
Indicators
Signal Presence Indicators: 2 green LEDs, one for each channel, illuminate when the channel's input signal exceeds +40 dBu
Clip Indicators: 2 red LEDs, 1 for each channel, illuminate when the channel's output is being overdriven
Power Indicator: Blue LED indicates amplifier has been turned on and AC power is available
Fault Indicator: 2 red LEDs illuminate when amplifier is in protect mode. Also illuminates briefly during normal power-up when amplifier is first switched on
Input/Output
Input Connectors: 1 per channel; back-panel 3-pin female XLR input connectors
Output Connectors: Two 4-Pole Speakon Output Connectors accept 2-pole or 4-pole Speakon connectors. The top Speakon connector is wired for both channels so it can be used for bridge-mono wiring or for stereo wiring of two speakers to a single Speakon connector. One pair of back-panel binding posts per channel; accepts banana plugs or bare wire. (European models do not accept banana plugs.)
Protection
XLS Series amplifiers provide extensive protection and diagnostic capabilities, including output current limiting, DC protection, circuit breaker, and thermal protection.
Construction
Ventilation: Flow-through ventilation from front to back
Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
Air Volume Requirements (per minute per unit): 80.15 cubic ft.
Dimensions: EIA Standard 19 in. (48.3-cm) rack mount width (EIA RS-310-B), 3.5-inch (8.9-cm) height and 15.2 in. (38.6-cm) depth
Net Weight: 35.5 lb (16.1 kg)
Shipping Weight: 40.5 lb (18.4 kg)
CATALOG DESCRIPTION
Efficient, powerful, affordable@Forced-air cooling@Detented level controls@XLR inputs, binding post and Speakon outputs@500 watts per channel at 8 ohms
