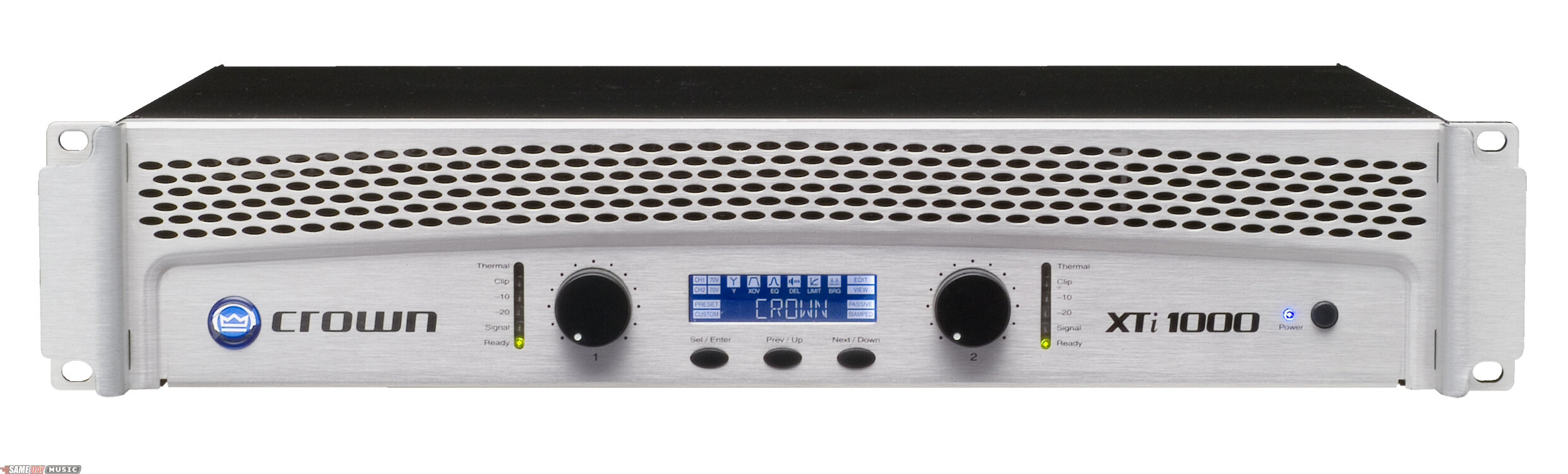

Crown XTi 1000 Power Amplifier (1400 Watts)

The Crown XTi 1000 amplifier is a professional tool designed and built for portable PA applications. It's rugged and lightweight, and offers unmatched value in it's class.

The Crown XTi 1000 amplifier features an LCD screen with DSP speaker presets for crossover frequencies, EQ, limiting, delay, and a subharmonic synthesizer. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan assisted cooling, XLR inputs, Speakon and binding-post outputs, short-circuit protection and more.

With it's powerful, reliable performance, the Crown XTi 1000 amp easily handles 2-ohm loads and is capable of chest-thumping lows. Plus, your investment in an XTi 1000 amplifier is backed by Crown's 3-Year, No-Fault, Fully Transferable Warranty.

Crown XTi 1000 features:

- Integrated proprietary DSP with LCD front panel display
- Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
- Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults
- Extremely versatile, handling a wide range of speaker impedances and outputs
- Switch-mode universal power supply
- Speaker presets for crossover frequencies, EQ, limiting, and delay
- All products fill 2U rack spaces and weigh under 17 lbs.; weight sets a new standard in lightweight amps (20% less)
- Speakon and binding post outputs, XLR inputs and loop-thrus
- Comprehensive LED status per channel
- 3-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications

Crown XTi 1000 Power:

8 ohms: 275W
4 ohms: 500W
2 ohms: 700W*
8 ohms bridged to mono: 1000W
4 ohms bridged to mono: 1400W*

Same Day Music is an authorized dealer of Crown products.

XTi 1000 Power:
8 ohms: 275W
4 ohms: 500W
2 ohms: 700W*
8 ohms bridged to mono: 1000W
4 ohms bridged to mono: 1400W*

*With 1% THD.

Voltage Gain at 1kHz, 8 ohm rated output:
XTi 1000: 30.5 dB
XTi 2000: 32.9 dB
XTi 4000: 34.2 dB

Frequency Response: +/-0.25 dB from 20 Hz to 20 kHz at 1 watt into 4 ohms

Phase Response (at 1 watt, 20 Hz to 20 kHz): +/-15 degrees

Load Impedance: Safe with all types of loads. Rated for 2 to 8 ohms in Stereo mode, 4 to 16 ohms in Bridge-Mono mode

Sensitivity: 1.4V

Signal to Noise Ratio (below rated 1 kHz power at 8 ohms): 105 dB (A weighted)

Damping Factor: Better than 500 from 20 Hz to 500 Hz

Crosstalk: > 80 dB below rated power, 20 Hz to 1 kHz

Common Mode Rejection (CMR): > 45 dB from 20 Hz to 1 kHz

Input Stage: Input is electronically balanced and employs precision 1% resistors

Input Impedance (nominal): 20 k ohms, balanced;10 k ohms, unbalanced

Maximum Input Signal: +22 dBu typical

AC Line Voltage and Frequency Configurations Available: 100V, 120V, 220-240V 50/60 Hz

AC Line Current:
XTi 1000: 6.5A
XTi 2000: 6.9A
XTi 4000: 8.0A

At Idle: Draws no more than 90 watts

Operating Temperature: 0 degrees C to 40 degrees C at 95% relative humidity (non-condensing)

DSP Section
EQ: 4-band paragraphic per channel, boost/cut

Same Day Music is an authorized dealer of Crown products.

Power amp with onboard DSP@Digital crossover, EQ, limiting, delay, and subharmonic generator@Front-panel LCD for editing@XLR inputs, binding post and Speakon outputs@275 watts per channel at 8 ohms
