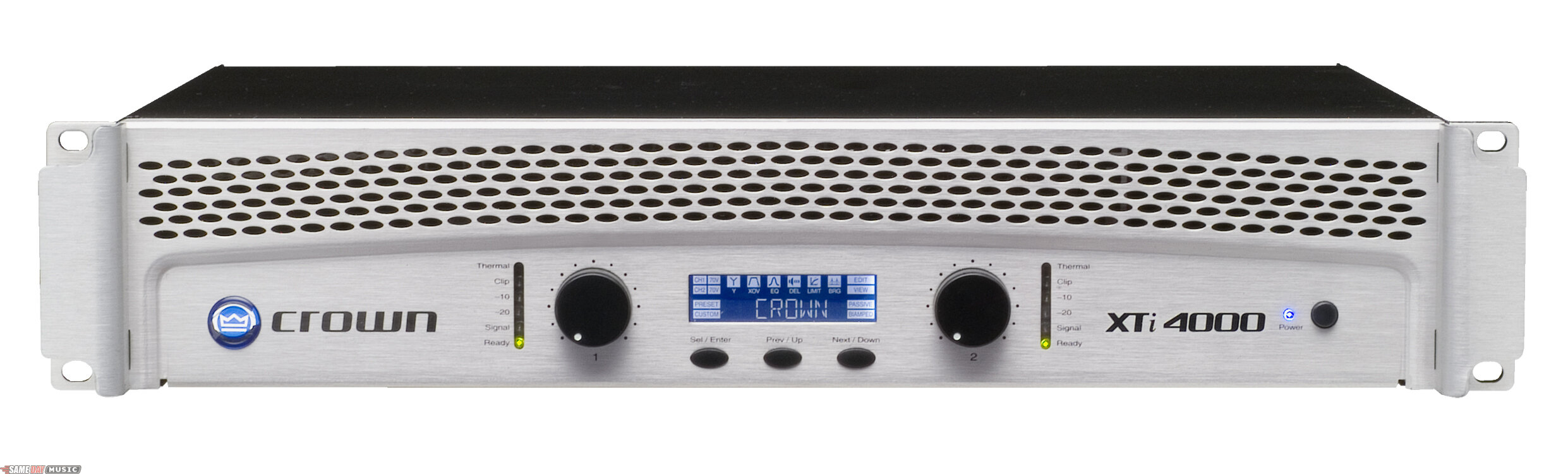

Product Description

The XTi Series of Crown amplifiers are professional tools designed and built for portable PA applications. The series includes 3 models which are identical except for output power: XTI 1000, 2000 and 4000. All are rugged and lightweight, and offer unmatched value in their class.

XTi-Series amplifiers feature an LCD screen with DSP speaker presets for crossover frequencies, EQ, limiting, delay, and a subharmonic synthesizer. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan assisted cooling, XLR inputs, Speakon and binding-post outputs, short-circuit protection and more.

With their powerful, reliable performance, XTi-Series amps easily handle 2-ohm loads and are capable of chest-thumping lows. Plus, your investment in an XTi-Series amplifier is backed by Crown's 3-Year, No-Fault, Fully Transferable Warranty.

Features:
Integrated proprietary DSP with LCD front panel display

Accurate, uncolored sound with very low distortion for the best in music and voice reproduction

Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults

Extremely versatile, handling a wide range of speaker impedances and outputs

Switch-mode universal power supply

Speaker presets for crossover frequencies, EQ, limiting, and delay

All products fill 2U rack spaces and weigh under 17 lbs.; weight sets a new standard in lightweight amps (20% less)

Speakon and binding post outputs, XLR inputs and loop-thrus

Comprehensive LED status per channel

3-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications

Technical Description

XTi 4000 Power:
8 ohms: 650W
4 ohms: 1200W
2 ohms: 1600W*
8 ohms bridged to mono: 2400W
4 ohms bridged to mono: 3200W*

*With 1% THD.

Voltage Gain at 1kHz, 8 ohm rated output:
XTi 1000: 30.5 dB
XTi 2000: 32.9 dB
XTi 4000: 34.2 dB

Frequency Response: +/-0.25 dB from 20 Hz to 20 kHz at 1 watt into 4 ohms

Phase Response (at 1 watt, 20 Hz to 20 kHz): +/-15 degrees

Load Impedance: Safe with all types of loads. Rated for 2 to 8 ohms in Stereo mode, 4 to 16 ohms in Bridge-Mono mode

Sensitivity: 1.4V

Signal to Noise Ratio (below rated 1 kHz power at 8 ohms): 105 dB (A weighted)

Damping Factor: Better than 500 from 20 Hz to 500 Hz

Crosstalk: > 80 dB below rated power, 20 Hz to 1 kHz

Common Mode Rejection (CMR): > 45 dB from 20 Hz to 1 kHz

Input Stage: Input is electronically balanced and employs precision 1% resistors

Input Impedance (nominal): 20 k ohms, balanced;10 k ohms, unbalanced

Maximum Input Signal: +22 dBu typical

AC Line Voltage and Frequency Configurations Available: 100V, 120V, 220-240V 50/60 Hz

AC Line Current:
XTi 1000: 6.5A
XTi 2000: 6.9A
XTi 4000: 8.0A

At Idle: Draws no more than 90 watts

Operating Temperature: 0 degrees C to 40 degrees C at 95% relative humidity (non-condensing)

DSP Section
EQ: 4-band paragraphic per channel, boost/cut

Catalog Description

Power amp with onboard DSP@Digital crossover, EQ, limiting, delay, and subharmonic generator@Front-panel LCD for editing@XLR inputs, binding post and Speakon outputs@XTi 2000 has 475 watts per channel at 8 ohms@XTi 4000 has 650 watts per channel at 8 ohms
