Product Description

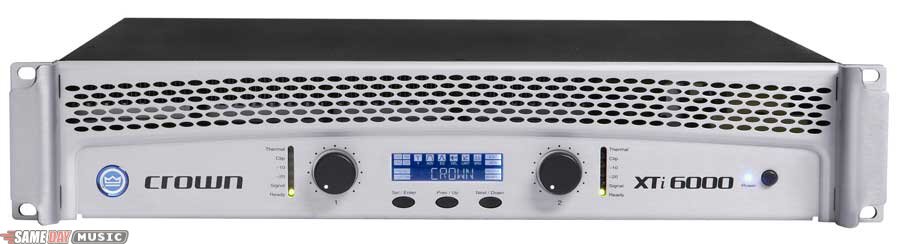

The Crown XTI6000 Power Amplifier is a rugged and lightweight power amp that offers unmatched value in its class. Providing up to 6,000 watts into a 4 ohm bridged load and weighing in at just 24 pounds, the XTI6000 sets a new standard in high-power, lightweight amplification.

The XTI6000 also inherits all the best features from the family line, the XTI Series, including powerful integrated speaker processing and an extremely efficient universal tracking switch-mode power supply.

When you're out with the XTI6000, you can count on having the best in music and voice reproduction with more power than ever.

Features
Integrated proprietary DSP with LCD front panel display

Accurate, uncolored sound with very low distortion for the best in music and voice reproduction

Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults

Extremely versatile, handling a wide range of speaker impedances and outputs

Switch-mode universal power supply

Speaker presets for crossover frequencies, EQ, limiting, and delay

All products fill 2U rack spaces and weigh under 17 pounds; weight sets a new standard in lightweight amps (20% less)

Speakon and binding post outputs, XLR inputs and loop-thrus

Comprehensive LED status per channel

Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications

Technical Description

Output Power (1kHz Power) (With 0.5% THD):
- 2 ohm Stereo (per channel) (With 1% THD): 3,000 Watts
- 4 ohm Stereo (per channel): 2,100 Watts
- 8 ohm Stereo (per channel): 1,200 Watts
- 4 ohm Bridge-Mono (With 1% THD): 6,000 Watts
- 8 ohm Bridge-Mono: 4,200 Watts

Sensitivity (volts RMS) for full rated power at 4 ohms: 1.4V

Frequency Response (at 1 watt into 4 ohms, 20Hz - 20 kHz): +0/-1 dB

Signal to Noise Ratio (below rated 1 kHz power at 8 ohms), A-weighted: 100 dB

Damping Factor (8 ohm): 20 Hz to 400 Hz: > 500

Input Stage: Input is electronically balanced and employs precision 1% resistors

At Idle: Draws no more than 90 watts

Crosstalk (below rated power) 20 Hz to 1 kHz: > 70 dB

Input Impedance (nominal):
- 20 kilohms balanced
- 10 kilohms unbalanced

Load impedance (note: safe with all types of loads)
- Stereo: 2-8 ohms
- Bridge mono: 4-16 ohms

Voltage Gain (at 1 kHz, 8 ohm rated output): 37.1 dB

Maximum Input Signal: +22 dBu typical

Operating Temperature: 0* C to 40* C at 95% relative humidity (non-condensing)

AC Line Voltage and Frequency Configurations Available (+/- 10%): 100V, 120V, 220-240V 50/60 Hz

Ventilation: Flow-through ventilation from front to back

Cooling: Heat sinks and proportional-speed fan

Dimensions (W x H x D) (behind mounting surface): 19 x 3.5 x 16.2 inches (48.26 x 8.9 x 41.15 cm)

Weight:
- Net Weight: 24 pounds (10.9 kg)
- Shipping Weight: 30 pounds (13.6 kg)
