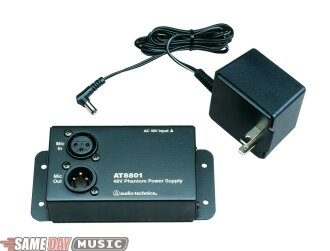

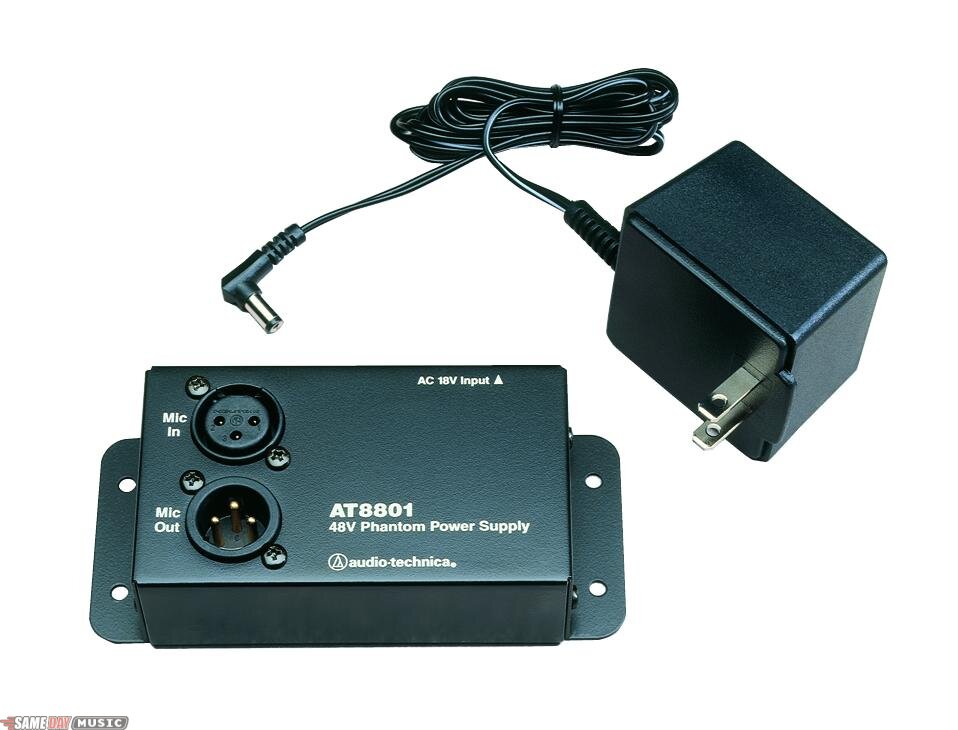

Audio Technica AT8801 48VDC Single Channel Phantom Power Supply
Single-channel 48V Phantom Power Supply.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
This line-powered device allows the use of remote-powered microphones with systems that do not supply phantom power. Each unit features a highly-regulated power supply which provides a constant voltage source, even with a heavily-loaded input. The regulator IC is internally protected to prevent overheating or damage even if shorted.
About Audio-Technica
Audio-Technica has been dedicated to advancing the art and technology of electro-acoustic design and manufacturing since 1962.
From a beginning in state-of-the-art phono cartridges, A-T has expanded over the years into high-performance headphones, microphones, mixers, and electronic products for home and professional use. In each new area the goal has been to create innovative, problem-solving products.
The results of these engineering and production efforts can be seen in the effective use of A-T products in a broad spectrum of applications.
Audio-Technica microphones, for example, are found in daily use in major broadcast and recording studios, and relied upon by top touring musicians. A-T mics are chosen for important installations and major events, such as the US House of Representatives, the US Senate, the Super Bowl, World Cup Soccer, and the Olympics.
Whether in the home, or in schools and universities, boardrooms, council chambers, or places of worship, Audio-Technica products are providing superior performance and exceptional value worldwide.
About Audio-Technica
Audio-Technica has been dedicated to advancing the art and technology of electro-acoustic design and manufacturing since 1962.
From a beginning in state-of-the-art phono cartridges, A-T has expanded over the years into high-performance headphones, microphones, mixers, and electronic products for home and professional use. In each new area the goal has been to create innovative, problem-solving products.
The results of these engineering and production efforts can be seen in the effective use of A-T products in a broad spectrum of applications.
Audio-Technica microphones, for example, are found in daily use in major broadcast and recording studios, and relied upon by top touring musicians. A-T mics are chosen for important installations and major events, such as the US House of Representatives, the US Senate, the Super Bowl, World Cup Soccer, and the Olympics.
Whether in the home, or in schools and universities, boardrooms, council chambers, or places of worship, Audio-Technica products are providing superior performance and exceptional value worldwide.
TECHNICAL DESCRIPTION
Number of Channels: 1
Regulated Output Voltage: 48V ±2V DC
Short Circuit Output Current: 14 mA
Residual Output Noise: -71 dBV
Frequency Response: 10-25,000 Hz
AC Input: 120V AC, 60 Hz, 2 W max.
External Power Supply: UL and CSA-approved AC power module with 6' (1.8 m) cable.
Dimensions (W x D x H): 5.12 x 2.36 x 1.73 in. (130 x 60 x 44mm)
Regulated Output Voltage: 48V ±2V DC
Short Circuit Output Current: 14 mA
Residual Output Noise: -71 dBV
Frequency Response: 10-25,000 Hz
AC Input: 120V AC, 60 Hz, 2 W max.
External Power Supply: UL and CSA-approved AC power module with 6' (1.8 m) cable.
Dimensions (W x D x H): 5.12 x 2.36 x 1.73 in. (130 x 60 x 44mm)
