DBX AFS224 Feedback Eliminator
1/80th-Octave Filters. Live Filter Lift function.
Product rated 7.9 out of 10 (17 ratings)
- LIMITED TIME OFFER
- Receive via email a $25 Gift Certificate good towards your next purchase with us for each new DBX AFS224 purchase. Select with Free $25 Gift Certificate option.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
- Monster Cable 1/4 in. to 1/4 in.
- from $19.90
- Whirlwind MC20 Mic Cable
- from $10
- Gator Deluxe Rack Cases
- from $119
ADDITIONAL VIEWS:

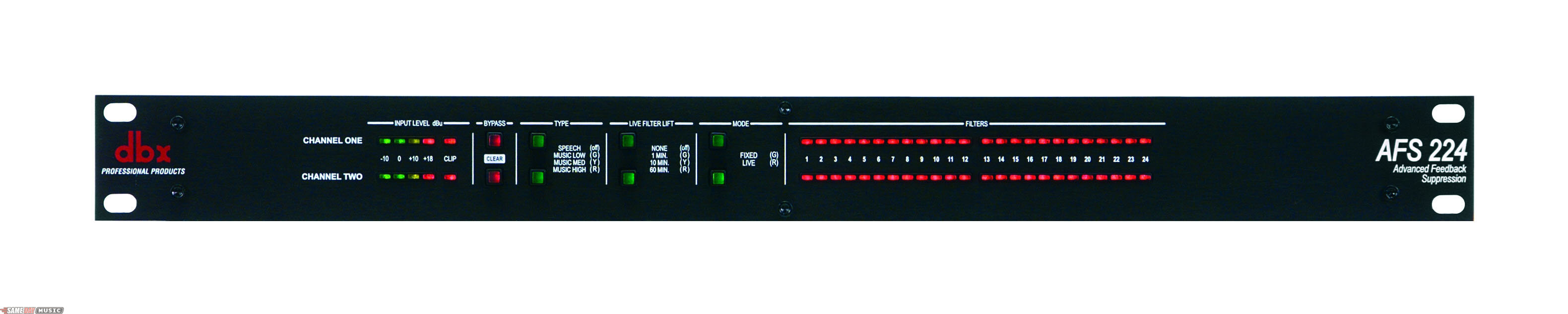

Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
DBX AFS224 Feedback Eliminator
Advanced technology and extremely narrow, 1/80th-octave filters put the AFS224 at the head of the pack! The concept of the Feedback Eliminator is not new but it took dbx to make it this musical, and usable for all pro audio applications. Where other Eliminators feature filters as wide as about 1/10th-octave, or increase the size of their filters the deeper they cut, the AFS adaptively changes the filter Q using as few filters as possible which makes more filters available to remove new feedback. Now your mix will retain all of its punch and sparkle - without the feedback! Live Filter Lift automatically handles feedback reduction, plus all filter resets. Add the AFS224 to your live rack & eliminate feedback problems!
Features
dbx's Patent-pending (Advanced Feedback Suppression) AFS (tm) technology
24 Programmable Filters per Channel
Stereo or Dual Independent Channel Processing
Live and Fixed Filter Modes
Selectable Filter Lift Times
Application-specific filter types include: Speech and Music Low, Med and High
Input channel Metering
24 LED per Channel Filter Metering
XLR and TRS Inputs and Output
The AFS 224 Advanced Feedback Suppression processor was designed to provide state-of-the art feedback elimination processing, while maintaining a simple and intuitive control interface. From the powerful DSP module to the no-nonsense user interface, the AFS 224 provides all the processing and control necessary for both installation and live use. The AFS 224 is an absolute must for any live sound application.
Ten and twelve filter feedback elimination processors have become the de facto standard, but the engineering staff at dbx have never been quite content residing in the neighborhood of the status quo. So, to raise the bar once again, they went out and developed a dedicated feedback suppression processor that offers up to 24 filters per channel with filter Qs up to 1/80 of an octave. To achieve these staggering numbers dbx utilized their patent-pending AFS technology that had previously only been available in the upper echelon line of products and made it available in this stand-alone processor, which takes all of the guesswork out of feedback removal. In addition to the plethora of feedback suppression filters available, the AFS 224 also offers selectable modes, live filter lift, and types of filtration, which are all readily available via the intuitive user interface front panel.
Advanced technology and extremely narrow, 1/80th-octave filters put the AFS224 at the head of the pack! The concept of the Feedback Eliminator is not new but it took dbx to make it this musical, and usable for all pro audio applications. Where other Eliminators feature filters as wide as about 1/10th-octave, or increase the size of their filters the deeper they cut, the AFS adaptively changes the filter Q using as few filters as possible which makes more filters available to remove new feedback. Now your mix will retain all of its punch and sparkle - without the feedback! Live Filter Lift automatically handles feedback reduction, plus all filter resets. Add the AFS224 to your live rack & eliminate feedback problems!
Features
dbx's Patent-pending (Advanced Feedback Suppression) AFS (tm) technology
24 Programmable Filters per Channel
Stereo or Dual Independent Channel Processing
Live and Fixed Filter Modes
Selectable Filter Lift Times
Application-specific filter types include: Speech and Music Low, Med and High
Input channel Metering
24 LED per Channel Filter Metering
XLR and TRS Inputs and Output
The AFS 224 Advanced Feedback Suppression processor was designed to provide state-of-the art feedback elimination processing, while maintaining a simple and intuitive control interface. From the powerful DSP module to the no-nonsense user interface, the AFS 224 provides all the processing and control necessary for both installation and live use. The AFS 224 is an absolute must for any live sound application.
Ten and twelve filter feedback elimination processors have become the de facto standard, but the engineering staff at dbx have never been quite content residing in the neighborhood of the status quo. So, to raise the bar once again, they went out and developed a dedicated feedback suppression processor that offers up to 24 filters per channel with filter Qs up to 1/80 of an octave. To achieve these staggering numbers dbx utilized their patent-pending AFS technology that had previously only been available in the upper echelon line of products and made it available in this stand-alone processor, which takes all of the guesswork out of feedback removal. In addition to the plethora of feedback suppression filters available, the AFS 224 also offers selectable modes, live filter lift, and types of filtration, which are all readily available via the intuitive user interface front panel.
TECHNICAL DESCRIPTION
Analog Inputs
Number of Inputs: 2
Connectors: Female XLR and 1/4 in. TRS
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 50kOhms, Unbalanced 25kOhms
Maximum input line level: +20dBu
CMRR: >40dB, typically >55dB @ 1kHz
Analog Outputs
Number of Outputs: 2
Connectors: Male XLR and 1/4 in. TRS
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced >120 Ohms, unbalanced >60 Ohms
Max Output Level: +20dBu
A/D Performance
Type: dbx Type IV conversion system
Dynamic Range: >113 dB A-weighted, >110 dB unweighted, 22kHz BW
Type IV dynamic range: >119 dB,A-weighted, 22kHz BW >117 dB, unweighted, 22kHz BW
A/D Conversion: 24 bit
Sample Rate: 48kHz
D/A Performance
Dynamic Range: 112 dB A-weighted, 109dB unweighted
D/A Conversion: 24 bit
System Performance
Dynamic Range: >109dB A-weighted, >106 dB unweighted, 22kHz BW
THD+N: 0.003% typical at +4dBu, 1kHz
Frequency Response: 20Hz - 20kHz, +/- 0.5dB
Interchannel Crosstalk: >80dB typical
Crosstalk input to output: >80dB
Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power Consumption: 9 Watts
Safety Agency Approvals:
UL 6500
IEC 60065
EN 55013
E 60065>
Number of Inputs: 2
Connectors: Female XLR and 1/4 in. TRS
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 50kOhms, Unbalanced 25kOhms
Maximum input line level: +20dBu
CMRR: >40dB, typically >55dB @ 1kHz
Analog Outputs
Number of Outputs: 2
Connectors: Male XLR and 1/4 in. TRS
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced >120 Ohms, unbalanced >60 Ohms
Max Output Level: +20dBu
A/D Performance
Type: dbx Type IV conversion system
Dynamic Range: >113 dB A-weighted, >110 dB unweighted, 22kHz BW
Type IV dynamic range: >119 dB,A-weighted, 22kHz BW >117 dB, unweighted, 22kHz BW
A/D Conversion: 24 bit
Sample Rate: 48kHz
D/A Performance
Dynamic Range: 112 dB A-weighted, 109dB unweighted
D/A Conversion: 24 bit
System Performance
Dynamic Range: >109dB A-weighted, >106 dB unweighted, 22kHz BW
THD+N: 0.003% typical at +4dBu, 1kHz
Frequency Response: 20Hz - 20kHz, +/- 0.5dB
Interchannel Crosstalk: >80dB typical
Crosstalk input to output: >80dB
Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power Consumption: 9 Watts
Safety Agency Approvals:
UL 6500
IEC 60065
EN 55013
E 60065>
CATALOG DESCRIPTION
Automated feedback elimination@Utilizes extremely narrow 1/80th-octave filters@Live, fixed, and application-specific filter modes
